XDEM Changlin 955N 5 5Ton New Wheel Loader
XDEM Changlin 955N 5 5Ton New Wheel Loader
Specifications
Brand Name :
Ninggong
Model Number :
955N
Certification :
IOS
Place of Origin :
China
MOQ :
1 unit
Price :
USD73000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 UNIT PER
Delivery Time :
45Days
load capacity :
5ton
Model :
955N
Bucket capacity :
3cbm
size :
8100*2800*3500mm
Operation weight :
16300KG
Description

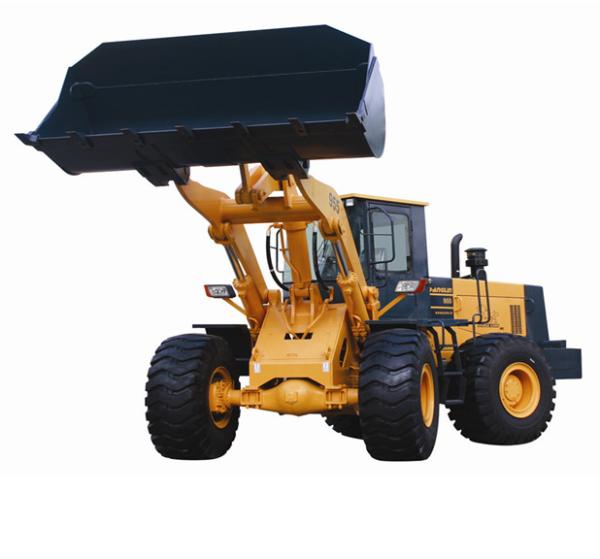

Changlin 5 Ton 955N Wheel Loader

Overall Dimension
1 Length(with bucket on ground) 8100(mm)
2 Width(to outside of wheels) 2800(mm)
3 Bucket width 2946(mm)
4 Height(To the top of the cab) 3500(mm)
5 Wheel base 3100(mm)
6 Tread 2200(mm)
7 Min. ground clearance 450(mm)
Main Technical Specification
1 Rated load 5000(Kg)
2 Operating weight 16300(1±5%)KG
3 Rated bucket capacity 3.0(m3)
4 Max. breakout force 160kN
5 Max. dump clearance 3091(mm)
6 Dump reach 1090(mm)
7 Dump angle at any position ≥450
8 Digging depth(with bucket bottom horizontal 165(mm)
9 Min. turning radius
(1) Outside of bucket 6575(mm)
(2) Outside of rear wheel 5970(mm)
10 Pivot angle frame 380
11 Oscillating angle of rear axle +13o
12 Lifting time of bucket ≤6.2(sec.)
13 Lowering time of bucket ≤3.8(sec.)
14 Dumping time ≤1.8(sec.)
15 Traveling speed(Km/h),2 forward and 1 reverse
(1) 1st gear(forward/reverse) 12.1/16.5
(2) 2nd gear forward 37.4
Diesel engine
1 Model Chinese Engine WD10G220E23
2 Type Direct injection. Natural Aspirate. Water cooling
3 Rated output 162(Kw)
4 Inter-bore of cylinder/stroke 126/130(mm)
5 Displacement of cylinder 9.726(L)
