High Quality Container Mast Forklift Gas Lifter 2ton 3 Ton 3.5ton Lpg Gasoline Forklift
High Quality Container Mast Forklift Gas Lifter 2ton 3 Ton 3.5ton Lpg Gasoline Forklift
High Quality Container Mast Forklift Gas Lifter 2ton 3 Ton 3.5ton Lpg Gasoline Forklift
High Quality Container Mast Forklift Gas Lifter 2ton 3 Ton 3.5ton Lpg Gasoline Forklift
High Quality Container Mast Forklift Gas Lifter 2ton 3 Ton 3.5ton Lpg Gasoline Forklift
High Quality Container Mast Forklift Gas Lifter 2ton 3 Ton 3.5ton Lpg Gasoline Forklift
High Quality Container Mast Forklift Gas Lifter 2ton 3 Ton 3.5ton Lpg Gasoline Forklift
High Quality Container Mast Forklift Gas Lifter 2ton 3 Ton 3.5ton Lpg Gasoline Forklift
Specifications
Brand Name :
XDEM
Model Number :
CPQYD30
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD15000/set
Supply Ability :
100 sets per month
Delivery Time :
30 working days
Packaging Details :
Nude packing
Model :
CPQYD30
Engine :
JAPAN MADE K21 K25
Mast :
3m duplex mast
Tire :
Pneumatic
Color :
Red, white, yellow, etc..
Warranty :
one year or 2000 working hours
Load Center :
500mm
Description
PRODUCT SPECIFICATIONS

High quality container mast forklift gas lifter 2 ton lpg gasoline forklift
low price forklift with K25 K21engine 3 ton diesel fork lift truck 3 ton forklift
3tons with propane engine forklift truck ready to ship gasoline Forklift New LPG Engine Hydraulic Forklift For sale
Automated 3.5ton forklift counterbalance forklift truck Gasoline lpg powered double fuel forklift
No
Item
Data
1
Model
CPQYD20
2
Rated capacity
2000kg
3
Transmission
China electric automatic transmission
4
Forks
1070mm,1220mm
5
Seat
Suspension seat, Safety Seat with belt
6
Mast
3000mm,3500mm,4000mm,4500mm,5000mm,5500mm,6000mm,7000mm
7
Tires
Pneumatic/ Solid
8
Engine
we offers a wide choice of engines,such as China engine, Japan made engine K21 K25 PSI and so on
9
Options
Can be equipped with side shifter, fork positioner, Paper roll clamp, bale clamp or other attachments to get higher work efficiency according to customer requirements.

Product Paramenters
Specification of 3Ton LPG & Gasoline Forklift
Main Information
1
Manufacturer
2
Model
Unit
CPQD30
3
Power type
LPG
4
Rated capacity
kg
3000
5
Load center
mm
500
6
Operator type
Drive in seat
Size
7
Max. lift height of mast with Load-backrest
mm
4262
8
Max.lift height of fork(standard)
mm
3000
9
Height of mast (standard)
mm
2065
10
Free lift height(standard)
mm
828
11
Height of Load-backrest
mm
1240
12
Distance from seat to overhead guard
mm
1000
13
overhead guard height
mm
2090
14
Length with fork/with out fork
mm
3752/2682
15
Front overhang
mm
479
16
Rear overhang
mm
495
17
Wheel base
mm
1700
18
The height of traction pin
mm
310
19
Min. ground clearance
mm
135
20
Overall width
mm
1225
21
The distance between forks
mm
1060/250
22
Tread(front /rear)
mm
1000/970
23
Min. Turning radius(outside)
mm
2400
24
Min. Turning radius(inside)
mm
200
25
Min. Intersecting aisle
mm
2380
26
Mast tilt angle
deg
6°/12°
27
Fork size
mm
1070X125X45
Performance
28

Speeds
Max.Drive speeds(with/without load)
km/h
18/19
29
Lifting speeds (with/without full load)
mm/s
440/480
30
Lowering speeds(with /without full load)
mm/s
450/500
31
Max. tractive force
KN
20/16
32
Max.grade ability (with/without full load)
%
20/20
Weight
33
Total weight
kg
4270
34
Weight Distribution full load (front/ rear)
kg
6543/727
35
Weight Distribution zero load(front / rear)
kg
1708/2562
Wheels and Tyres
36
Quantity of wheels
2x/2
37
Type of tyres
Pneumatic
38
Tires
Front
28X9-15-12PR
39
Rear
6.50-10-10PR
40
Driving Brake
Hydraumatic Pedal
41
Parking Brake
Mechanical manual
Control device for driving and transmitting
42
Battery
V/AH
12/80
43

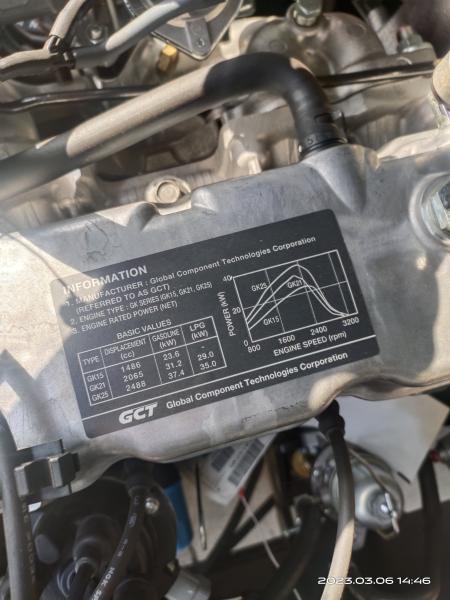

Engine (standard)
Model
JAPAN MADE K21 K25
44
Rated output
kw/rpm
47/2800
45
Rated torque
N.m/rpm
154/1800
46
No.of cylinder
4-90X86
47
Displacement
L
2.237
48
Fuel tank capacity
L
60
49
Number of speeds for transmission
2-2 Manual shifttruck/
1-1Power shift transmission
PRODUCT CONFIGURATION
Imported Japan made high power engine
Imported E-ATON control valve
Japan S-himadzu hydraulic pump and valvels
