Komatsu Excavator Adjuster Spring Disassembly Machine 200T Mobile Worktable Hydraulic Press Machine Track Pin Press
Komatsu Excavator Adjuster Spring Disassembly Machine 200T Mobile Worktable Hydraulic Press Machine Track Pin Press
Komatsu Excavator Adjuster Spring Disassembly Machine 200T Mobile Worktable Hydraulic Press Machine Track Pin Press
Komatsu Excavator Adjuster Spring Disassembly Machine 200T Mobile Worktable Hydraulic Press Machine Track Pin Press
Komatsu Excavator Adjuster Spring Disassembly Machine 200T Mobile Worktable Hydraulic Press Machine Track Pin Press
Komatsu Excavator Adjuster Spring Disassembly Machine 200T Mobile Worktable Hydraulic Press Machine Track Pin Press
Komatsu Excavator Adjuster Spring Disassembly Machine 200T Mobile Worktable Hydraulic Press Machine Track Pin Press
Komatsu Excavator Adjuster Spring Disassembly Machine 200T Mobile Worktable Hydraulic Press Machine Track Pin Press
Specifications
Brand Name :
XDEM
Model Number :
YM200T
Place of Origin :
China
MOQ :
1 set
Price :
USD4000-6000
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
1000 sets per month
Delivery Time :
10 working days
Packaging Details :
export package
Power Source :
Hydraulic
Voltage :
380V
Weight :
3550kg
Nominal force :
200T
Cylinder diameter :
800
Motor power :
7.5kW
Weight (KG) :
5000
Machine Type :
Hydraulic Press
Description

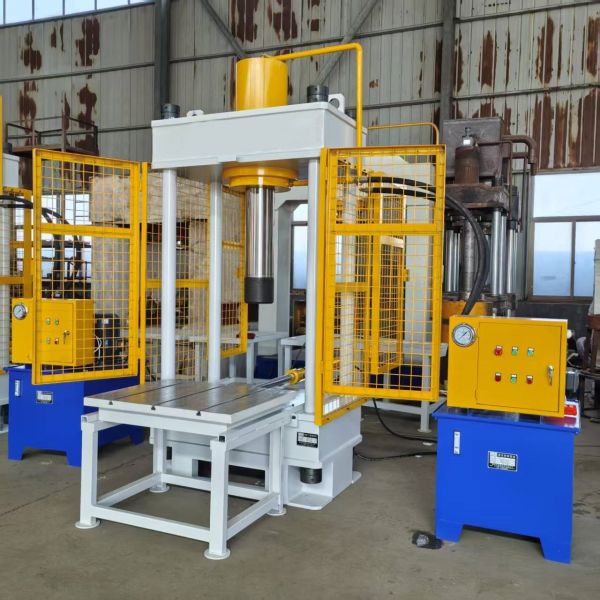

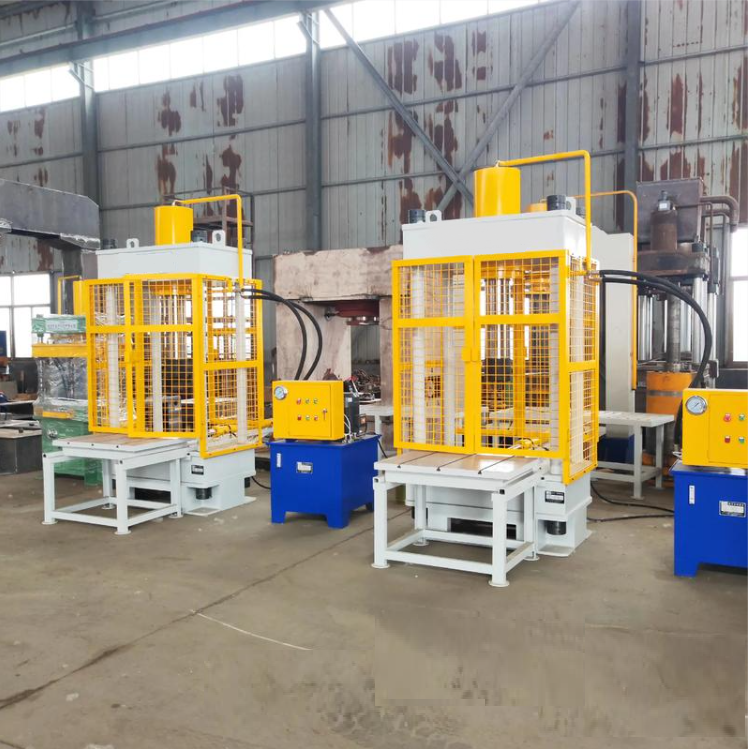

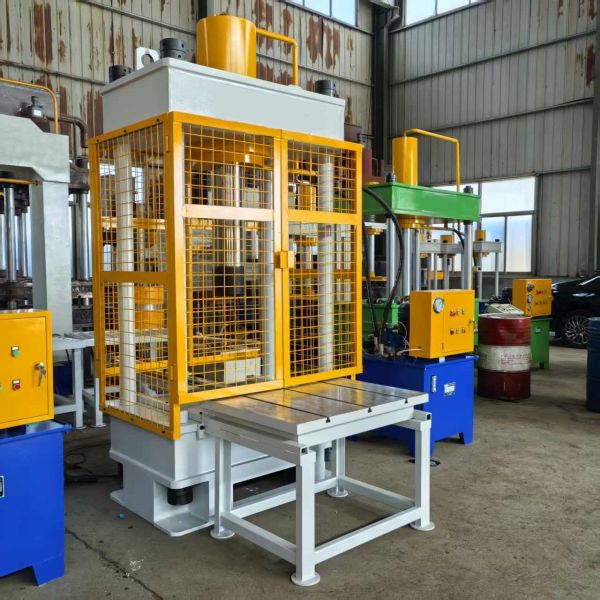

XDEM 200T Track Adjuster Spring Press Hydraulic Press


This machine is specially designed for the disassembly and installation of excavator track adjuster springs, relying on a hydraulic system to provide stable and controllable pressure, it can easily complete the compression and reset operations of the tension springs, solving the problems of manual disassembly and easy damage to components.
Typical structure
The main body is mostly a frame structure to ensure stability during operation, and some models are equipped with protective devices to prevent injury caused by spring reset;
Equipped with a hydraulic power unit, it can accurately adjust pressure and adapt to the specifications of tension springs for different models of excavators;
There is a dedicated spring positioning fixture that can quickly fix the tensioning device of the excavator track, improving work efficiency.
Applications
Widely used in equipment maintenance in excavator repair shops and construction sites, especially suitable for professional disassembly and maintenance of tension springs in large excavators, mining excavators and other models.

Main Parameters:

No. Item Unit YM200T YM315T
1 Nominal pressure KN 2000 3150
2 Rated pressure mpa 28 28
3 Travel mm 1000 1000
4 Max. opening mm 2200 2200
5 Min. opening mm 1200 1200
6 Nominal pressure of side cylinder KN 200 200
7 Side cylinder stroke mm 800 800
8 Effective area of workbench mm 1400*1200 1500*1200
9 Workbench thickness mm 140 160
10 Motor kw 7.5 15
11 Pump Ml/r 40 63
