Specifications
Brand Name :
XDEM
Model Number :
MDHB60
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
10000-50000
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per month
Delivery Time :
15 working days
Packaging Details :
Nude packing
Description
Product Description:

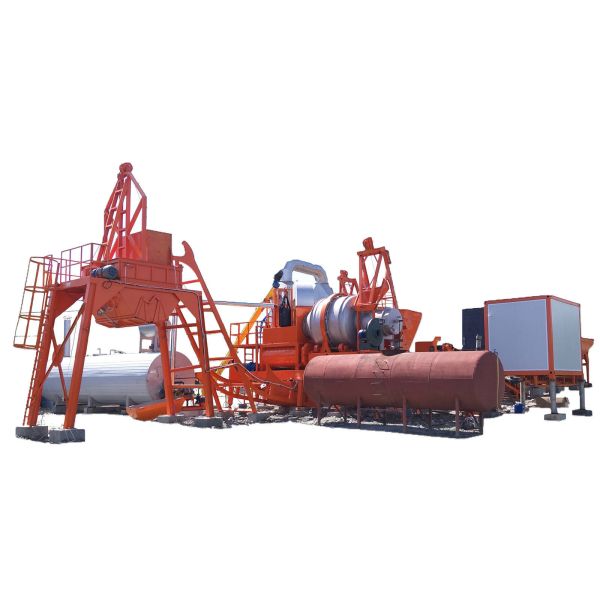

Mobile asphalt mixing plant can be categorized into two types, one is drum type(MDHB series) and the other is compulsory type (QLB series).

For drum type, we use drying drum to dry aggregates and mix them with bitumen. No ore powder will be used. It is usually used for small and low-level road construction.

For compulsory type, there is mixer to mix all the materials like stones, ore powder and bitumen. All materials will be weighed before being discharged into mixer to ensure the accuracy of the asphalt formula. Usually, it is used for high-standard road construction.

We now have mobile asphalt mixing plant with the capacity from 25tph to 100tph. Welcome to contact us for details and quotations.
XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity
MDHB series of mobile asphalt mixing plant
Features compared with QLB series of mobile asphalt mixing plant:
1. Cost saving;
2. Labour saving;
3. It is usually used for low-level road building, like country road.
Model
MDHB20
MDHB40
MDHB60
MDHB80
MDHB100
Production Capacity (T/h)
20
40
60
80
100
Mixing Type
Continuous
Continuous
Continuous
Continuous
Continuous
Dust Remove Effect (mg/Nm3)
≤100
≤100
≤100
≤100
≤100
Fuel Consumption (kg/t) (Oil)
5.5-7
5.5-7
5.5-7
5.5-7
5.5-7
Fuel Consumption (kg/t) (Coal)
10-13
10-13
10-13
10-13
10-13
Aggregate Weighing Accuracy(%)
±1.5
±1.5
±1.5
±1.5
±1.5
Bitumen Weighing Accuracy(%)
±1
±1
±1
±1
±1
Total Power (kw)
50
75
128
165
200

XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity QLB series of mobile asphalt mixing plant

Features compared with QLB series of mobile asphalt mixing plant:

1. Mixer and ore powder are used so the asphalt quality is better;
2. Bag house filter is used so the machine is more environment friendly;
3. It can be used for high-level road building, such as natioal road and expressway.
Model
QLB20
QLB40
QLB60
QLB80
QLB100
Production Capacity (T/h)
20
40
60
80
100
Mixing Type
batch type
Dust Remove Effect (mg/Nm3)
≤50
Fuel Consumption (kg/t) (Oil)
5.5-7
5.5-7
5.5-7
5.5-7
5.5-7
Fuel Consumption (kg/t) (Coal)
10-13
10-13
10-13
10-13
10-13
Aggregate Weighing Accuracy(%)
±1.5
±1.5
±1.5
±1.5
±1.5
Bitumen Weighing Accuracy(%)
±1
±1
±1
±1
±1
Total Power (kw)
50
75
128
165
200

XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High ProductivityXDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High ProductivityXDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High ProductivityXDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity

LB series of compulsory type of asphalt mixing plant has mixer. There are scales for all materials to ensure accuracy of the asphalt formula. Ore powder will be added to the mixture and all materials will be mixed in mixer. Usually, bag house filter is used to protect the environment. It is widely used for high-standard road like expressway, national highway etc.

Currently, we have stationary asphalt mixing plant with the capacity from 40tph to 320tph. Welcome to contact us for details and quotations
XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity
Model
LB750
LB1000
LB1200
LB1500
LB2000
Production Capacity (T/h)
60
80
100
120
160
Mixer Capacity (kg)
750
1000
1200
1500
2000
Dust Remove Effect (mg/Nm3)
≤20
≤20
≤20
≤20
≤20
Fuel Consumption (kg/t) (Oil)
5.5-7
5.5-7
5.5-7
5.5-7
5.5-7
Fuel Consumption (kg/t) (Coal)
10
10
10
10
10
Aggregate Weighing Accuracy (%)
±0.5
±0.5
±0.5
±0.5
±0.5
Filler Weighing Accuracy (%)
±0.25
±0.25
±0.25
±0.25
±0.25
Bitumen Weighing Accuracy (%)
±0.25
±0.25
±0.25
±0.25
±0.25
