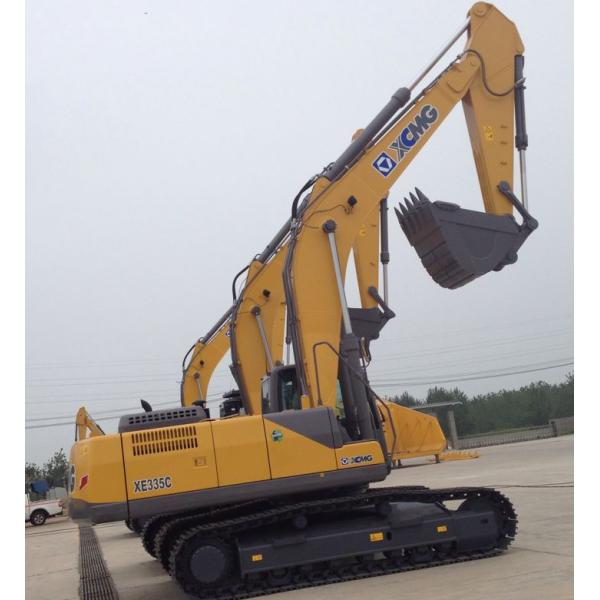

170kw Earth Solutions Excavating , 1900rpm 30 Ton Excavator
170kw Earth Solutions Excavating , 1900rpm 30 Ton Excavator
Specifications
Max. dumping height :
7135mm
operation weight :
30120kg
Max. digging height :
10100mm
Rated power/speed :
170/1900 kw/rpm
Engine Model :
C u m m ins QSB7-C215
Brand Name :
XCMG
Model Number :
XE300C
Certification :
ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD146500
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
200 UNIT PER month
Delivery Time :
30days
power :
170kw
Description

XCMG 30ton Crawler excavator good quality 30Ton XE300C crawler excavator


Technical parameters of XCMG XE300C Crawler excavator

Model Unit XE300C
Operating weight kg 30120
Standard bucket capacity m³ 1.35
Engine Engine Model /C u m m ins QSB7-C215
Direct injection / √
Four strokes / √
Water cooling / √
Turbo charged / √
Air to air intercooler / √
No. of cylinders / 6
Rated power/speed kw/rpm 170/1900
Max. torque/speed N.m 895/1700(N.M)
Displacement L 6.7
The main performance Travel speed km/h 5.2/3.1
Swing speed r/min 9.4
Max. gradeability / ≤35
Max.traction force kN 261
Max.Bucket digging force kN 187
Max.arm crowd force kN 130
Hydraulic system Main pump / 2 Plunger pump
Rate flow of main pump L/min 2×251
Max pressure of prime relief valve MPa 32.4/34.3
Max pressure of travel system MPa 34.3
Max pressure of swing system MPa 26.5
Max pressure of pilot system MPa 3.9
Oil capacity Fuel tank capacity L 520
Hydraulic tank capacity L 270
Engine lubrication L 20
Overall dimensions A Overall length mm 10645
B Overall width mm 3190
C Overall height mm 3410
D Overall width of upperstructure mm 2950
E Track length mm 4725
F Overall width of undercarriage mm 3190
G Crawer width mm 600
I Crawer gauge mm 2590
L Min.tail swing radius mm 3200
J Clearance under counter weight mm 1152
K Ground clearance mm 495
Working range A Max. digging height mm 10100
B Max. dumping height mm 7135
C Max. digging depth mm 7245
D 8inch horizonal digging depth mm 7045
E Max. vertical wall digging depth mm 4560
F Max. digging reach mm 10665
G Min. swing radius mm 3850
