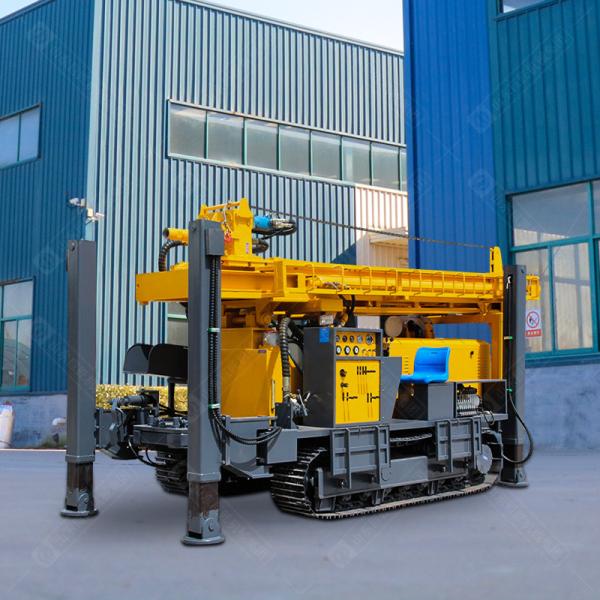

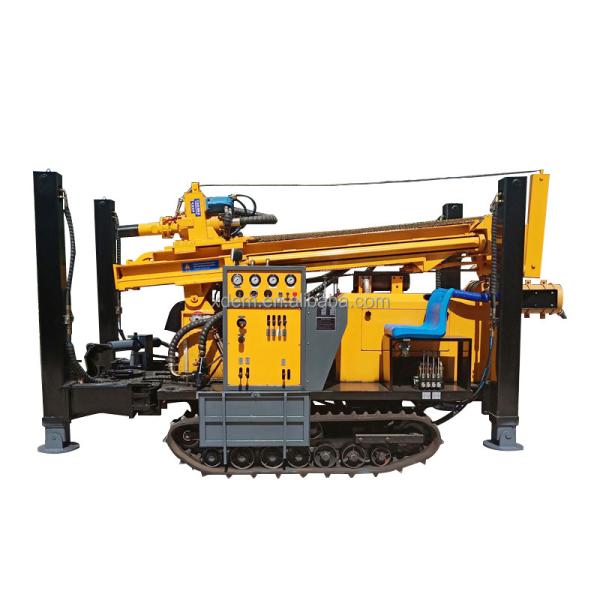

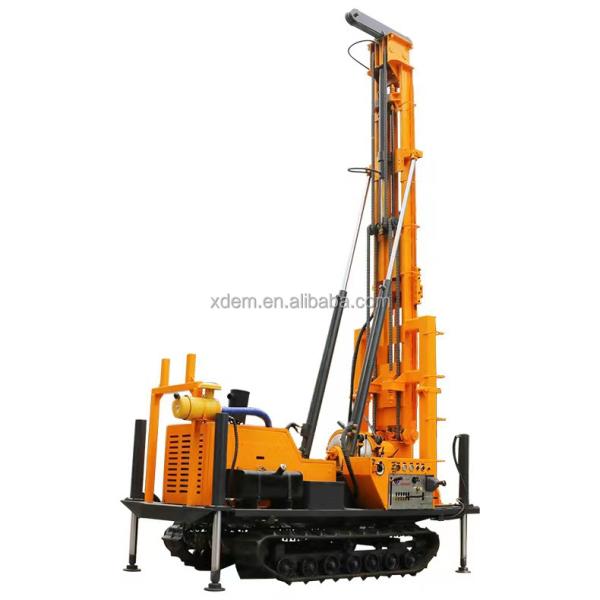

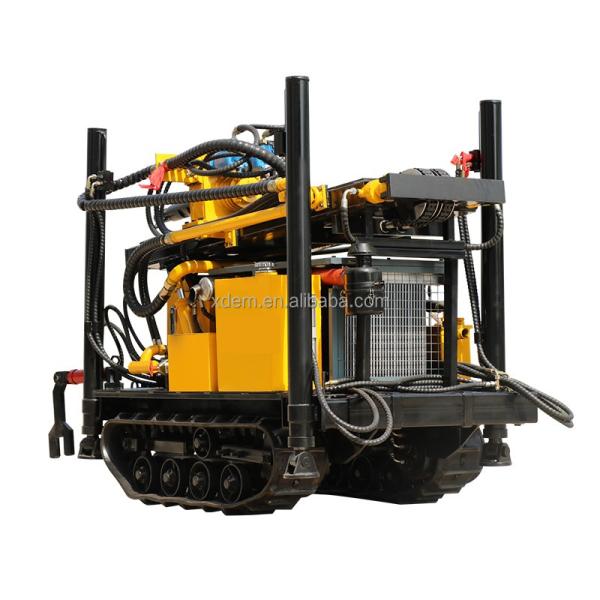

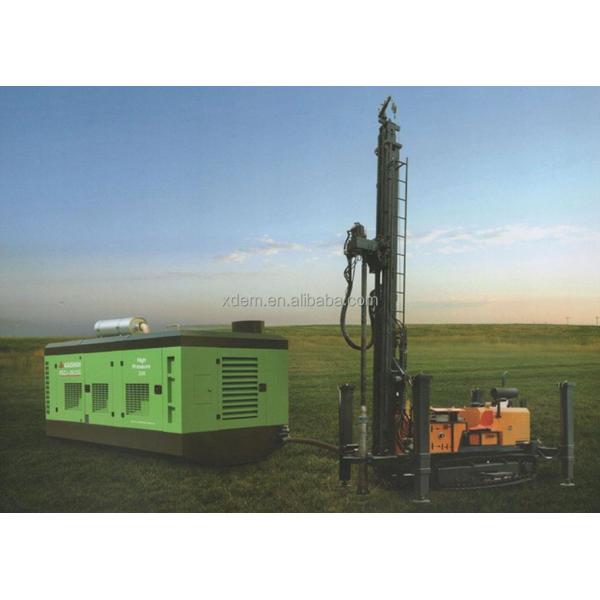

CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig
CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig
CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig
CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig
CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig
CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig
CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig
CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig
Specifications
Brand Name :
XDEM
Place of Origin :
Henan, China
Certification :
CE
Packaging Details :
Export package
Delivery Time :
15 working days
Payment Terms :
T/T
Supply Ability :
1000 sets/ months
Model Number :
CJDX-200
MOQ :
1 set
Price :
US$23000 1Set
Power Source :
Diesel Fuel
Drilling Depth :
0-200m
Drill hole diameter :
140-325mm
Dimension :
3850*1800*2450mm
Rod diameter :
76 89mm
Propulsion force :
7t
Weight :
5000 KG
Warranty :
1 Year
Lifting force :
15t
Working air pressure :
1.7-3.0Mpa
Air consumption :
17-31m3/min
Main machine power :
55kw
Travelling speed :
2.5km/h
Rotation speed :
40-160rpm
Description
Product Description
CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig
Specification
Parameters
Units
Parameter value
Drill hole diameter
mm
140-325
Drilling depth
m
200
Drill pipe diameter
mm
Φ76 Φ89
Drill pipe length
m
1.5, 2.0, 3.0
Length of one push
mm
3300
Propulsion force
T
7
Lifting force
T
15
Working air pressure
Mpa
1.7-3.0
Air consumption
m3/min
17-31
Main machine power
kw
55
Travelling speed
km/h
2.5
Climbing capacity
Max..
30 º
Rotation speed
rpm
40-160
Rotational torque
N.m
3300-4700
Overall dimensions
mm
3850*1800*2450
Overall machine weight
T
5
CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig
1. Strong off-road capability ,can easily cope with various complex work sites.
2. High efficiency. The drilling rig is equipped with hydraulic feeding system, double hydraulic motor power head, chain drive
and hydraulic cylinder propulsion, with high torque and high drilling efficiency.
3. Easy to operate. The operation handle is centralized, the layout is reasonable, safe and feasible. 2 persons can operate the
well.
4. Use of brand-name engines. High-power diesel engine Adopt domestic Yuchai, Weichai, Cummins and other high-quality brand
engines
5. Save time. Large tonnage winch, save time, improve operational efficiency Can pull 30-50m root pipe
CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig
CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig

Key Features:

  • Deep Hole Driller
  • Drilling Machinery
  • Geotechnical Drilling Machine
