JDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration Coring
JDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration Coring
JDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration Coring
JDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration Coring
JDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration Coring
JDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration Coring
JDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration Coring
JDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration Coring
Specifications
Brand Name :
XDEM
Model Number :
JDL300
Place of Origin :
Henan, China
MOQ :
1 set
Price :
30,000
Payment Terms :
L/C, T/T
Supply Ability :
50 Set/Sets per Month
Delivery Time :
10 days
Condition :
New
Warranty of core components: :
1 Year
Drilling Depth :
500m
Max. Drilling Dia. (mm): :
Φ350
Power model :
pneumatic/mud drilling
Motor power :
42kw
Weight :
4380 KG
Drill rod diameter :
Φ50/Φ76/Φ89/Φ102
Walking speed :
0~2 km/h
Rotational speed :
50~1020r/min
Description

Product Description:

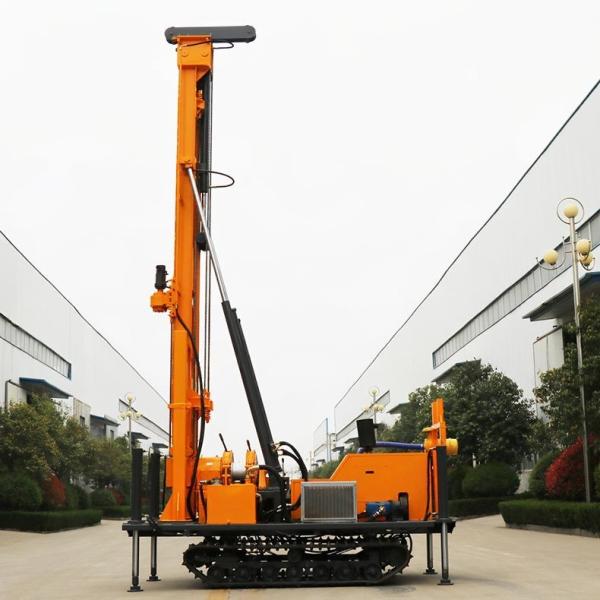

The JDL-300 water and air dual-purpose drilling rig is a mechanical top drive drilling equipment that integrates water drilling and air drilling. It effectively solves the problems of difficult air down-the-hole hammer drilling in soil layers and low construction efficiency of water drilling mud drilling in hard rock layers, gravel layers and pebble layers. The water and air dual-purpose drilling rig is suitable for various strata and is highly efficient and energy-saving in well drilling and core drilling in geological exploration.

Features:

1. The drilling rig can be equipped with a five-speed manual integrated transmission, hydraulic separation bearings, and full synchronizer gear shifting, which features high reliability and a long service life.

2. The drilling rig adopts a mechanical winch, which has a fast lifting speed and is convenient for handling accidents at the bottom of the well.

Parameters:

JDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration Coring

JDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration CoringJDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration CoringJDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration CoringJDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration CoringJDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration CoringJDL300 500m Water Well Drilling Rig Deep Hole Crawler Hydraulic Exploration Coring
