Agriculture Land Leveler And Grader Satellite Controlled For Farm
Agriculture Land Leveler And Grader Satellite Controlled For Farm
Agriculture Land Leveler And Grader Satellite Controlled For Farm
Agriculture Land Leveler And Grader Satellite Controlled For Farm
Agriculture Land Leveler And Grader Satellite Controlled For Farm
Agriculture Land Leveler And Grader Satellite Controlled For Farm
Specifications
Certification :
CE
Brand Name :
Xinyi
Model Number :
12PW
Place of Origin :
China
MOQ :
1
Price :
2900-5000
Payment Terms :
T/T
Supply Ability :
50000PCS/Month
Delivery Time :
10 days
Packaging Details :
Customizable
Model NO. :
12PW
Application Field :
Agriculture
Farming Policy :
Dry Cultivating Machinery
Power Source :
Tractor
Operation :
Soil Preparation Machinery, Fixed Operation
Traction Type :
Traction
Drive Type :
Tractor
Arbor Configuration :
Horizontal Axis
Color :
Red
Warranty :
1year
Guide Model :
Laser/Satellite
Working Width :
2.5/4m
Model :
12pw 2.5/4
Transport Package :
Iron Cages
Trademark :
Xinyi
Origin :
China
HS Code :
8432809000
Description

Product Description


Yucheng Xinyi Machinery Manufacturing Co., Ltd.
Product Technical Parameter

Name:Original Factory High Accuracy Land Grader Machine Satellite Land Leveler For Farm Use
A laser land leveler is a highly sophisticated and precision-engineered tool that harnesses the power of a laser beam to transform uneven fields into perfectly flat or uniformly sloped surfaces. At the heart of its operation lies the laser beam, which is emitted from a specialized transmitter. This transmitter, typically positioned at a strategic location within or around the field, projects the laser beam in a sweeping motion across the entire expanse of the area to be leveled. As the beam moves, it creates a virtual plane of light, acting as a precise and unwavering reference for the leveling process.
The receiver, carefully mounted on the leveling bucket, serves as the crucial link in this technological chain. Its primary function is to detect the exact position of the laser reference plane. Once detected, it sends a series of highly accurate signals to the control box, which acts as the brain of the operation. The control panel within the box is equipped with advanced algorithms and processing capabilities. It meticulously interprets the incoming signals and makes instantaneous decisions. Based on these interpretations, it controls the opening and closing of the hydraulic control valve. This valve, in turn, regulates the flow of hydraulic fluid, which directly influences the raising or lowering of the bucket. Through this intricate system of detection, signal transmission, and mechanical response, the laser land leveler is able to achieve the desired grade with remarkable precision.
This cutting-edge technology offers a multitude of benefits. By smoothing out the surface of the field to its average height with a precisely controlled degree of slope, it revolutionizes agronomic practices. The uniformity of the field ensures that water is distributed evenly during irrigation, preventing waterlogging in some areas and drought in others. This, in turn, leads to more efficient water conservation, as less water is wasted through runoff or evaporation. Additionally, the improved field conditions contribute to higher crop yields. Crops have a more consistent growing environment, with better access to nutrients and water, allowing them to thrive and produce abundant harvests. Moreover, the precision of the laser land leveler enables more efficient crop management, as it simplifies tasks such as planting, fertilizing, and harvesting, ultimately reducing labor costs and increasing overall productivity in agriculture.


Product Parameters:
Model 12PW-4.0 12PW-3.0A 12PW-2.8/3.5 12PW-2.5/3.2 12PW-2.5 12PW-1.5/2.2
Working Width 4 3 3.5 3.2 2.5 2.2
Control Mode SATELLITE CONTROL
Levelling Shovel Type Camber Beam Adiustable Camber Beam Fixed Straight Shovel
Type Size 10.0/75-15.3 31/15.5-15 10.0/75-15.3 10.0/75-15.3 10.0/75-15.3 23*8.50/12
Matched Power 154.4-180.5 102.9-154.4 102.9-154.4 102.9-154.4 80.4-102.9 50.4-80.9
Working Rate 0.33 0.4 0.33 0.267 0.23
Size 4800*2650*1700 4300*3120*1650 4000*2930*1350 4000*2614*1350 4000*2610*1350 2650*1600*1320
Weight 2600 1980 1480 1440 1150 1150

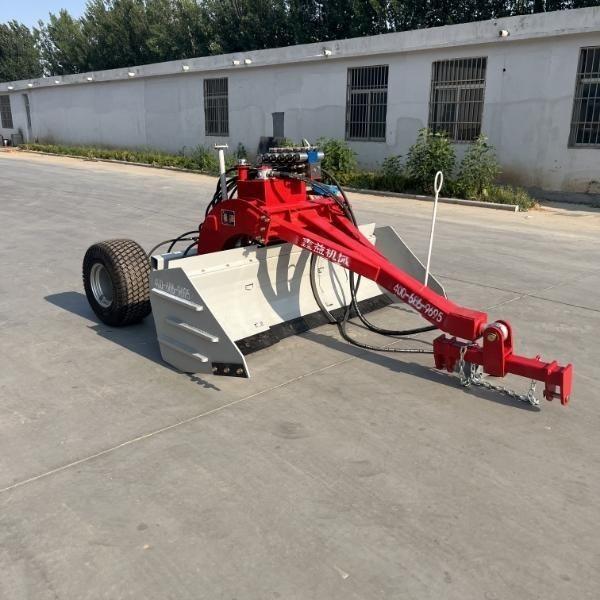

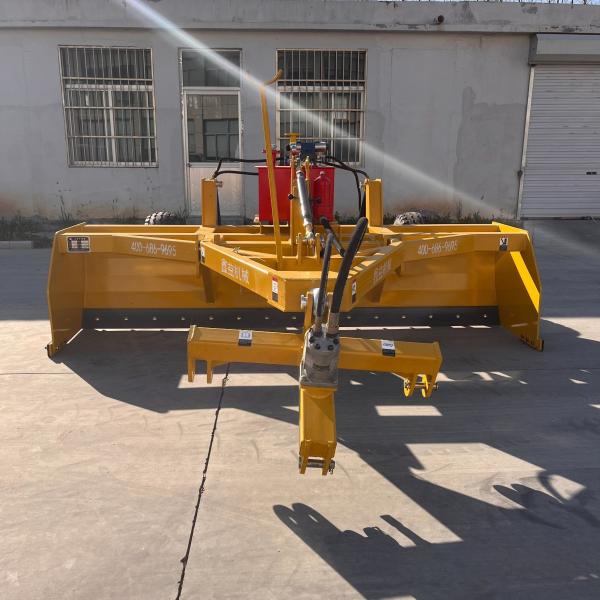

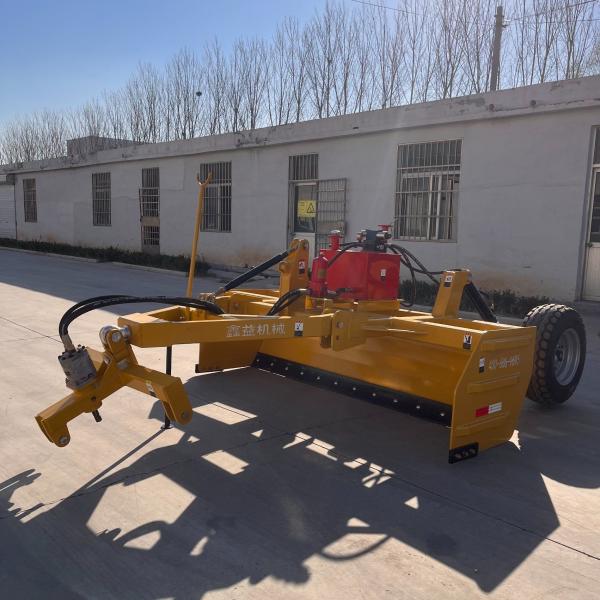

Detailed Photos

Agriculture Land Leveler And Grader Satellite Controlled For Farm
Agriculture Land Leveler And Grader Satellite Controlled For Farm
Agriculture Land Leveler And Grader Satellite Controlled For Farm

Agriculture Land Leveler And Grader Satellite Controlled For Farm
Agriculture Land Leveler And Grader Satellite Controlled For Farm
Agriculture Land Leveler And Grader Satellite Controlled For Farm

Packaging & Shipping

Agriculture Land Leveler And Grader Satellite Controlled For Farm
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers.

After Sales Service

1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .

2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.

3,We can also provide training services to different users.

FAQ

1. Q: Manufacturer or trading company?
A:We're a manufacturer. We have physical manufacturers.
2.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you
accordingly. Please understand we have a very wide product range, we don't usually offer full
products price list.
3. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T , L/C
Warranty: 1 year
4.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
5.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
6. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 25 years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service.
3. More agri machines for your choice.
4. More New products into your range to avoid price competition.
5. Larger quantity production and shipment.
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7 days.
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "XINYI" brand and "CE"ceitification.
11.Lower repair rate and bad review rate.
12. Have received unstinting support from the Chinese government.
