Specifications
Certification :
CE
Brand Name :
Xinyi
Model Number :
7C-3
Place of Origin :
China
MOQ :
2
Price :
US$ 200-4000 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 set/ per Month
Delivery Time :
6-15 work days
Packaging Details :
Iron Frame
Model NO. :
7C-3
Usage :
Transportation
Loading Weight :
3T
Structure :
Dump Trailer
Brake Type :
Air Brake
Axle Number :
2,4
Nosewheel Steering Mechanism :
Wheel Steering
Dumping Direction :
Hydraulic Dump
Tire Number :
2,4
Condition :
New
Carriage Dimension :
4000*2250*550
Overall Dimension :
5780*2250*2500
Rated Weight :
8000
Dead Weight :
2096
Type Size :
7.50-16/4
Break Form :
Air Brake
Matched Power :
60-80HP
Colour :
as Demand
Quantity/Gp :
10
Transport Package :
Conventional Packing
Specification :
3T
HS Code :
8701901190
Description
Farm Trailer Usage Tipping Hydraulic Dump Wear-Resistant With Tractor​

Product Description

Yucheng Xinyi Machinery Manufacturing Co., Ltd.

Product Technical Parameter

Name: Farm Trailer

The 7C series agricultural trailers cover a variety of models from 3 tons to 20 tons. They have a reasonable structure, beautiful appearance, economical and durable, and can be matched with a variety of tractors. They are suitable for the transportation and transshipment of grain, feed, building materials, sand and gravel, etc., and have strong transportation stability.

Main Feature
1) The bottom plate is 3mm thick, and the two sides of the plate are generally 1.5mm thick. You can customize thicker
2) The tires use the highest level, load, bow board use 11 layers, to ensure that the trailer load up to the standard.
3) For all the accessories, we choose the best, which can be bought from our factory.

Product Parameters:

Model

7CX-0.5/
0.5T Handle farm trailer

7C-1/
1T Handle farm trailer

7C-1.5 / 7CX-1.5

7C-2A / 7CX-2A

7C-2B / 7CX-2B

Carriage dimension
(mm)

1360*860*330

1800*900*320

2000*1000*450

2400*1200*450

2100*1500*460

Overall dimension
(mm)

2670*960*1140

2800*1300*1400

3060*1450*1700 /
3060*1450*1780

3500*1600*1660 /
3500*1600*1750

3320*1600*1750 /
3320*1600*1860

Rated weight(kg)

500

100

1500

2000

2000

Dead weight(kg)

132

198

335 / 450

365 / 469

430 / 495

Tyre size/quantity

4.00-12/2

6.00-16/2

6.50-16/2

7.00-16/2

7.00-16/2

Unload form

Manual assistance
(back dump)

No

No/Hydraulic dump(back)

Brake form

Machanical brake

Machanical brake

Impact/Air brake

Impact/Air brake

Impact/Air brake

Matched power(HP)

8-12

8-12

12-15

15-18

15-18

Quantity /GP

150/HQ

90

70

50 / 40

35 / 35

Model

7C-2.5 / 7CX-2.5

7C-3 / 7CX-3

7C-3 / 7CX-3

7C-3.5 / 7CX-3.5

7C-4 / 7CX-4

Carriage dimension
(mm)

2500*1500*460

3000*1600*460

3400*1700*460

3200*1800*460

3120*1920*460

Overall dimension
(mm)

3660*1600*1830 /
3660*1600*1860

4200*1700*1850 /
4200*1700*1950

4750*1800*1950 /
4750*1800*2060

4450*1900*1850 /
4450*1900*1950

4450*2000*1450

Rated weight(kg)

2500

3000

3000

3500

4000

Dead weight(kg)

480 / 600

550 / 695

844 / 1099

630 / 770

820 / 945

Tyre size/quantity

7.50-16/2

7.50-16/2

7.00-16/4

7.50-16/2

8.25-16/2

Unload form

No/Hydraulic dump
(back)

No/Hydraulic dump
(back)

No/Hydraulic dump
(left&right)

No/Hydraulic dump
(back)

No/Hydraulic dump
(back)

Brake form

Impact/Air brake

Air brake

Air brake

Air brake

Air brake/ Hand brake

Matched power(HP)

18-25

18-25

20-25

25-35

35-40

Quantity /GP

25 / 25

24 / 24

18 / 15

24 / 20

24 / 20

Model

7C-4 / 7CX-4

7C-5 / 7CX-5

7CX-5

7C-6 / 7CX-6

7C-8 / 7CX-8

7CX-8

Carriage dimension
(mm)

3800*1700*460

4000*2150*550

4000*2150*550

4500*2150*550

5500*2150*550

4000*2150*550

Overall dimension
(mm)

5250*1800*2050 /
5250*1800*2150

5780*2250*2200/
5780*2250*2320

5780*2250*2320

6300*2250*2380/
6300*2250*2500

7300*2250*2380/
7500*2250*2380

5780*2250*2380

Rated weight(kg)

4000

5000

5000

6000

8000

8000

Dead weight(kg)

1155 / 1450

1457 / 1750

1880

1670 / 2060

2180 / 2730

2096

Tyre size/quantity

7.50-16/4

8.25-16/4

8.25-16/4

9.00-16/4

7.50-16/8

7.50-16/8

Unload form

NO / Hydraulic
dump( left & right )

NO / Hydraulic
dump( left & right )

Hydraulic
dump(left,right and
back)

NO / Hydraulic
dump( left & right )

NO / Hydraulic
dump( left & right )

Hydraulic
dump(left,right and
back)

Brake form

Air brake

Air brake

Air brake

Air brake

Air brake

Air brake

Matched power(HP)

35-40

40-50

45-55

50-65

60-80

60-80

Quantity /GP

15 / 15

10/10

10

10

10

10

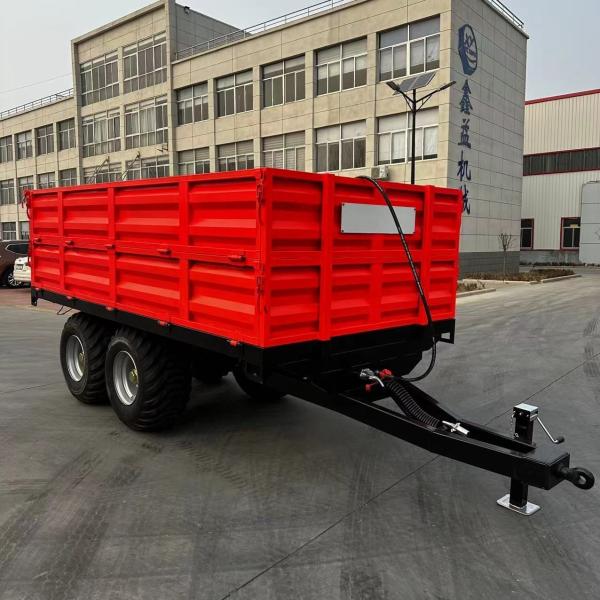

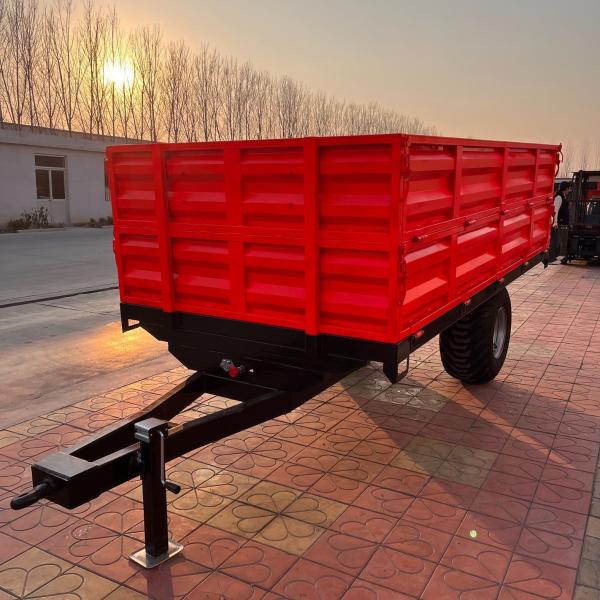

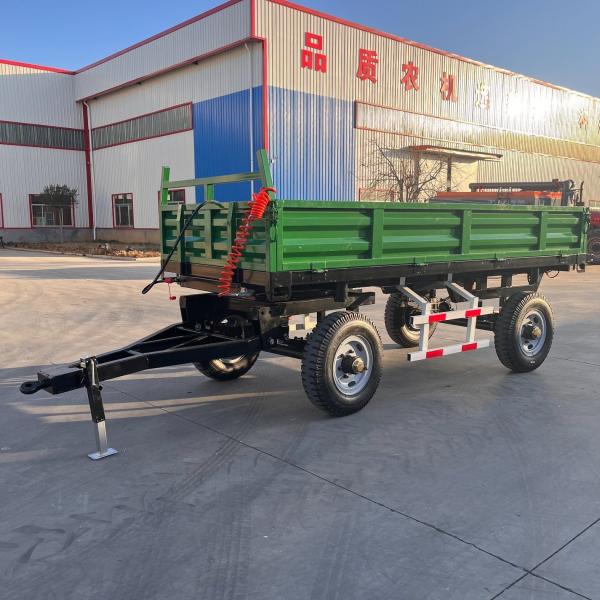

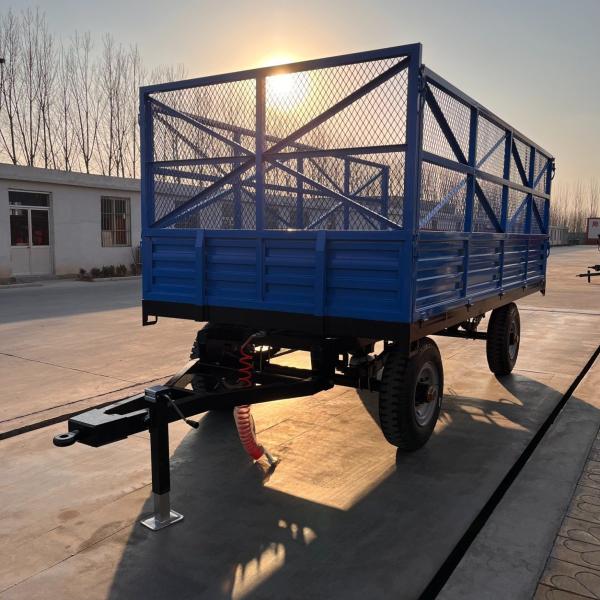

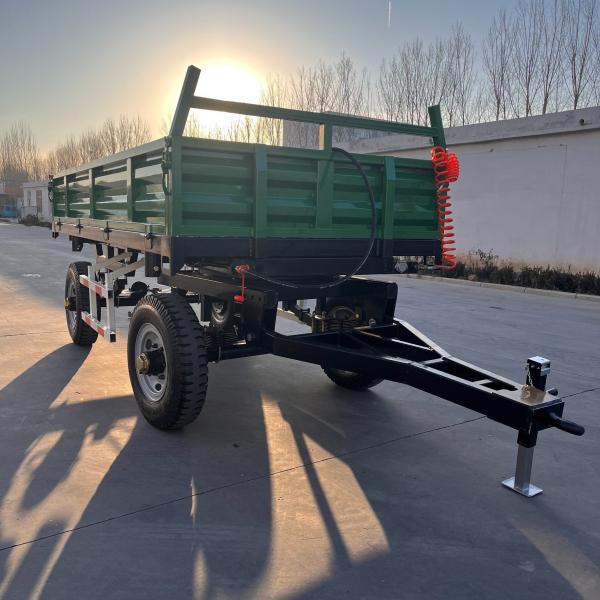

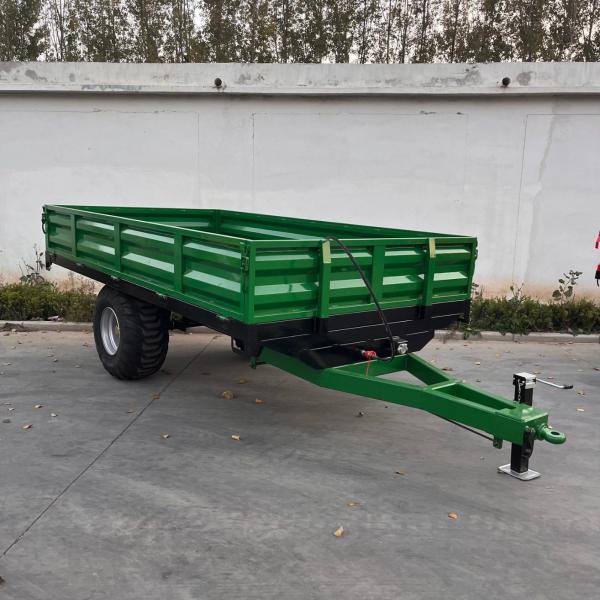

Detailed Photos


Packaging & Shipping

Normal packing or According to your requirement.

Safe, complete and fast delivery of goods to customers.

Company Profile

Our Company :

Business type

Manufacturer

Location

Yucheng, Shandong,China

Year Established

2005

Occupied area

50 Acres

Company certification

CE, ISO9001

Main product

Disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter ,plowing blade, plough blade, soil-loosening shovel and so on.
With good quality and excellent performance, our products are annually exported to countries around the world, and we have gained absolute trust from our customers.

More Products

After Sales Service


1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .

2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.


3,We can also provide training services to different users.

FAQ

1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T , L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
5. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 25 years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service.
3. More agri machines for your choice.
4. More New products into your range to avoid price competition.
5. Larger quantity production and shipment.
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7 days.
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "XINYI" brand and "CE"ceitification.
11.Lower repair rate and bad review rate.
12. Have received unstinting support from the Chinese government.

If you are interested in our products, feel free to contart me.
