Plastic Film Greenhouse Roll Up Motor For Window Motor With Crepper

Product Description

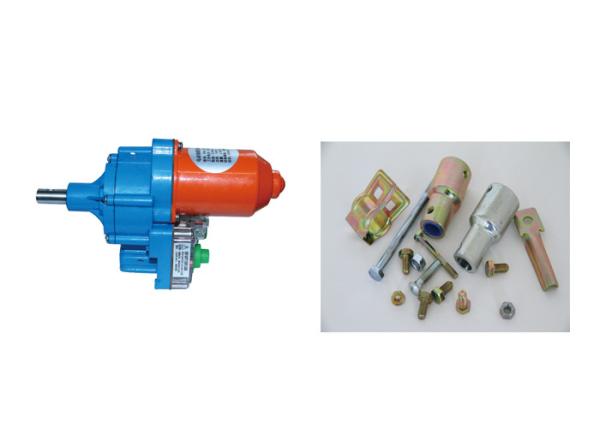

The electric film rolling device is used to open and close the side window and the top window of the plastic film greenhouse. It replaces the traditional manual film rolling device to realize the automatic control of fast rolling, film unwinding and greenhouse environment. The length of the large roll film is 100m, and the driving shaft adopts a thin-wall galvanized pipe of Φ25 * 1.5. It has the characteristics of light weight, large output torque, self-locking output, high stroke adjustment accuracy, large adjustment range, rain resistance, anti-condensation, and low power consumption. It is suitable for use in different climate conditions and is a good choice for modern solar greenhouses. select.The utility model is used for opening and closing side windows and top windows of a plastic film greenhouse. It replaces the traditional manual film rolling device, and realizes automatic control of fast film rolling, film ejection and greenhouse environment. The length of the large roll film is 100m, and the transmission shaft adopts Φ25 * 1.5 thin-wall galvanized pipe. It has the characteristics of light weight, large output torque, self-locking output, high stroke adjustment accuracy, large adjustment range, rain resistance, anti-condensation, and low power consumption. Suitable for use in different climate conditions, is a good choice for modern solar greenhouses. select.

Input power: 60w

Working voltage: DC24v

No-load speed: 4

High current: 3.5A

Large output torque: 60Nm

Film width: ≤4m

Film length: ≤100m

Stroke adjustment accuracy: 3mm or less

Z dimension: 239mm × 102mm × 131mm

Machine weight: 2.6Kg

Advantage

1. The name of this design product: electric film rolling device.

2. Use of this design product: for the collection and release of agricultural greenhouse films.

3. The main points of this design: the shape of the product.

4. The picture or photo that best embodies the main points of this design: stereogram.

5. Bottom view is not common. Omit bottom view.
