Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Specifications
Brand Name :
AFP
Model Number :
Glossy & Matte
Certification :
FDA, EN 71-3, CPSIA, REACH
Place of Origin :
Fujian, China
MOQ :
2 Tons (Mixed roll width accepted)
Price :
USD2355.00/Ton ~ USD2588.00/Ton
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000 Tons per month
Delivery Time :
15 - 25 working days
Packaging Details :
1-One roll one carton with plastic caps protection; 2-Tens of rolls a pallet; 3-Ten pallets a 20FCL
Type :
Thermal Laminating Film Roll
Softness :
Soft
Thickness :
15micron, 18micron, 20micron, 23micron, 25micron
Transparent :
Transparency
Material :
BOPP + EVA
Roll Size :
350mm*3000m, 445mm*3000m, etc.
Corona Treatment :
Double sides, over 42 dynes
Paper Core :
1 inch (25.4mm), 3"(76mm)
Technology :
Multiple Extrusion
Usage :
Printed Paperboard or Paper Laminate
Description
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
FDA Quality Thermal Laminating Film Roll

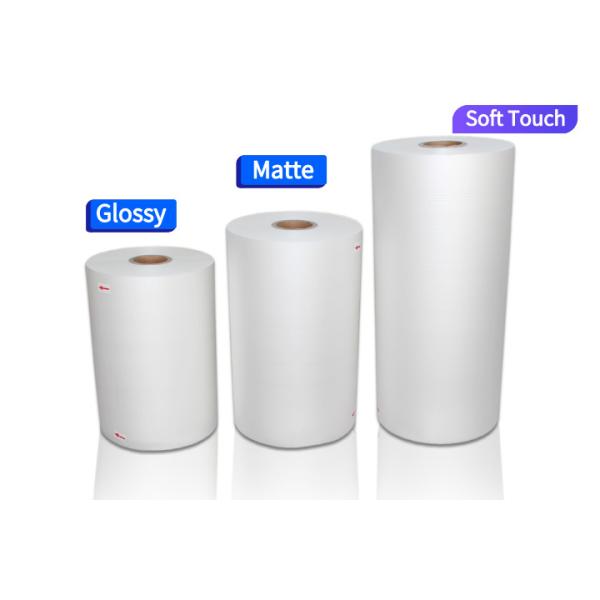

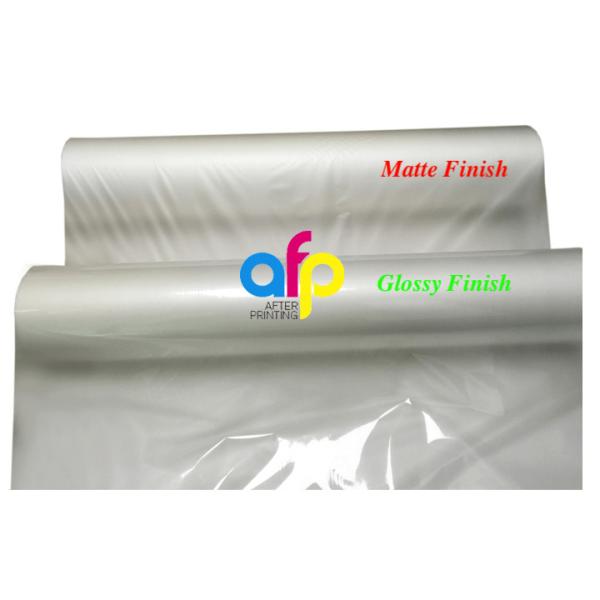

Thermal Laminating Film Roll is used to laminate printed paper or paperboard by heating the coated EVA via roll laminator machines. Available in two finishings: Glossy (also called Bright or Shine) and Matte (also called Dull or Matt), both providing clear and transparent results.

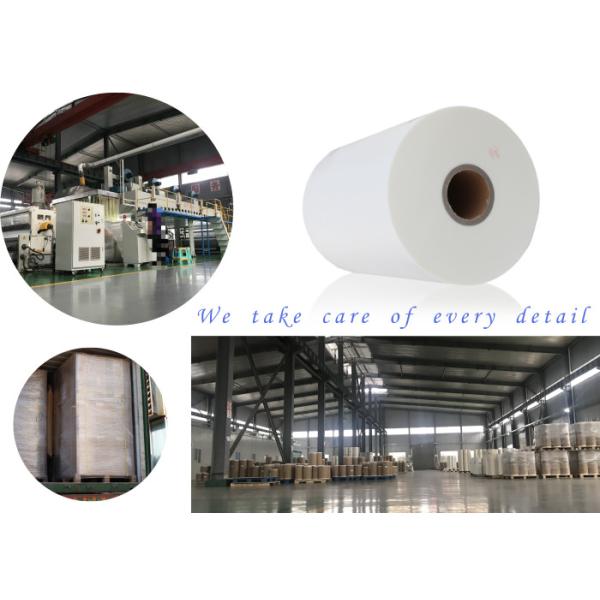

As a professional thermal laminating film roll manufacturer and supplier established in 2008, we operate 8 high-speed co-extrusion coating lines with a production capacity of 1,000 tons per month. Our products have passed certifications including FDA, RoHS, REACH, and EN 71-3.

Thermal laminating film roll is also known as hot laminating film roll, heat laminating film roll, or dry laminating film roll, distinguishing it from cold or wet laminating alternatives.

Product Specifications Overview
  • Thickness: 15micron to 30micron
  • Roll width: 305mm (12"), 457mm (18"), 635mm (25"), etc.
  • Roll length: 300m, 2000m, 3000m, 4000m, etc.
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Applications
  • Leaflets
  • Brochures
  • Documents
  • School paper
  • Shopping bags
  • Textbook covers
  • Cosmetics boxes
  • Sweet boxes and diaries
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Product Data Sheet
Specifications AFP-L18 AFP-L21 AFP-L25 AFP-L25 AFP-Y20 AFP-Y25 AFP-Y27
Type Glossy Glossy Glossy Glossy Matte Matte Matte
Thickness - BOPP 12micron 12micron 12micron 15micron 12micron 15micron 15micron
Thickness - EVA 6micron 9micron 13micron 10micron 8micron 10micron 12micron
TOTAL 18micron 21micron 25micron 25micron 20micron 25micron 27micron
Yield - m²/kg 61.275 52.247 43.668 43.956 56.433 45.147 41.615
Yield - kg/m² 0.0163 0.0191 0.0229 0.0228 0.0177 0.0222 0.024

Customized thickness combination available (15 micron to 30 micron, glossy and matte)

Price by weight or square meter available

Additional Specifications

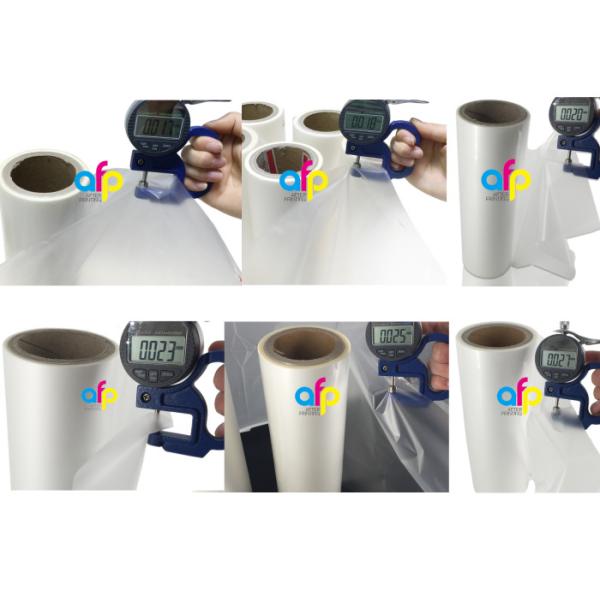

  • Thickness Tolerance: ±1μm (micron)
  • Roll Width: from 180mm to 1880mm
  • Roll Length: from 300m to 4000m
  • Joint: ≤1
  • Core Size: 1inch (25.4mm), 3inch (76.2mm)
  • Corona Treatment: Single or Double, ≥ 38dyne
  • Shelf Life: 9 months
  • MOQ: 2 tons (mixed width available 500mm,600mm,700mm etc.)
Operation Guidance
  • Compound Temperature: 85℃ - 105℃ (185℉ - 221℉)
  • Compound Pressure: 10-18 mpa
  • Compound Speed: 10-60m/min
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Manufacturing Process
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Raw Material Inspection

BOPP Film, EVA (TOTAL E182L, DUPONT)

Adhesion Coating

Symmetrical thickness, Strong surface tension

Quality Testing

Corona treatment, Peel strength

Splitting & Rewinding

Precise roll measure, Smooth surface

Packaging & Shipping
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Roll Body

Clear plastic bubble film, Label outside

Overlayer Carton

Five layers corrugated box, Protective plastic cap

Packaging Pallet

Corner protection, Strongly stretched

Container Loading

Dunnage bag used, No dropping

Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
Document Downloads
Product Data
BOPP Thermal Lamination Film Data Sheet.pdf
Certificates
CERTIFICATE of REACH SVHC.pdf
CERTIFICATE of FDA n CPSIA.pdf
CERTIFICATE of EN 71-3.pdf Glossy / Matte Finishing Thermal Laminating Film Roll 23micron 25micron
