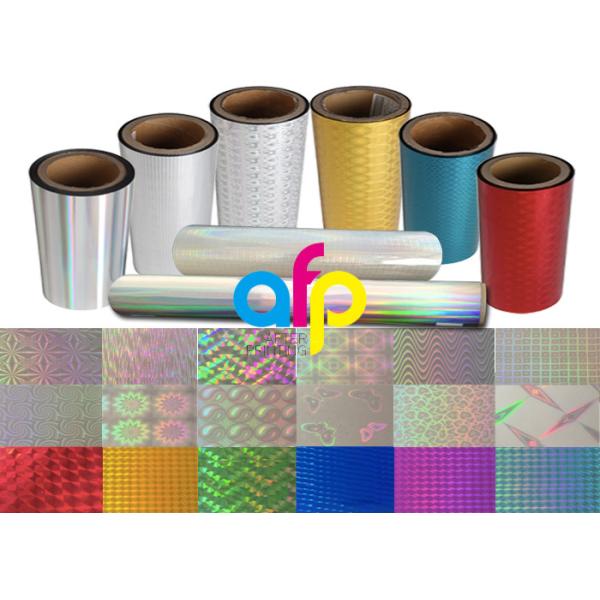

Flexible Packaging BOPP Holographic Film Roll
Available in sizes: 280mm×3000m, 445mm×3000m
Product Overview
Holographic Film Roll for Flexible Packaging, Printing, Gift-wrap, Lamination, and Stickers
Technical Specifications
| Parameter | BOPP | PET |
| Base Film | 12 micron | 15 micron |
| EVA Coating | 8 micron | 10 micron |
| Total Thickness | 20 micron | 25 micron |
| Yield | 45,192 sqm/MT | 32,895 sqm/MT |
| Weight | 0.0221 kgs/sqm | 0.0304 kgs/sqm |
Available Thickness: 20 micron to 38 micron (customized compositions available)
Width: 200mm to 1200mm
Length: 2000m to 4000m
Tolerance: ±1 micron
Paper Core: 76mm (3 inch), 50.8mm (2 inch), 25.4mm (1 inch)
Corona Treatment: Single or double sides, over 40 dynes
Lamination Parameters
Compound Temperature: 85℃-110℃ (185℉-230℉) for BOPP, 90℃-150℃ (194℉-302℉) for PET
Compound Pressure: 10-18 MPa
Compound Speed: 10-60 m/min
Design Features
Holographic Film makes packaging outstanding and distinguished with:
- Patterns: Over 150 holographic designs available
- Colors: Custom colors available upon Pantone matching
- Appearance: Transparent, silver, iridescent, and rainbow effects
Note: Both cold (without glue) holographic film and thermal (coated with glue) holographic film available
Material: BOPP or PET Film + EVA
Thickness: 20 micron to 26 micron
Roll Width: 200mm to 1480mm
Roll Length: 2000m to 4000m
Product Benefits
- Even coating distribution for consistent results
- Clear, sharp images with bright, vibrant colors
- Excellent adhesion properties and visual effects
- Wide application range for various substrates
Applications
Widely used for plastics-plastics lamination or paper-plastics lamination in:
food packaging, pharmaceutical packaging
- Labels, commodity packaging, gifts, Christmas garlands
- Electronic shielding bags, explosion-proof film for car windows
- Building decoration and various printing and packaging sectors
Classification by Material: PET, BOPP, PVC, and PA
Classification by Function: Holographic packaging film, colorful packaging film, matte colorful packaging film, sealable holographic packaging film, hologram hollowed-out film, and holographic anti-fake label
Common Uses
Holographic Thermal Laminating Film has a wide range of applications, including:
- Books, posters, presentation folders, labels, shopping bags
- POP signs, documents, book covers, ID cards, licenses
- Antigraffiti coatings, board making, write on/wipe off calendars
- Photographs, albums, drawing paper, advertisements
- Digital printing, show boards, and exterior coatings for wrapping boxes or bags for food, cosmetics, gifts, liquor, etc.
Customer Feedback
All feedback comes from customers who completed sample testing or are using our products:
Frequently Asked Questions
About Samples
- Samples for testing are available free of charge
- Standard sample size: 400mm × 100m/200m rolls
- Custom sizes available upon request
- Freight costs for sample delivery are borne by receiver
- Freight costs are refunded by deducting from subsequent orders
- Prepaid shipping recommended for cost savings
Production Capacity
- 5 coating lines in operation
- 20-day delivery for 40-foot container orders
- 850 metric tons monthly production capacity
- Thickness range: 15 micron to 30 micron
- Roll width: 180mm to 1880mm
- Roll length: 2000m to 6000m
- Reel outer diameter: 240mm to 380mm (depending on length and width)
- Reel inner diameter: 25.4mm (1 inch) or 76mm (3 inch)
After-Sales Service
- 12-month product warranty
- Equivalent compensation provided for any quality issues
Packaging & Shipping
- One roll per carton for individual protection
- Multiple rolls palletized for bulk shipments
- 10-12 pallets per 20-foot container (approximately 13 metric tons)
- 20-22 pallets per 40-foot container (approximately 25 metric tons)
- Shipping ports: Xiamen, Shanghai, Ningbo
