Specifications
Brand Name :
AFP
Model Number :
Matte Lamination Film
Certification :
SGS, BV,
Place of Origin :
Fujian, China
MOQ :
2 Tons (Mixed roll widths accepted)
Price :
USD 2230.00/Ton ~ USD2465.00/Ton
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
850 Tons per month
Delivery Time :
15 - 25 working days
Packaging Details :
1-One roll one carton with plastic caps protection; 2-Tens of rolls a pallet; 3-Ten pallets a 20FCL
Material :
BOPP/PET + EVA
Type :
Matte
Softness :
Soft

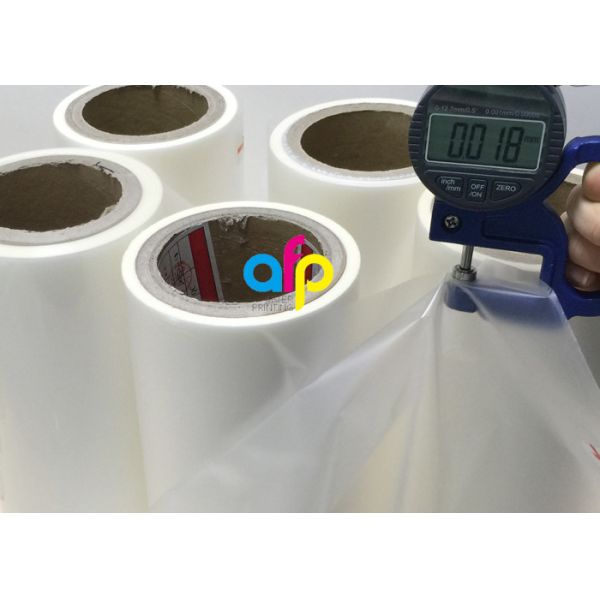

Thickness :
from 17micron to 250micron
Roll Size :
381mm*2000m, 445mm*3000m, 600mm*4000m, etc.
Corona Treatment :
Single or Double sides, over 38 dynes
Paper Core :
1inch (25.4mm), 3inch (76mm)
Technology :
Multiple Extrusion
Description
PET Base BOPP Laminating Roll Film, Multiple Extrusion Clear Thermal Laminate Roll
BOPP and PET Base Transparent Finish Matte Lamination Film for Thermal Lamination
Item BOPP and PET Base Transparent Finish Matte Lamination Film for Thermal Lamination
Material BOPP/PET + EVA
Roll Width from 180mm to 1880mm
Thickness from 17micron to 250 micron
Roll Length from 300m to 6000m
Core Size 1 inch (25.4mm), 3 inch (76.2mm)
Corona Treatment Single or Double
Joint ≤1
Surface Tension up to 42 dynes
MOQ 2 tons
Shelf Life 12 months
Application Textbook Cover, Brochures, Leaflets, Sweet Boxes, Cosmetics, Shopping Bag, Diaries
Application Guidance
Parameter BOPP Base PET Base
Compound Temperature 85℃ ~ 110℃ (185℉ ~ 230℉) 90℃ ~ 150℃ (194℉ ~ 302℉)
Compound Pressure 10 ~ 18 mpa 10 ~ 18 mpa
Compound Speed 10 ~ 60 m/min 10 ~ 60 m/min

BOPP and PET are two popular base transparent finish films for thermal lamination film. BOPP matte lamination film is mainly used for paper finishing lamination, while PET matte laminating film also supports printing process on the PET base film. Contact us to confirm the suitable base film for your specific requirements.

PET Base BOPP Laminating Roll Film , Multiple Extrusion Clear Thermal Laminate Roll

Compared with glossy lamination film which gives a shiny appearance for final prints, matte lamination film provides a white appearance on final prints. In addition, matte thermal lamination film performs well with UV varnish and hot stamping processes.

Packaging & Shipping
  • One roll matte lamination film per carton
  • Tens of rolls of thermal lamination film per pallet
  • 10 to 12 pallets loaded into 1*20FCL (approximately 13MTs)
  • 20 to 22 pallets loaded into a 40 feet container (approximately 25MTs)
  • Seaport: Xiamen, Shanghai, Ningbo
What is Thermal Lamination Film?

Thermal lamination film is produced by multi extrusion coating lines. It consists of two layers: one plastic film layer (primarily BOPP or PET film) and one adhesive glue layer (EVA). Thermal Lamination Film is also called dry, hot, or heat lamination film.

Where is Thermal Lamination Film Used?

Printing houses typically use BOPP Thermal Lamination Film rolls for commercial and school printings. It can also be used for graphic arts large format applications. The transparent film lamination, available in bright/shine/glossy or matte/dull finishes, is heated as protection on paper covers. Sometimes it's referred to as paper lamination film used by heating EVA adhesive glue onto paper substrates.

Specific applications of BOPP Thermal Laminating Film Roll include:

  • Textbook covers
  • Brochures
  • Leaflets
  • Sweet boxes and diaries
  • Shopping bags
  • Cosmetics boxes
PET Base BOPP Laminating Roll Film , Multiple Extrusion Clear Thermal Laminate Roll
How to Use Thermal Lamination Film?

Lamination process involves joining two or more layers to protect prints. A hot laminator (thermal/heat/dry lamination roller machine) is required to use Thermal Lamination Film by melting its EVA adhesive onto paper surface. During the process, the film passes over a heated roller and, under reasonable pressure, sticks to the paper. This process is easy to use and can be done at home for small applications. Sometimes referred to as heat lamination, dry lamination, or hot lamination.

FAQ on Matte Lamination Film
About Samples
  • Samples for testing are available and free
  • Freight for sample delivery is at receiver's side
  • Freight costs will be refunded by deducting from the next order automatically
  • For cost savings, we recommend prepaid shipping instead of collect
About Capacity
  • 5 coating lines
  • 20 days delivery for a 40 feet container
  • 850 tons per month production capacity
  • Thickness from 17micron to 250 micron
  • Roll width from 180mm to 1880mm
  • Roll length from 2000m to 6000m
  • Reel Outer Diameter: 240mm to 380mm (depending on reel length and width)
  • Reel inner diameter: 25.4mm (1 inch) or 76mm (3 inch)
About Responsibility and After-Sale Service
  • 9 months warranty
  • Equivalent compensation provided for any quality problems
About Certification

Below are some certificates offered by AfterPrinting. Feel free to advise if you need specific certificates:

CERTIFICATE of REACH SVHC CERTIFICATE of FDA n CPSIA CERTIFICATE of EN 71-3
