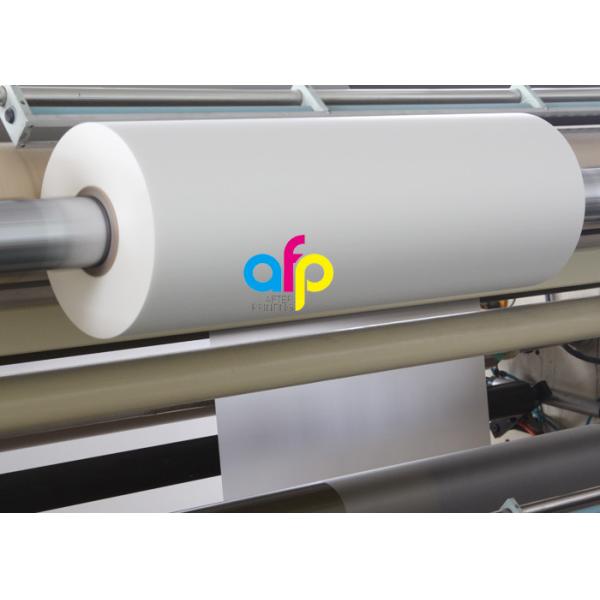

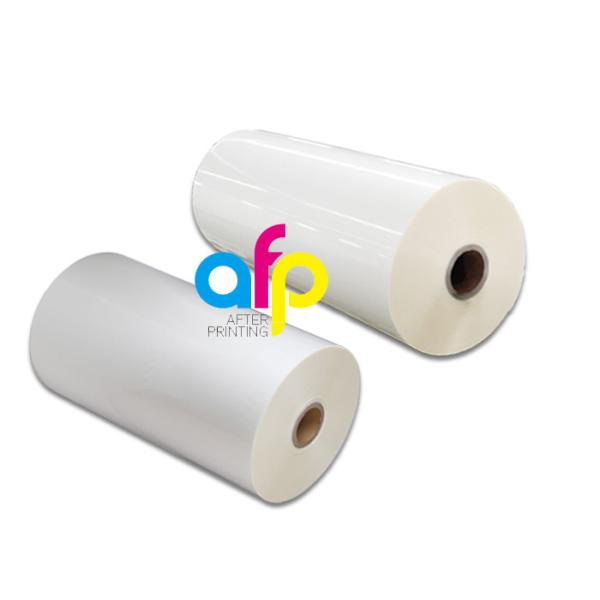

Transparent Plastic Roll BOPP Thermal Lamination Film for Print Finishing Lamination

BOPP Thermal Lamination Film is a plastic thin film designed for paper lamination. It features BOPP film as the base material layer and EVA as the heat sensitive layer, both coated using high-speed co-extrusion laminating technology.

We produce two primary types of BOPP thermal lamination film:

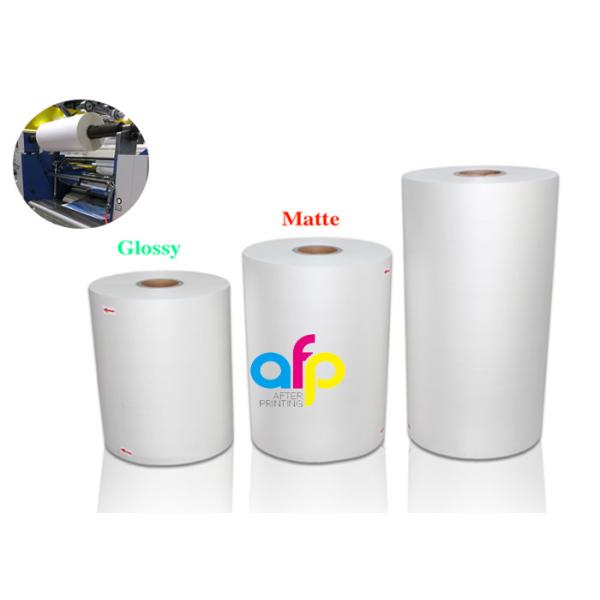

• Glossy (also called shine, brillante) BOPP thermal lamination film
• Matt (also called dull, mate) BOPP thermal lamination film

BOPP thermal lamination film works with various printing methods, particularly offset printing. It is compatible with most paper or paperboard types for print finishing lamination, including 80gsm, 125gsm, and 250gsm. Matt thermal lamination film performs exceptionally well with UV Varnish and hot stamping applications.

Customized thickness combinations available (15 micron to 30 micron, glossy and matte)

Price by weight or square meter available

• Thickness Tolerance: ±1μm (micron)
• Roll Width: from 180mm to 1880mm
• Roll Length: from 300m to 4000m
• Joint: ≤1
• Core Size: 1inch (25.4mm), 3inch (76.2mm)
• Corona Treatment: Single or Double, ≥ 38dyne
• Shelf Life: 9 months
• MOQ: 2 tons (mixed width available 500mm,600mm,700mm etc.)

• Compound Temperature: 85℃ - 105℃ (185℉ - 221℉)
• Compound Pressure: 10-18 mpa
• Compound Speed: 10-60m/min

Ordering Tips: You can order BOPP Thermal Lamination Film with custom specifications as shown below:

• One roll of thermal lamination film per carton
• Tens of rolls of thermal lamination film per pallet
• 10 to 12 pallets loaded into 1*20FCL (approximately 13MTs)
• Or 20 to 22 pallets loaded into a 40 feet container (approximately 25MTs)
• Seaport: Xiamen, Shanghai, Ningbo

Thermal lamination film is produced using multi extrusion coating lines and consists of two layers: a plastic film (primarily BOPP or PET) and an adhesive glue layer (EVA). Also known as dry, hot, or heat lamination film.

BOPP Thermal Lamination Film rolls are commonly used in printing houses for commercial and school printing applications, as well as graphic arts large format projects. The transparent film lamination (bright/shine/glossy or matte/dull) is heated to provide protective coverage on paper surfaces.

Specific applications include:

• Textbook covers
• Brochures
• Leaflets
• Sweet boxes and diaries
• Shopping bags
• Cosmetics boxes

The lamination process involves joining two or more layers to protect printed materials. A hot laminator (thermal/heat/dry lamination roller machine) is used to melt the EVA adhesive onto paper surfaces. The film passes over a heated roller and, under appropriate pressure, adheres to the paper. This straightforward process can even be performed at home for small applications.

About Samples

• Samples for testing are available and free
• Freight for sample delivery is at receiver's expense
• Freight costs are refunded by deducting from subsequent orders
• We recommend prepaid shipping to save costs

About Capacity

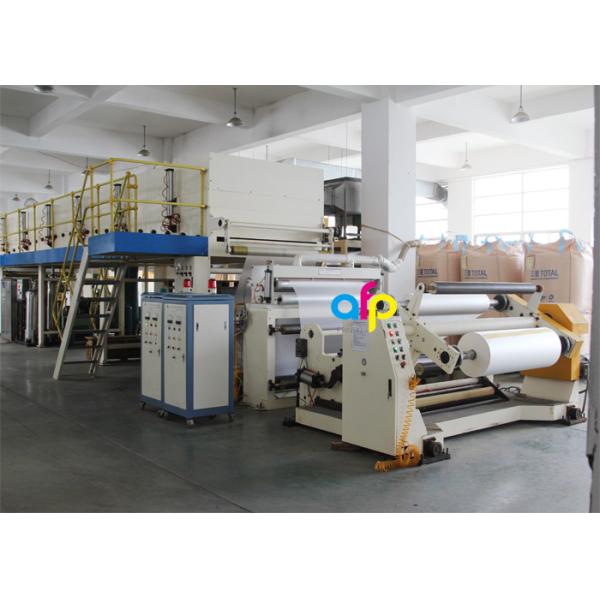

• 5 coating lines
• 20 days delivery for a 40 feet container
• 850 tons per month production capacity
• Thickness range: 15micron to 30 micron
• Roll width: 180mm to 1880mm
• Roll length: 2000m to 6000m
• Reel Outer Diameter: 240mm to 380mm (depending on reel length and width)
• Reel inner diameter: 25.4mm (1 inch) or 76mm (3 inch)

About Responsibility and After-sale Service

• 9 months warranty
• Equivalent compensation provided for any quality problems

BOPP Thermal Lamination Film Data Sheet.pdf
