Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Specifications
Brand Name :
AFP
Model Number :
Thermal Lamination Film
Certification :
FDA, REACH, EN 71-3, CPSIA
Place of Origin :
Fujian, China
MOQ :
2 Tons (Mixed roll widths accepted)
Price :
USD1860.00/Ton ~ USD2388.00/Ton
Payment Terms :
T/T,L/C
Supply Ability :
850 Tons per month
Delivery Time :
15 - 25 working days
Packaging Details :
1-One roll one carton with plastic caps protection; 2-Tens of rolls a pallet; 3-Ten pallets a 20FCL
Material :
BOPP/PET + EVA
Type :
Glossy, Matt, Embossed, etc.
Softness :
Soft
Thickness :
from 12micron to 350micron
Transparent :
Transparency or Opaque
Roll Size :
720mm*50m, 650mm*3000m, etc.
Paper Core :
1inch (25.4mm), 2.3inch (58mm), 3inch (76mm)
Laminator :
Hot / Heat / Dry / Thermal Laminator
Corona Treatment :
Double sides, over 38 dynes
Laminating Speed :
10-60m/min
Name :
Thermal Lamination Film
Description
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Heat / Hot / Dry Lamination Use Premium Laminating Roll Thermal Lamination Film
BOPP Thermal Lamination Film Technical Specifications
Parameter Specification
Material BOPP (Biaxially Oriented Polypropylene) Film
Thickness 15micron to 30micron
Adhesion EVA (Ethyl Vinyl Acetate)
Roll Width 180mm to 1880mm
Corona Treatment Single or Double
Roll Length 300m to 4000m
Surface Tension Over 38 dynes
Joint ≤1
Shelf Life 9 months
Core Size 1inch (25.4mm), 3inch (76.2mm)
MOQ 2 tons (mixed width available 500mm,600mm,700mm etc.)
Applications Textbook Cover, Brochures, Leaflets, Sweet Boxes, Cosmetics, Shopping Bag, Diaries
BOPP Operation Guidance
Parameter Range
Compound Temperature 85℃ - 105℃ (185℉ - 221℉)
Compound Pressure 10-18 mpa
Compound Speed 10-60m/min
PET Thermal Lamination Film Technical Specifications
Parameter Specification
Material PET (Polyester) Film
Thickness 12micron to 350micron
Adhesion EVA (Ethyl Vinyl Acetate)
Roll Width 180mm to 1400mm
Corona Treatment Single or Double
Roll Length 50m to 3000m
Surface Tension Over 42 dynes
Joint ≤1
Shelf Life 12 months
Core Size 1inch (25.4mm), 2.3inch (58mm), 3inch (76.2mm)
MOQ 2 tons (mixed width available 500mm,600mm,700mm etc.)
Applications Textbook Cover, Menu, Album, Brochures, Leaflets, Sweet Boxes, Cosmetics, Diaries
PET Operation Guidance
Parameter Range
Compound Temperature 90℃ - 150℃ (194℉ - 302℉)
Compound Pressure 10-18mpa
Compound Speed 10-50m/min
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
What is Thermal Lamination Film?

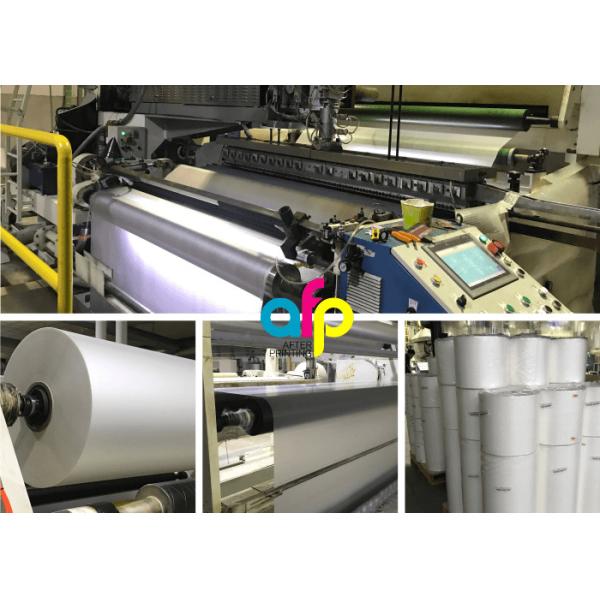

Thermal lamination film is produced by multi extrusion coating lines. It consists of two layers: one is plastic film (primarily BOPP or PET film), and another layer is adhesive glue of EVA. Thermal Lamination Film is also called dry, hot or heat lamination film.
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Where is Thermal Lamination Film Used?
Generally, printing houses use BOPP Thermal Lamination Film rolls for commercial and school printings. It can also be used for graphic arts large format applications. The transparent film lamination, available in bright/shine/glossy or matte/dull finishes, is heated as protection on paper covers. Sometimes it is referred to as paper lamination film used by heating EVA adhesive glue onto paper substrates.
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Specific applications of BOPP Thermal Laminating Film Roll include:
  • Textbook covers
  • Brochures
  • Leaflets
  • Sweet boxes and diaries
  • Shopping bags
  • Cosmetics boxes
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
How to Use Thermal Lamination Film?

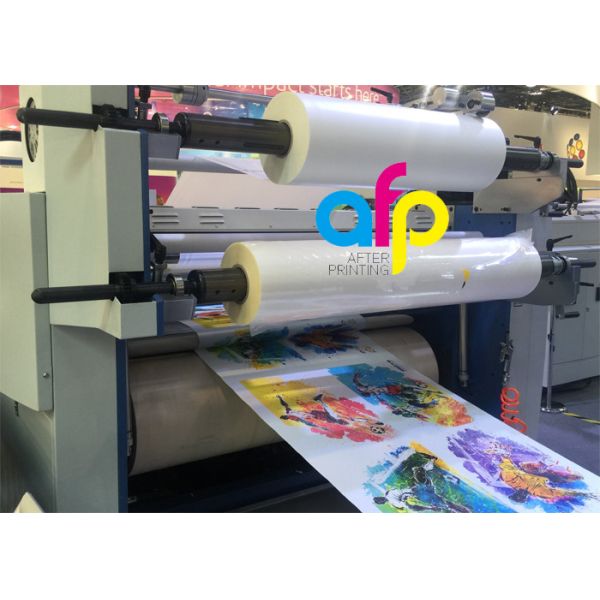

The lamination process involves joining two or more layers to protect prints. A hot laminator (thermal/heat/dry lamination roller machine) is required to use Thermal Lamination Film by melting its EVA adhesive onto paper surfaces. During the process, the film is passed on a heated roller and under reasonable pressure it sticks to the paper. This process is easy to use and can be done at home for small applications. Sometimes, it is also called heat lamination, dry lamination, or hot lamination.
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron

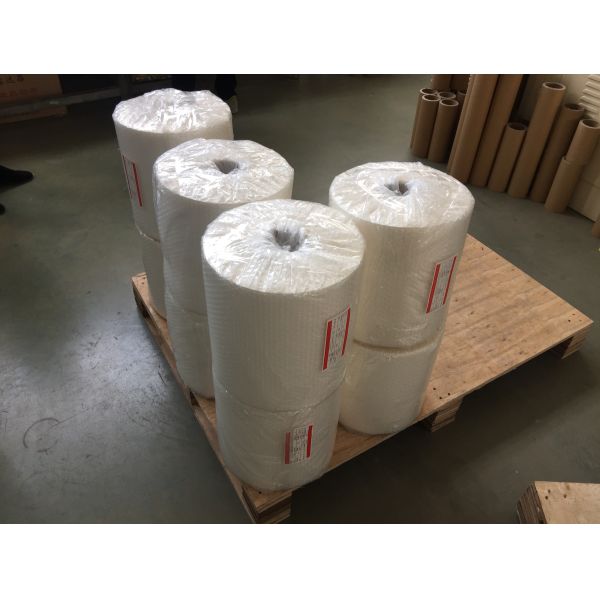

Packaging & Shipping
  • One roll thermal lamination film per carton
  • Tens of rolls of thermal lamination film in a pallet
  • 10 to 12 pallets loaded into 1*20FCL (approximately 13MTs)
  • Or 20 to 22 pallets loaded into a 40 feet container (approximately 25MTs)
  • Seaport: Xiamen, Shanghai, Ningbo
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Frequently Asked Questions (FAQ)
About Samples
  • Samples for testing are available and free
  • The freight for sample delivery is at receiver's side
  • Freight cost will be refunded by deducting from the next order automatically
  • For cost savings, we recommend prepaid shipping instead of collect
About Capacity
  • 5 coating lines
  • 20 days delivery for a 40 feet container
  • 850 tons per month production capacity
About Responsibility and After-sale Service
  • 12 months warranty
  • Equivalent compensation provided in case of any quality problems
Technical Documents
Certificates
  • CERTIFICATE of REACH SVHC.pdf
  • CERTIFICATE of FDA n CPSIA.pdf
  • CERTIFICATE of EN 71-3.pdf
