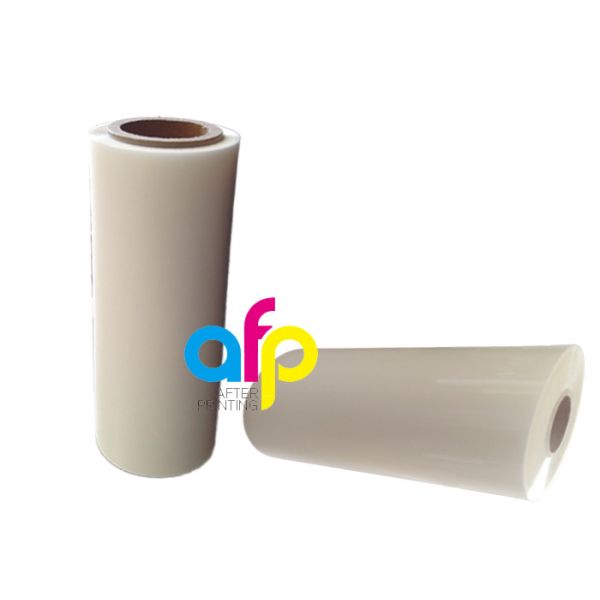

Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
Specifications
Brand Name :
AFP
Model Number :
Thermal Lamination Film
Certification :
SGS, BV,
Place of Origin :
Fujian, China
MOQ :
2 Tons (Mixed roll widths accepted)
Price :
USD1860.00/Ton ~ USD2388.00/Ton
Payment Terms :
T/T, L/C
Supply Ability :
850 Tons per month
Delivery Time :
15 - 25 working days
Packaging Details :
1-One roll one carton with plastic caps protection; 2-Tens of rolls a pallet; 3-Ten pallets a 20FCL
Material :
BOPP/PET + EVA
Type :
Glossy, Matt, Soft Touch, etc.
Softness :
Soft
Thickness :
from 12micron to 350micron
Transparent :
Transparency
Roll Size :
305mm*50m, 445mm*200m, 650mm*3000m, etc.
Corona Treatment :
One side, over 38 dynes
Paper Core :
1inch (25.4mm), 2.3inch (58mm), 3inch (76mm),
Technology :
Multi Co-extrusion
Usage :
Paper or Paperboard Lamination
Name :
Thermal Lamination Film
Description
Single Corona Treatment Roll Laminating Film, Reducing Static Laminating Rolls
One Side Single Corona Treatment Thermal Lamination Film, Reducing Static

To accelerate laminating speed, we offer one side single corona treatment thermal lamination film that helps reduce static when running on laminator machines. This is particularly useful for laminated paper requiring no further processing.

Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls

We provide two options for one side corona treatment thermal lamination film, based on BOPP film and PET film respectively.

Transparent BOPP Thermal Lamination Film
Parameter Specification
Material BOPP (Biaxially Oriented Polypropylene) Film
Thickness 15micron to 30micron
Adhesion EVA (Ethyl Vinyl Acetate)
Roll Width 180mm to 1880mm
Corona Treatment Single or Double
Roll Length 300m to 4000m
Surface Tension Over 38 dynes
Joint ≤1
Shelf Life 9 months
Core Size 1inch (25.4mm), 3inch (76.2mm)
MOQ 2 tons (mixed width available: 500mm, 600mm, 700mm etc.)
Application Textbook Cover, Brochures, Leaflets, Sweet Boxes, Cosmetics, Shopping Bag, Diaries
Operation Guidance - BOPP Film
Parameter Range
Compound Temperature 85℃ - 105℃ (185℉ - 221℉)
Compound Pressure 10-18 mpa
Compound Speed 10-60m/min
Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
Transparent PET Thermal Lamination Film
Parameter Specification
Material PET (Polyester) Film
Thickness 12micron to 350micron
Adhesion EVA (Ethyl Vinyl Acetate)
Roll Width 180mm to 1400mm
Corona Treatment Single or Double
Roll Length 50m to 3000m
Surface Tension Over 42 dynes
Joint ≤1
Shelf Life 12 months
Core Size 1inch (25.4mm), 2.3inch (58mm), 3inch (76.2mm)
MOQ 2 tons (mixed width available: 500mm, 600mm, 700mm etc.)
Application Textbook Cover, Menu, Album, Brochures, Leaflets, Sweet Boxes, Cosmetics, Diaries
Operation Guidance - PET Film
Parameter Range
Compound Temperature 90℃ - 150℃ (194℉ - 302℉)
Compound Pressure 10-18 mpa
Compound Speed 10-50m/min
Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
What is Thermal Lamination Film?

Thermal lamination film is produced by multi extrusion coating lines and consists of two layers: a plastic film (primarily BOPP or PET) and an adhesive glue layer of EVA. Also known as dry, hot, or heat lamination film.

Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
Where is Thermal Lamination Film Used?

Printing houses typically use BOPP Thermal Lamination Film rolls for commercial and school printing applications, as well as graphic arts large format projects. The transparent film lamination (bright/shine/glossy or matte/dull) is heated to provide protection on paper covers. Sometimes referred to as paper lamination film using heated EVA adhesive glue on paper substrates.

Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls

Specific applications of BOPP Thermal Laminating Film Roll include:

  • Textbook covers
  • Brochures
  • Leaflets
  • Sweet boxes and diaries
  • Shopping bags
  • Cosmetics boxes
Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
How to Use Thermal Lamination Film?

The lamination process joins two or more layers to protect prints. A hot laminator (thermal/heat/dry lamination roller machine) is used to melt the EVA adhesive onto paper surfaces. During the process, the film passes over a heated roller and sticks to the paper under reasonable pressure. This easy-to-use process can be done at home for small applications. Also known as heat lamination, dry lamination, or hot lamination.

Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
Packaging & Shipping
  • One roll thermal lamination film per carton
  • Tens of rolls per pallet
  • 10-12 pallets loaded into 1×20FCL (approximately 13MTs)
  • 20-22 pallets loaded into a 40-foot container (approximately 25MTs)
  • Seaports: Xiamen, Shanghai, Ningbo
Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
Frequently Asked Questions
About Samples
  • Samples for testing are available and free
  • Freight for sample delivery is at receiver's side
  • Freight cost refunded by deducting from the next order automatically
  • We recommend prepaid shipping to save costs
About Capacity
  • 5 coating lines
  • 20 days delivery for a 40-foot container
  • 850 tons per month production capacity
About Responsibility and After-sale Service
  • 12 months warranty
  • Equivalent compensation for any quality problems
Technical Documents
Thermal Lamination Film Data Sheet FDA & CPSIA Certificate REACH SVHC Certificate EN 71-3 Certificate Single Corona Treatment Roll Laminating Film , Reducing Static Laminating Rolls
