Non-toxic, pollution-free thermal film featuring high transparency, excellent gloss, low static properties, wear resistance, long corona aging life, minimal defects, and easy tear-off characteristics.

This product is primarily used as base material for printing, bag making, adhesive tape production, and other industrial applications. It offers strong powder absorption and can blister and film release after being concaved or protruded. Matte lamination film is particularly suitable for partial UV glazing after film laminating, hot stamping, screen printing, and frosted processes.

Easy to operate - once the hot roller temperature requirements are met, film laminating can be performed at any time without requiring professional skills.

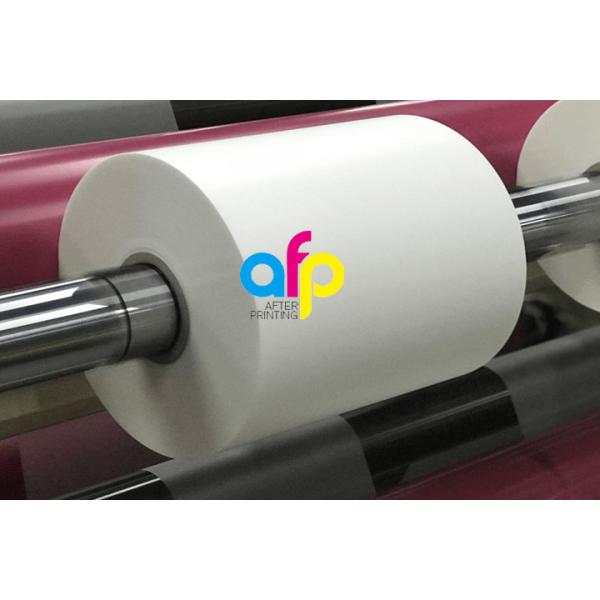

We produce both glossy and matte BOPP Thermal Lamination Film to meet diverse industrial requirements.

• Temperature of hot roller: General printing materials: 85~100℃ | Special printing materials: 100~110℃
• Pressure: 10~18 Mpa
• Speed: 8~50 m/min

Note: Special laminations refer to those with thicker ink, solid color, high moisture content, and larger size paper.

• Thickness Tolerance: ±1μm (micron)
• Roll Width: from 180mm to 1880mm
• Roll Length: from 300m to 4000m
• Joint: ≤1
• Core Size: 1inch (25.4mm), 3inch (76.2mm)
• Corona Treatment: Single or Double, ≥ 38dyne
• Shelf Life: 9 months
• MOQ: 2 tons (mixed width available 500mm, 600mm, 700mm etc.)

• Compound Temperature: 85℃ - 105℃ (185℉ - 221℉)
• Compound Pressure: 10-18 mpa
• Compound Speed: 10-60 m/min

You can order BOPP Thermal Lamination Film with the following specifications:

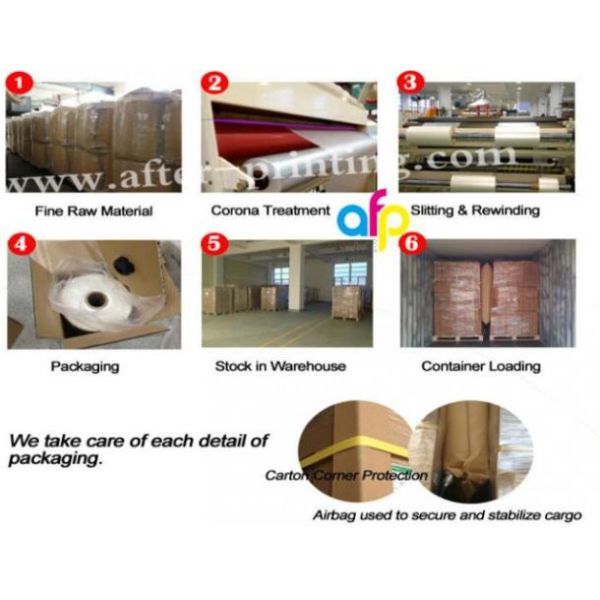

• One roll BOPP thermal lamination film per carton
• Tens of rolls of thermal lamination film per pallet
• 10 to 12 pallets loaded into 1*20FCL (approximately 13MTs)
• Or 20 to 22 pallets loaded into a 40 feet container (approximately 25MTs)
• Seaport: Xiamen, Shanghai, Ningbo

• Samples for testing are available and free
• The freight for sample delivery is at receiver's side
• Freight costs will be refunded by deducting from the subsequent order automatically
• For cost savings, we recommend prepaid shipping instead of collect

• 5 coating lines
• 20 days delivery for a 40 feet container
• 850 tons production capacity per month

• Thickness from 15micron to 30 micron
• Roll width from 180mm to 1880mm
• Roll length from 2000m to 6000m
• Reel Outer Diameter: 240mm to 380mm (depending on reel length and width)
• Reel inner diameter at 25.4mm (1 inch) or 76mm (3 inch)

• 9 months warranty
• Equivalent compensation provided in case of any quality problems

• BOPP Thermal Lamination Film Data Sheet.pdf
• CERTIFICATE of FDA n CPSIA.pdf
• CERTIFICATE of REACH SVHC.pdf
• CERTIFICATE of EN 71-3.pdf
