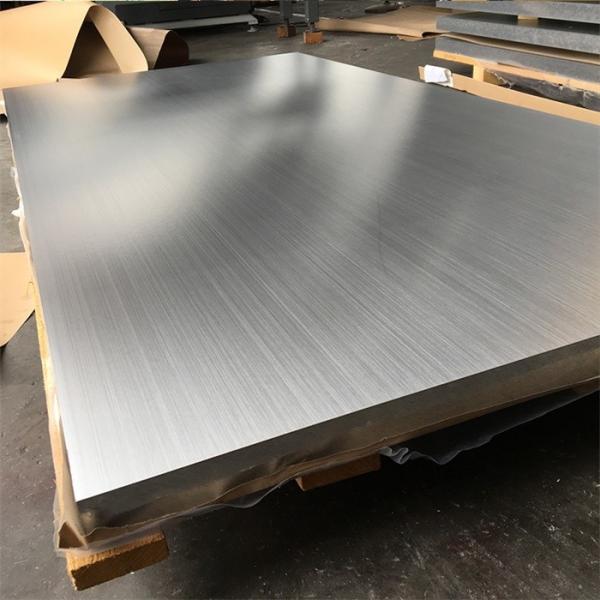

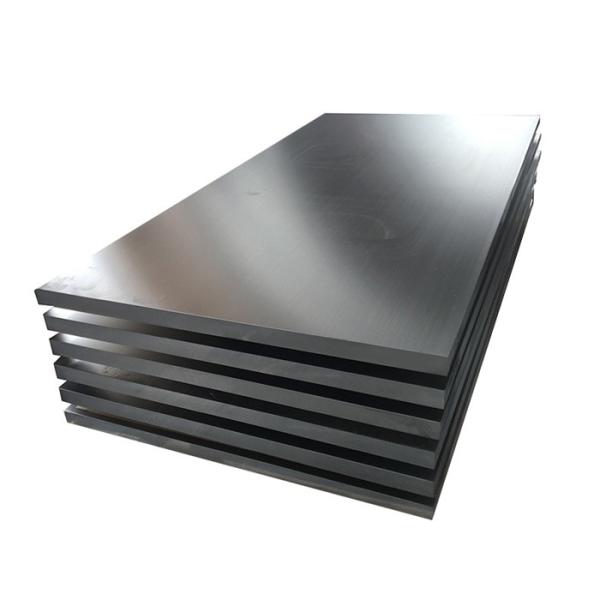

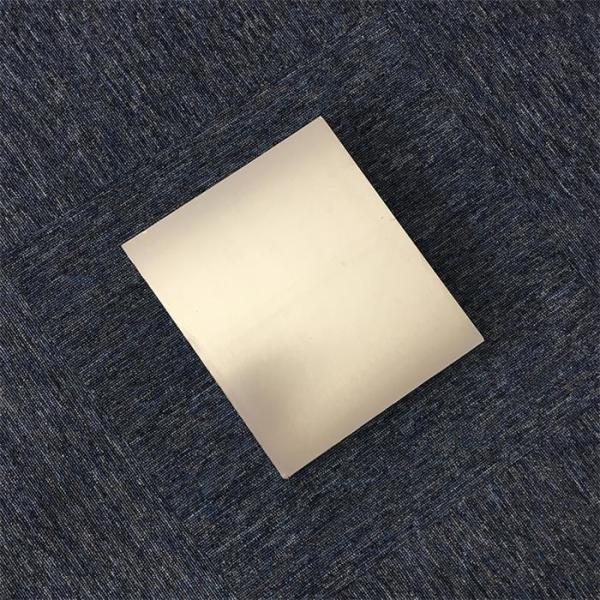

Industrial 7075 Aluminum Plate , High Durability Aluminium Flat Plate
Industrial 7075 Aluminum Plate , High Durability Aluminium Flat Plate
Industrial 7075 Aluminum Plate , High Durability Aluminium Flat Plate
Industrial 7075 Aluminum Plate , High Durability Aluminium Flat Plate
Industrial 7075 Aluminum Plate , High Durability Aluminium Flat Plate
Industrial 7075 Aluminum Plate , High Durability Aluminium Flat Plate
Industrial 7075 Aluminum Plate , High Durability Aluminium Flat Plate
Industrial 7075 Aluminum Plate , High Durability Aluminium Flat Plate
Specifications
Model Number :
7050
Certification :
SGS, BV, ASTM, etc
Place of Origin :
China or Imported
MOQ :
As Request
Price :
Negotiable
Payment Terms :
TT
Delivery Time :
Within 7 days or According to Order
Packaging Details :
Export Standard Wooden Pallet or Case
Product name :
Aircraft Grade Aluminum 7075 Alloy Sheet Plate
Temper :
T7651, T7451
Grade :
7050
Alloy or not :
Alloy
Type :
Plate/ Sheet
Application :
Aviation
Standard :
GB/T 3880-2012
Package :
Wooden Pallet
Supply Ability :
30 Tons/Month
Brand Name :
Domestic or Imported materials
Description

Aircraft Grade Aluminum 7075 Alloy Sheet Plate

Alloy 7050 aluminum plates are the principal choice for aerospace applications, especially in the 3-6inch thickness range. It exhibits better toughness/corrosion resistance characteristics than the older, more established alloy 7075. Since it is less quench sensitive than most other aerospace alloys, this alloy maintains its strength properties in thicker sections while retaining good stress corrosion cracking resistance and fracture toughness levels.

Aluminum Alloy 7050 plate is available in two tempers: T7451 (formerly T73651) offers better stress corrosion cracking resistance and excellent exfoliation resistance at slightly lower strength levels; and T7651 combines the highest strength with good exfoliation corrosion resistance and average stress corrosion cracking resistance.

Chemical Composition WT(%)
Silicon Iron Copper Magnesium Manganese Chromium Zinc Titanium Others Aluminum
0.12 0.15 2~2.6 1.9~2.6 0.1 0.04 5.7~6.7 0.06 0.15 Balance

Typical Mechanical Properties

Thickness

(mm)

Tensile Strength

(Mpa)

Yield Strength

(Mpa)

Elongation

(%)
0.3~300 496~552 72~80 11~13

Application

Airplane

Industrial 7075 Aluminum Plate , High Durability Aluminium Flat Plate

Fuselage Frames

Industrial 7075 Aluminum Plate , High Durability Aluminium Flat Plate

FAQ

1. Are you a manufacturer or trading company ?
We are Shanghai trading company with procesing machines and stocks, can provide customize size and processing servies.
2. When can I get your reply after the inquiry.
Within 15 minutes during working time, whthin 12 hours during non-working time.
3. How can I get an accurate quote?
Please provide the information of prodcuts standard, material, size and quantity.
4. What is your MOQ?
There is no MOQ with stock size, and others is 100 KG.
5. How long is your delivery time?
Within 5 days for stock size, 15-30 days for customized size.
6. Can you provide smples?
Yes, smples can be offered with only delivery fee.

Our Stock

Industrial 7075 Aluminum Plate , High Durability Aluminium Flat Plate

Sawing Machine

Industrial 7075 Aluminum Plate , High Durability Aluminium Flat Plate

Draft Mill Certificate

Industrial 7075 Aluminum Plate , High Durability Aluminium Flat Plate
