Specifications
Place of Origin :
China
Brand Name :
LIENM
Certification :
IS09001
Model Number :
LM
Packaging Details :
Wooden case packing
Delivery Time :
20-30 working days after received deposite
Payment Terms :
30% deposite by T/T before production, 70% balance by T/T before shipment
Supply Ability :
50 sets per month
MOQ :
1set
Product :
Guangzhou Factory Ten Heads Rotary Vacuum Perfume Liquid Products Filling Machine Perfume Filler Glass Bottle Filling Ma
Advantage :
Full pneumatic control
Capacity :
30-70 B/min
Filling volume :
15-1000ml
Explosion-proof :
Yes
Feature :
Fixed liquid level, vacuum filling
Usage :
Filling liquid and perfume
Material :
304 & 316 Stainless steel
Filling nozzle :
10heads
Dimension :
1168*1168*2000mm
Weight :
360kg
Description

Fully Pneumatic Vacuum Perfume Filling Machine/filler/dosing machine,liquid level control

Guangzhou Factory Ten Heads Rotary Vacuum Perfume Liquid Products Filling Machine Perfume Filler Glass Bottle Filling Ma

Guangzhou Factory Ten Heads Rotary Vacuum Perfume Liquid Products Filling Machine Perfume Filler Glass Bottle Filling Ma

Product Description

Guangzhou Factory Ten Heads Rotary Vacuum Perfume Liquid Products Filling Machine Perfume Filler Glass Bottle Filling Ma

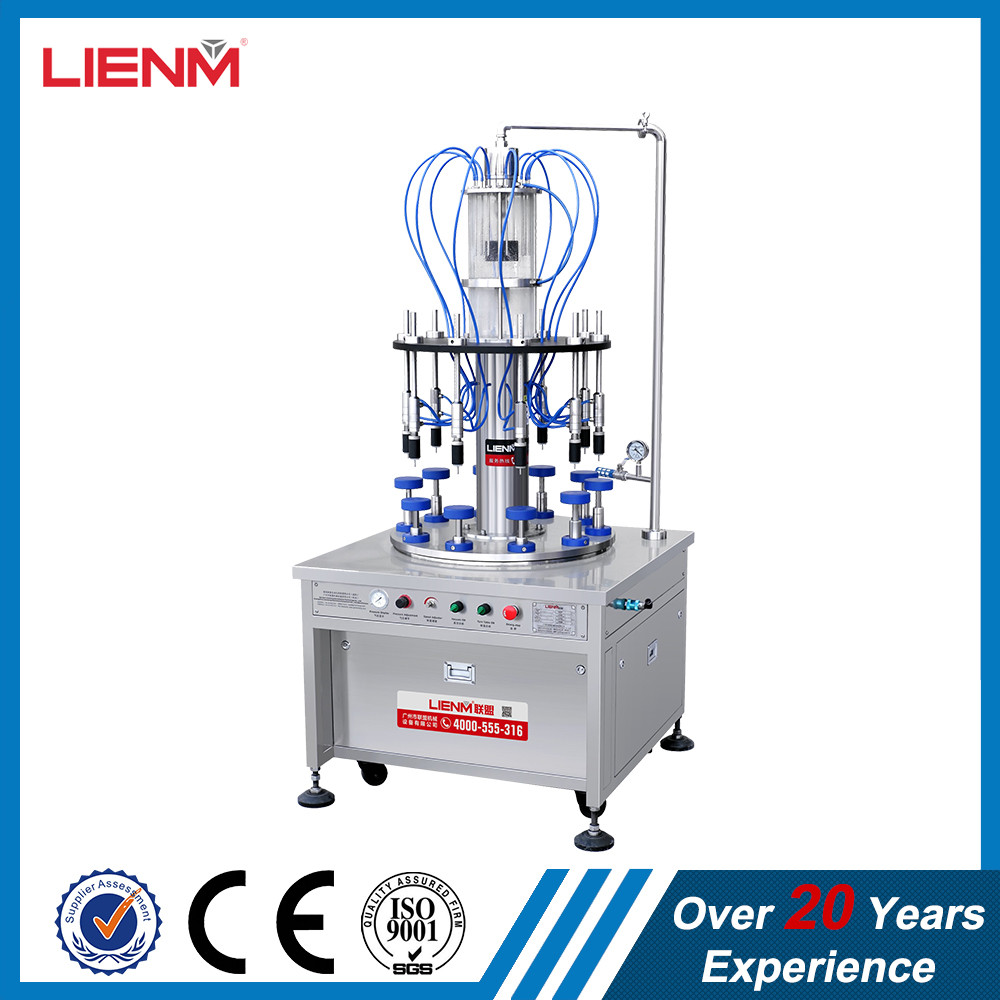

LM-SG-C Perfume Filling Machine is used for filling floral water, perfume and other water-based materials.
This machine adopts vacuum type filling and fixed liquid level type filling, thus avoiding the different levels caused by the thickness of each container bottom.
The machine is with 10 heads filling, and rotary type filling, which has speeded up and meanwhile saved a lot of spaces.
The vacuum perfume filling machine also is equipped with a recycle system, which saves a lot of time and labor tensity.
Negative pressure suction fluid filling,product filling quantity to liquid level height is the metering method
Equipment with casters,convenient to move
The contact part adopt 316L stainless steel,table with SS 304
Suitable for glass bottle and the plastic bottle which will not easy out of shape after vacuum.

Guangzhou Factory Ten Heads Rotary Vacuum Perfume Liquid Products Filling Machine Perfume Filler Glass Bottle Filling Ma

Techincal Parameters:

conventional

Type LM-SG-C
Filling Nozzle 10
Production capacity 20-50bot/min
Filling volume 15~1000ml
Supply voltage Full pneumatic
N.W 360kg
Dimension 1168*1168*2000mm
Single machine noise ≤70dB
Equipent Charcteristics Pneumatic control Wide suitability
High filling accuracy Labor saving
Easy to use and maintain

Guangzhou Factory Ten Heads Rotary Vacuum Perfume Liquid Products Filling Machine Perfume Filler Glass Bottle Filling Ma

Guangzhou Factory Ten Heads Rotary Vacuum Perfume Liquid Products Filling Machine Perfume Filler Glass Bottle Filling Ma

Related Products

Guangzhou Factory Ten Heads Rotary Vacuum Perfume Liquid Products Filling Machine Perfume Filler Glass Bottle Filling Ma

FAQ

Q1: Are you a factory or trading company?

A1: We are a factory specialized in daily cosmetic and perfume equipment. Such as, water treatment, vacuum emulsifier, shampoo and liquid soap mixers , perfume making machine, storage tank, filling and other packing machines.

Q2: Where is your factory location? How can I visit there?

A2: Locates in Baiyun, Guangzhou, 20 minutes away from Baiyun Airport by car, you can also take metro Line 3 to Longgui station.

Q3: How does your factory do regarding quality control?

A3: Quality is priority. People from Lienm always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained TUV and ISO authentication

Q4: What’s the guarantee if we purchase from you?

A4: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any wearing part be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free.
