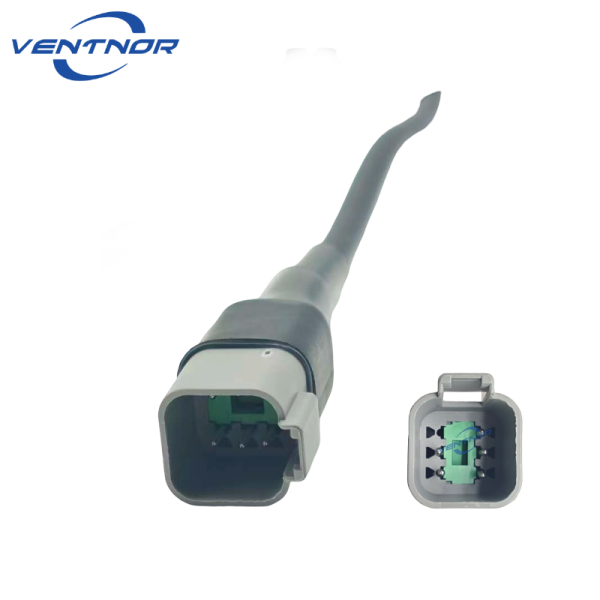

Green Deutsch Connector Genie Aerial Work Platform Parts 12 Pin
Green Deutsch Connector Genie Aerial Work Platform Parts 12 Pin
Specifications
Contact Material :
Solid Nickel-Plated Copper Alloy Terminals
MOQ :
1
Housing Material :
Rugged Thermoplastic with Silicone Seals
Packaging Details :
Carton
Payment Terms :
100% TT in advance
Pin Configuration :
12-Pin
Series Type :
Deutsch DT / DTM Heavy-Duty Series
Delivery Time :
5-8 working days
Color Specification :
Keyed Industrial Coding Green
Price :
$200-300
Brand Name :
Ventnor
Ingress Protection :
IP68 / IP69K Waterproof Submersion Standard
Supply Ability :
2000pcs/month
Place of Origin :
China
Description
Heavy-Duty Green Deutsch DTM Series Connector for Genie Lift (57 chars)
Technical Insights into Green Deutsch Connector for Genie Aerial Lift
In the CAN-bus data architectures of mobile elevating work platforms, maintaining reliable digital data streams is essential for operational uptime. The Green Deutsch Connector for Genie Aerial Lift serves as a heavy-duty, multi-pin electrical interface engineered to link critical control box modules with engine management systems. Designed with precise physical keying configurations specific to Genie electronic layouts, this industrial green connector provides distinct visual grouping while maintaining structural insulation and low electrical resistance in high-vibration engine compartments.
The structural frame is molded from high-grade thermoplastic polymers that resist dimensional warping and chemical breakdown when exposed to harsh outdoor construction sites. Featuring an integrated primary locking latch along with internal silicone rubber rear wire grommets, the assembly blocks moisture paths completely. The internal contact pins fit tightly into the mating receptacle, eliminating contact fretting and localized heat buildup under continuous multi-shift operations.
Engineering Specifications and Parameter Evidence
To support rigorous quality compliance and fleet engineering audits, the comprehensive technical parameters of this connector system are detailed below:
Engineering Performance Matrix Evaluated Rating / Testing Standard
Primary Product Application Genie aerial lift CAN-bus wiring and engine control circuits
Interface Configuration 12-Pin Multi-Circuit Array with Green Keying
Contact Base & Plating Material High-conductivity copper alloy with uniform nickel plating
Continuous Current Load 7.5A (DTM Series) / 13A (DT Series) per terminal
Maximum Voltage Rating 250V AC/DC Industrial Safety Boundary
Contact Resistance Rating ≤ 4.0 mΩ checked according to IEC 60512-2-1 standard
Insulation Resistance Barrier ≥ 10³ MΩ checked according to IEC 60512-3-1 standard
Ingress Protection Level IP68 (1 meter submersion) & IP69K high-pressure washdown
Operating Temperature Range Outdoor工况范围: -55°C to +125°C
Fluid Resistance Compliance Resists diesel fuel, engine oil, and hydraulic fluids
Strategic Advantages and Environmental Adaptability
  • IP68 and IP69K Dual Submersion Sealing: The connector utilizes integrated rear silicone wire seals and a front interface gasket. It blocks high-pressure water jets and continuous submersion, ensuring fine dust, moisture, and condensation cannot reach the contacts, preventing data corruption.
  • Green Diagnostic Keying System: The shell features a specialized green color code tied to specific internal physical keying slots. This mechanical design prevents cross-mating with adjacent black or gray Deutsch connectors on the same Genie wire harness, reducing assembly error risks during maintenance.
  • Corrosion-Proof Solid Nickel Contacts: The internal terminals are machined from solid copper alloy with a thick nickel plating layer. This configuration limits contact resistance below 4.0 milliohms and resists the severe oxidization caused by salty air, chemical washes, and high-humidity worksites.
Technical Product FAQ
Will this Green Deutsch Connector crack when exposed to freezing temperatures or hot engine compartments?
No. The rugged thermoplastic housing is engineered to operate across an extreme thermal temp range from -55°C to +125°C. It maintains structural impact strength in freezing sub-zero winters without cracking and resists thermal distortion under high engine heat, protecting internal data circuits.
Can this green connector withstand direct contact with leaking hydraulic fluid?
Yes. The engineered thermoplastic material and internal silicone seals are chemically inert against common construction chemicals. Prolonged exposure or direct splashes from hydraulic oil, diesel fuel, and lubricating grease will not dissolve, swell, or degrade the housing structure, ensuring reliable long-term data consistency.
