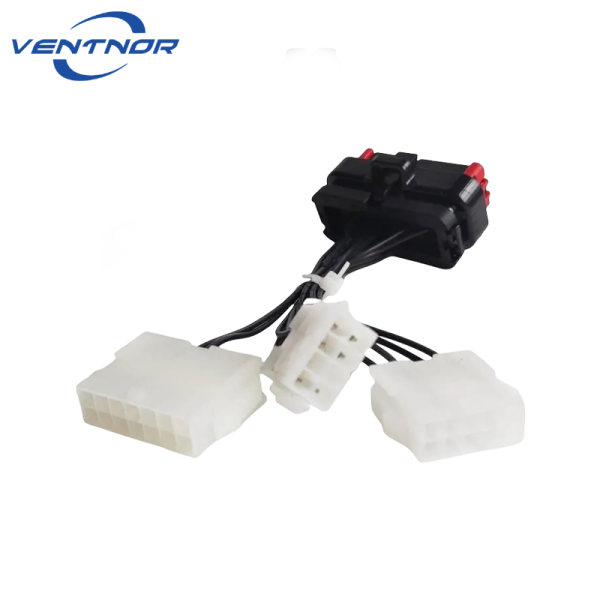

Tinned Copper Control Wiring Harness Flame Retardant Aerial Lift Part
Tinned Copper Control Wiring Harness Flame Retardant Aerial Lift Part
Specifications
Part Classification :
Industrial Machinery Electrical Harness
Packaging Details :
Carton
Product Name :
Multi-Conductor Flame-Retardant Control Wiring Harness
Price :
$200-300
Supply Ability :
2000pcs/month
Brand Name :
Ventnor
Delivery Time :
5-8 working days
Payment Terms :
100% TT in advance
Conductor Base :
High-Purity Tinned Copper Wire
MOQ :
1
Application :
Boom Lift Control Box Electrical Routing
Place of Origin :
China
Description
Technical Background and Signal Integrity
The Control Wiring Harness is a heavy-duty, multi-conductor electrical distribution assembly engineered to maintain absolute signal integrity between primary machine microprocessors and upper platform control stations. Operating within low-voltage direct current systems, this harness bundles multiple power, grounding, and digital communication lines into a single shielded structure. The layout utilizes precision-crimped terminals and twisted-pair wiring geometries to suppress electromagnetic interference originating from nearby hydraulic pumps or electric motors. This specialized architecture guarantees low voltage drop and prevents data packet loss across extended lifting distances.
Technical Specifications
Parameter Specification Technical Data Value
Voltage Rating Range 12V to 48V DC Nominal
Conductor Insulation Material Cross-Linked Polyethylene (XLPE)
Outer Protective Sheathing High-Density Braided Nylon / Corrugated Conduit
Connector Interface Type Molded Deutsch DT / Amphenol Multi-Pin Blocks
Flammability Compliance VW-1 / UL1581 Flame Retardant Rated
Operating Temperature Limit -40°C to +105°C Continuous
Wire Gauge Configurations 14 AWG Power / 18 AWG Signal Core Mix
Dielectric Strength Value 1000V AC Minimum Insulation Resistance
Industrial Applications and Fleet Deployment
The Control Wiring Harness serves as the primary electrical backbone for heavy industrial equipment and material handling machinery operating under severe vibration. It integrates with the following equipment lines:
  • Aerial Work Platforms: Connects the lower ground control module to the upper basket control box on telescopic booms, articulated booms, and scissor lifts.
  • Mobile Hydraulic Systems: Links proportional joystick controllers, safety interlock foot switches, and emergency stop buttons to the main electronic control unit.
  • Severe Environment Machinery: Deployed across commercial port cranes, automated logistics sorting facilities, and heavy construction excavation gear requiring continuous multi-channel signaling.
Technical Advantages and Structural Architecture
  • Cross-Linked Polyethylene Insulation: Resists chemical exposure, hydraulic fluid degradation, and physical abrasion far better than standard PVC coverings.
  • Machine-Crimped Terminal Blocks: Every pin connection is completed using calibrated automated tooling, eliminating cold joints and ensuring a minimum pull-off force of 200 Newtons.
  • Internal Strain Relief Cores: High-tensile aramid fibers run parallel inside the bundle to absorb physical pulling stresses, protecting copper conductors from breaking during boom extension.
Product FAQ
How does the control wiring harness prevent copper oxidation in high-humidity or coastal rental applications?
The harness features premium tinned copper conductors inside every wire core. This thin layer of tin plating acts as a physical barrier that prevents copper oxidation and corrosion when exposed to salt air, moisture, and chemical fumes. Furthermore, each terminal housing is fitted with silicone perimeter seals that completely isolate the contact pins from ambient atmospheric conditions.
What layout configurations protect the internal signal lines against high physical wear during boom movement?
The outer jacket is wrapped in a highly flexible, abrasion-resistant braided nylon mesh sleeve that allows the bundle to bend smoothly inside the equipment tracking guide. The internal wire positioning uses a planetary layout, which reduces internal friction and tension between wires as the harness twists, preventing structural cracking or short circuits over millions of motion cycles.
Is this multi-conductor control harness directly compatible with digital CAN-bus communication layouts?
Yes, this harness architecture includes dedicated twisted-pair lines possessing a specific characteristic impedance matching standard CAN-bus specifications. This precise configuration prevents data signal reflections and communication bus errors, ensuring real-time diagnostic reporting and smooth proportional operation between the upper platform control panel and the lower motor controllers.
