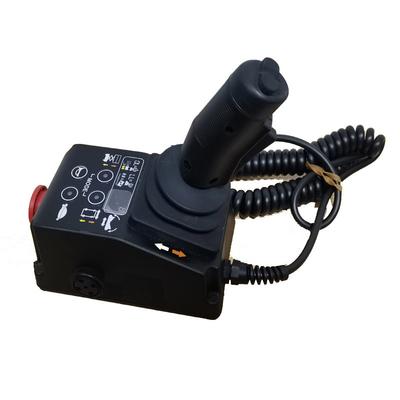

Control Box 4130001286 for LGMG scissor lift AS0607 AS0808 AS1012 AS1212 AS1008 AS1412 AS1414...

The Control Box 4130001286 for LGMG scissor lifts, compatible with models AS0607, AS0808, AS1012, AS1212, AS1008, AS1412, and AS1414, is a sophisticated and essential component designed to provide seamless operation and precise control of the lift's functionalities. This control box integrates advanced technology to ensure safety, efficiency, and user-friendliness, making it an ideal choice for managing scissor lift operations in various industrial and construction environments.

The Control Box (Part #4130001286) is a critical electronic control unit (ECU) designed for a range of LGMG scissor lift models. This genuine OEM (Original Equipment Manufacturer) component serves as the central nervous system for the machine's operational functions, interpreting operator commands and managing the power distribution to the drive and lift systems.

Key Features & Specifications

• Genuine OEM Part: Manufactured by LGMG or an authorized supplier to meet strict quality and performance standards, ensuring perfect compatibility and reliability.

• Part Number: 4130001286 (This is the essential identifier for correct parts ordering and cross-referencing).

• Core Function: Acts as the main control module, processing input signals from the platform and ground controls and activating the corresponding hydraulic and drive functions.

• Robust Construction: Housed in a durable, often aluminum or heavy-duty plastic enclosure designed to withstand the harsh conditions of construction and industrial environments, including vibration, dust, moisture, and temperature fluctuations.

• Integrated Circuitry: Contains advanced printed circuit boards (PCBs), relays, and connectors that manage the logic and power for the scissor lift's operations.

Compatibility & Applicable Models

This specific control box is compatible with the following LGMG articulated scissor lift models:

• LGMG AS0407 (4m platform height, 700kg capacity)

• LGMG AS0507 (5m platform height, 700kg capacity)

• LGMG AS0607 (6m platform height, 700kg capacity)

• LGMG AS0608 (6m platform height, 800kg capacity)

• LGMG AS0808 (8m platform height, 800kg capacity)

It is crucial to verify your machine's model and serial number before purchase to ensure compatibility.

Core Functions & Applications

This control box is applied in the following key areas:

1. Machine Operation & System Management:

   • Lift/Lower Control: Processes commands from the lift/lower switches to engage the hydraulic pump motor and control valves for precise platform elevation.

   • Drive & Steering Control: Manages input from the drive controls (forward/reverse) and steering controls to power the drive motors and achieve smooth travel and maneuverability.

   • Function Interlocking: Enables critical safety interlock systems, such as preventing drive functions while the platform is elevated or ensuring the platform gate is closed before operation.

2. Safety and Diagnostics:

   • Error Code Management: The ECU monitors system health and can trigger error codes or fault lights on the display panel to alert the operator to issues (e.g., overload, low battery, system error).

   • Power Management: Regulates and distributes power from the battery to various systems, protecting against electrical overloads.

3. Maintenance and Repair:

   • Replacement Part: This part is the definitive solution for troubleshooting and resolving a wide range of electrical and control system failures, including:

     • Complete Machine Failure: When the scissor lift is completely unresponsive.

     • Intermittent Operation: When functions work sporadically or cut out unexpectedly.

     • Specific Function Failure: When one function (e.g., driving) fails but others work.

     • Diagnostic Fault Codes: When the machine displays error codes related to control system failure.

Who Needs This Part?

• LGMG Dealers and Distributors: For stocking as an essential spare part to service customer machines.

• Equipment Rental Companies: To minimize downtime for their fleet of LGMG AS series scissor lifts.

• Professional Repair Shops: Specializing in aerial work platform (AWP) maintenance and repair.

• Large Construction & Industrial Facilities: With in-house maintenance teams responsible for keeping their equipment operational.
