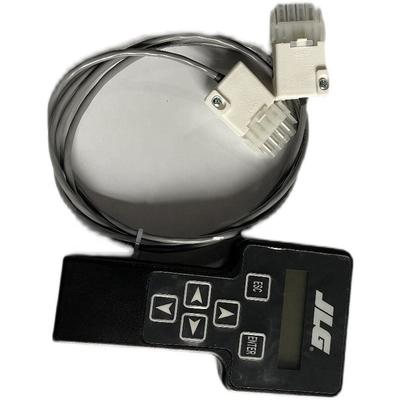

Top Quality JLG Handheld Analyzer Tool 2901443 and 1001249695

The JLG Handheld Analyzer Tool (comprising main unit 2901443 and likely a complementary component or cable under 1001249695) is a professional-grade diagnostic device designed specifically for servicing and troubleshooting JLG aerial work platforms (AWPs), including boom lifts, scissor lifts, and telehandlers. It is an essential tool for technicians to quickly identify faults, read system parameters, and ensure optimal machine performance.

Key Features & Benefits

• OEM-Guaranteed Compatibility: As a genuine JLG part, it is engineered to seamlessly communicate with the proprietary CANbus systems and controllers across a wide range of JLG equipment, ensuring accurate data reading and fault code interpretation.

• Advanced Diagnostics: Provides deep system access to read active and historic fault codes, clear codes after repair, and view real-time operational parameters (e.g., sensor readings, switch status, hydraulic pressures, drive motor currents).

• Improved Repair Efficiency: Drastically reduces diagnostic time by pinpointing the exact source of a problem, moving beyond guesswork to targeted repairs. This minimizes machine downtime and labor costs.

• User-Friendly Interface: Typically features a backlit LCD screen and an intuitive keypad or menu system, allowing technicians to navigate diagnostic functions easily, even in low-light field conditions.

• Durable Construction: Built to withstand the harsh environments of construction sites, repair shops, and equipment yards. It is often housed in a rugged, impact-resistant case.

• Data Logging Capabilities: Some versions allow for data recording and snapshot functions to track machine performance over time or for further analysis.

Technical Specifications (Generic)

• Part Numbers: 2901443 (Main Analyzer Unit), 1001249695 (Often a communication adapter cable or accessory kit)

• Compatibility: Designed for JLG equipment with 3rd Generation and newer control systems. Always verify compatibility with your specific machine model.

• Display: Backlit LCD screen

• Connectivity: Connects directly to the machine's diagnostic port via a dedicated communication cable.

• Power Source: Typically powered through the machine's diagnostic port or via internal batteries.

• Software: Pre-loaded with JLG-specific diagnostic software; may require updates from JLG for newer machine models.

Primary Applications & Uses

• Fault Code Reading & Clearing: The primary function is to retrieve diagnostic trouble codes (DTCs) from the machine's main controller, engine, and other subsystems, and to clear them once the repair is verified.

• Real-Time Data Monitoring: Allows technicians to observe live data values from sensors and switches while the machine is operating, which is critical for diagnosing intermittent problems.

• Component Activation ("Forcing"): Advanced functions often permit technicians to manually activate solenoids, motors, or other components directly from the analyzer to test their functionality independently of the machine's normal control sequence.

• Parameter Configuration: On certain models, it may allow for viewing and setting specific machine parameters (e.g., function speeds, sensitivity settings).

• Preventive Maintenance: Used to verify system health and performance during scheduled service intervals.

Target Audience

• JLG Certified Technicians: Essential for dealership and authorized service center mechanics.

• Rental Fleet Maintenance Teams: Crucial for large rental companies (like Sunbelt Rentals, United Rentals) to maintain fleet availability and reliability.

• Independent Repair Shops: Specializing in aerial equipment repair.

• Industrial Maintenance Departments: For companies that own and maintain a large fleet of JLG equipment in-house.

Why Choose This Genuine JLG Tool?

• Accuracy: Guaranteed to correctly interpret JLG-specific communication protocols.

• Reliability: Built to JLG's quality standards for durability and performance.

• Support: Access to technical support and software updates from JLG.

• Warranty: Typically comes with a manufacturer's warranty, protecting your investment.
