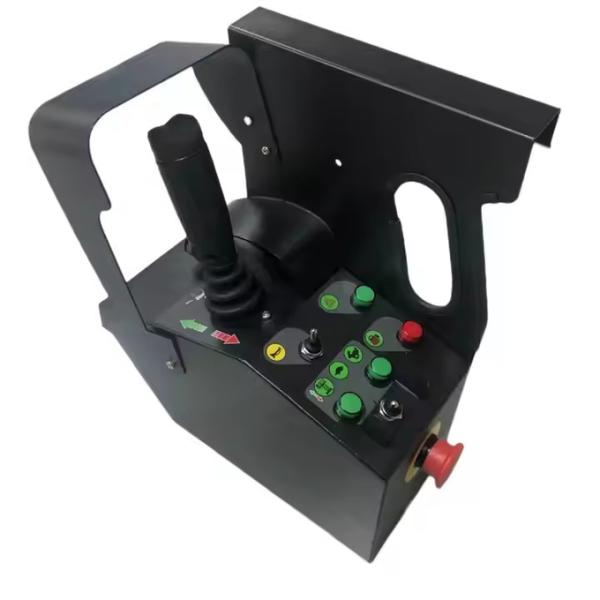

Haulotte Control Box Assembly 4000306220 for Haulotte Optimum 6 Compact 8 Compact 10N

Product Overview:

The Haulotte Control Box Assembly, bearing the specific part number 4000306220, is a critical electronic control module designed exclusively for the Haulotte Optimum 6 Compact and Optimum 8 Compact models of electric scissor lifts.

This assembly acts as the central nervous system of the machine, housing the primary logic and control circuits that interpret commands from the platform controls and translate them into precise actions for the lift's functions, including drive, steering, and elevation.

Key Features and Functions:

• Central Processing Unit: It serves as the main computer or PLC (Programmable Logic Controller) for the scissor lift, processing all operator inputs and managing the machine's operational parameters.

• Compatibility: This specific part is engineered to be fully compatible with the Haulotte Optimum 6 Compact (which has a platform height of 6.65 meters / 21.10 ft) and the Optimum 8 Compact (platform height of 8.15 meters / 26.11 ft).

• Integrated Safety Management: The control box is integral to the machine's safety system. It continuously monitors input from safety devices such as emergency stop buttons, limit switches, and sensors, ensuring safe and reliable operation at all times.

• Function Control: It governs all essential functions, including:

  • Drive & Traction Control: Manages the travel speed and direction (forward/reverse).

  • Lifting & Lowering Control: Precisely controls the scissor mechanism's extension and retraction.

  • Steering Control: Manages the electric power steering function.

• OEM Original Part: As a genuine Haulotte component (OEM - Original Equipment Manufacturer), it guarantees perfect fit, optimal performance, and full compliance with the manufacturer's original specifications and safety standards.

Typical Symptoms of a Faulty Control Box:

A failure or malfunction in this unit can lead to various operational issues, such as:

• The machine failing to power on or respond to commands.

• Intermittent or complete loss of drive or lift functions.

• Error codes appearing on the platform display.

• Uncontrolled or erratic movement.

• Failure to pass a system self-test.

Application:

This assembly is a vital spare part used for the repair and maintenance of Haulotte's Compact series scissor lifts, ensuring their continued safe, efficient, and reliable performance. It is typically installed in the machine's chassis and is connected to the user interface in the platform and the various actuators and motors throughout the machine.
