movable wall partition
movable wall partition
Specifications
Brand Name :
AE
Model Number :
AE85
Certification :
ISO9001 SGS
Place of Origin :
Guangdong, CHINA
MOQ :
10 Square Meter
Price :
USD 90-110 Per Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SQUARE METER PER MONTH
Delivery Time :
20-30days for 10-100㎡, if more than 100㎡need to be negotiated
Packaging Details :
foam layer and hard cardboard with plywood case or steel pallet
Products :
Acoustic movable wall partition
Application :
Hospital, Hotel, Laboratory, Restaurant ,meeting room, Shool
Material :
6061-T6 Aluminum Alloy Frame+ Galvanized Square Tube Keel
Finishing option :
Fabric, Veneer, Murals and Even Customer-supplied Materials
Base board :
9mm MDF Magnesium Board, plywood, Customer-supplied Materials
Sound Insulation :
52db
Function :
Operable, Fold-away, Suspending, Dividing, Soundproofing
Thickness :
85mm
Design :
depend on your demand
Dimensions :
Customization (Height: up to 6M, Width per Panel: up to 1.2M)
Description

Engineered for Silence: The AE Partition Technical Advantage

At AE Partition, performance is in our DNA. We are an engineering-driven company dedicated to pushing the boundaries of acoustic isolation and mechanical durability. Our flagship movable wall partition is a testament to this philosophy, integrating state-of-the-art materials and precision mechanics to deliver quantifiable results for demanding environments worldwide.

  • Performance-Driven Systems: Choose from 68mm, 89mm, or 105mm panel thicknesses, each designed for specific acoustic and structural performance targets.
  • Superior Mechanics: Our systems feature Dupont POM rollers for wear resistance and 304 Stainless Steel rollers for robust, high-cycle applications, all running on a patented, low-friction wheel geometry.
  • Absolute Sealing Power: We achieve superior soundproofing through a combination of an 800N mechanical jack-lift seal and 40N/m magnetic gaskets, creating a virtually airtight closure.
  • Structural Integrity: A core of reinforced Q235 steel and a 6061-T6 aluminum frame guarantees long-term stability and safety, validated by our pre-production risk analysis.
Elevate your spaces with partitions that harmonize innovation, privacy, and durability. Contact AE Partition today to transform your vision into reality!

SPECIFICATION:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
　 Dimensions in mm* Design
Series Element thickness Element width* (min./max.) Clear height* (min./max.) Framed construction Panel fixing Element interconnection/design of
the vertical profiles
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element
widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight

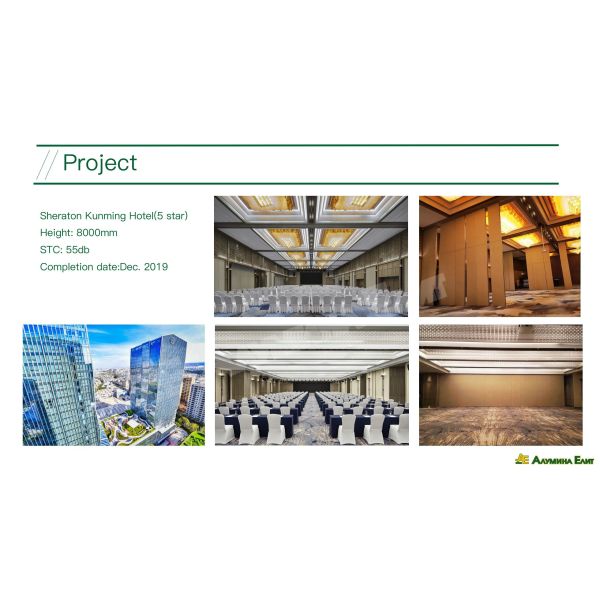

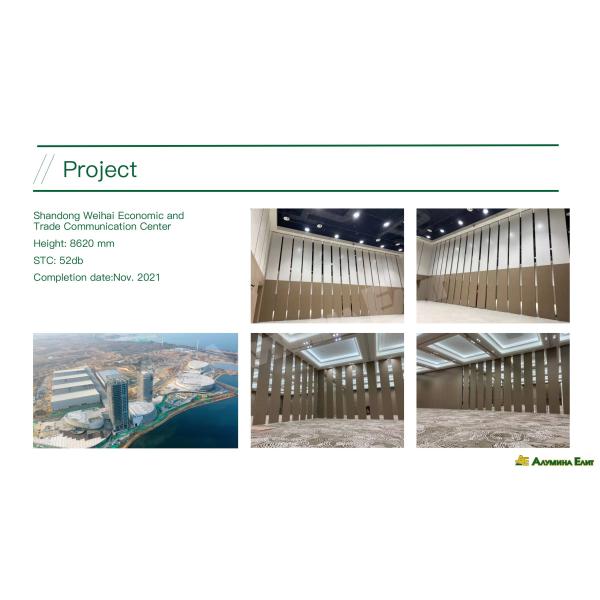

PROJECT:
