Specifications
Brand Name :
AE
Model Number :
AE65
Certification :
ISO9001 SGS
Place of Origin :
Guangdong, CHINA
MOQ :
10 Square Meter
Price :
USD 70-98Per Square Meter
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 SQUARE METER PER MONTH
Delivery Time :
20-30days for 10-100㎡, if more than 100㎡need to be negotiated
Packaging Details :
Foam layer and hard cardboard with plywood case or steel pallet
Product :
Operable Partition Wall System
Compliance :
Restaurant, office building
Finishing option :
68mm MDF board
Dimensions :
Customization (Height: up to 4.5M, Width per Panel: up to 1.2M)
Design :
OEM & ODM
STC Rating :
42-56dB
Description

Partition Walls for Events Operable Partition Wall System without Floor Rail

Transform your event space with Partition Walls for Events, featuring an Operable Partition Wall System without a floor rail. This innovative design offers smooth, unobstructed flooring while allowing you to easily reconfigure the space to suit any event or gathering

With a focus on fast response times and flexibility in handling construction-related challenges, we ensure seamless project execution. Our advanced technology products are designed to meet the highest standards, making us your reliable partner for innovative space management solutions.

Roller Option & Feature

1. Dupont POM roller

2. 304 stainless steel heavy duty roller with safety device & CNC machining

3. Unique and patented wheel surface and shape make the whole movable partition easy to use

Panel Option & Feature

1. Thickness: 68mm & 89mm & 105mm

2. Wide variety of acoustical and decorative finishes available

3. 6061-T6 profile and inside Q235 steel frame for superior durability

4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m.

SPECIFICATION:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
　 Dimensions in mm* Design
Series Element thickness Element width* (min./max.) Clear height* (min./max.) Framed construction Panel fixing Element interconnection/design of
the vertical profiles
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element
widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight

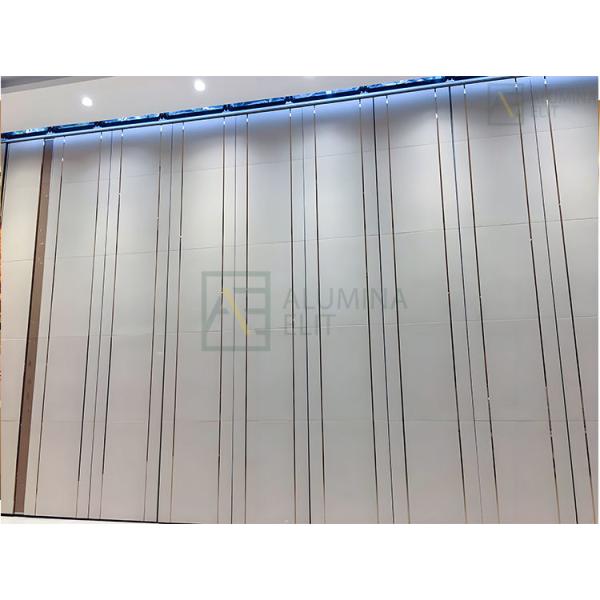

PROJECT:

Aluminum Commercial Operable Partition Wall System with 6061-T6 Profile and 304 Stainless Steel Roller

Aluminum Commercial Operable Partition Wall System with 6061-T6 Profile and 304 Stainless Steel Roller
