Specifications
Brand Name :
GCL
Model Number :
Gprime P1.56\P1.95\P2.604
Certification :
EMC/CE/ROHS/CCC/FCC/BIS
Place of Origin :
China
MOQ :
Min. order: 20
Price :
Price to be discussed
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
15-20Days
Packaging Details :
Single package size:60X60X30 cm
brand name :
GCL
RODUCT MODEL :
Outdoor rental Gprime series
Panel size :
500*500mm
Module size :
250*250mm
ip rating :
IP65
Certifications :
EMC/CE/ROHS/CCC/FCC/ISO
Panel weight :
7.4kg/panel
Color :
Full Color
Brightness :
4500nits
Refresh :
7680Hz
Ohthers :
outdoor advertising machines
Description

Newest Outdoor Rental LED Screen P1.5625 P1.953 7680 Hz Rate Panel Curved Shape Screen For Stage Show Event and Outdoor advertising machine


Model Number:outdoor P1.5625, P1.953, P2.604 mm


Product Creative Concept:

1. There are three point spacing product specifications available for outdoor rental: P1.5625, P1.953, and P2.6mm.

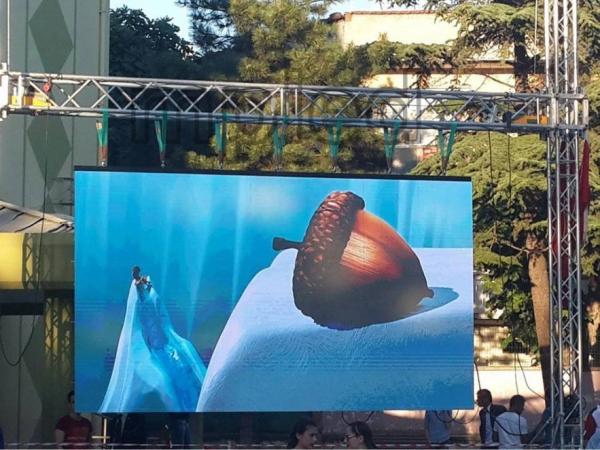

2. Widely used in various scenarios such as outdoor concerts, commercial press conferences, roadshows, etc.

3,One hand operation, 3 seconds to complete the installation.

The handle is located in the middle of the cabinet, convenient for one-hand operation, The upper and lower lock can be operated with one hand, and it can be automatically inserted and installed quickly.

4,Front maintenance: remove the magnetic module and use a hexagonal screwdriver to unscrew the knob hole to remove the power box.

Rear maintenance: an independent modular design, allowing for easy front & rear maintenance of modules, power supplies, and receiving cards

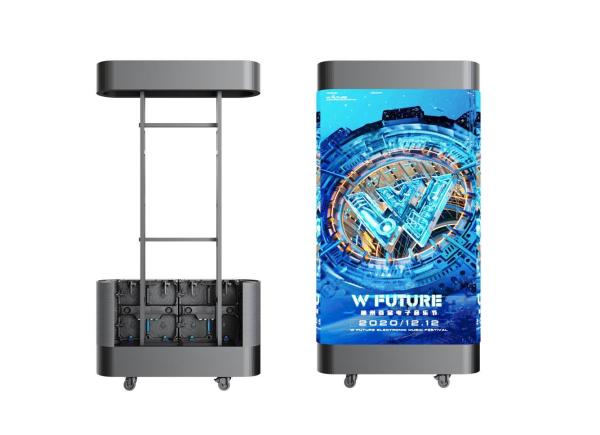

5. The product has a brightness of 4500nits and a refresh rate of 7680Hz. When combined with a 125 * 250mm small module and a special 90 degree corner design, it can be used as an outdoor 360 degree vertical circular advertising machine, adding more application scenarios.


Outdoor Product Gprime-1.5 Gprime-1.9 Gprime-2.6
Pixel Pitch (mm) P1.5625 P1.953 P2.604
Density pixels/㎡ 409600 262144 147456
LED Type SMD1010 outdoor SMD1010 outdoor SMD1415 outdoor
Brightness (cd/㎡) ≥4500cd/㎡ ≥4500cd/㎡ ≥4500cd/㎡
Scan Method 1/40S 1/32S 1/16S
Cabinet Size (mm) 500*500*75mm 500*500*75mm 500*500*75mm
Module Size (mm) 250*250*17mm 250*250*17mm 250*250*17mm
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Cabinet Weight ≤7.5kg ≤7.5kg ≤7.5kg
Cabinet Maintenance Full Front/Rear Service Full Front/Rear Service Full Front/Rear Service
Max Power Consumption/㎡ 700W 700W 700W
Average Power Consumption/㎡ 180W 180W 180W
Refresh Rate 7680HZ 7680HZ 7680HZ
Grey Scale 14BIT 14BIT 16BIT
Viewing Angle H140°, V140°
Input Voltage AC100~240V(50-60Hz)
Working Temperature ﹣40℃－﹢70℃
Working Humidity 10%－90%RH
Protection Level IP65
Color Temperature 3000-9500K
Certifications EMC/CE/ROHS/CCC/FCC/BIS
