Specifications
Brand Name :
GCL
Model Number :
Gspark
Certification :
EMC/CE/ROHS/CCC/FCC/BIS
Place of Origin :
Guangdong, China
MOQ :
Min. order: 20
Price :
Negotiable
Delivery Time :
15-20Days
Packaging Details :
Flightcase
Application :
Indoor
Type :
LED
Color :
full color
Panel Size :
640*480mm
use :
advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment
Pixel Pitch :
1.25mm\1.538mm\1.86mm\2mm
Specification :
Video Wall
Touch Screen Type :
Capacitive
Brightness :
600-700nits
Lifespan (hours) :
100,000
IP Rating :
34
HS Code :
8528591090
Resolution :
2K-4K
View Angle（H/V） :
H160°/V140°
Description

Hard connection between cabinet Led Video Wall P1.25 1.538 P1.86 P2 P2.5 Led Display Indoor Led Screen for Showing Room Big Led Screen

Features:
100% Front service, designed for wall-mounting projects'
63mm depth, ultra slim cabinet design;
7.5KG die casting cabinet, more lighter;
power and signal card double backup solution;
No structure, mounted on wall directly, easy installation

Hard connection between cabinet

The hard-wired design integrates all connection lines inside the cabinet or module. During installation, simply dock the modules or cabinets via interfaces to complete splicing, greatly streamlining the process and reducing installation time.
Enhanced Maintenance Efficiency:
With internalized wiring, maintenance teams can quickly locate and resolve issues, minimizing after-sales problems caused by line failures and reducing the difficulty and cost of maintenance.
Improved Aesthetics:
Traditional LED displays often have messy cables behind them, compromising visual appeal. In contrast, hard-wired displays feature fully concealed wiring, creating a clean and organized rear appearance that significantly enhances aesthetics.
Space Savings:
By reducing cable usage, the design minimizes weight and thickness, saving space and facilitating front-maintenance installations without requiring rear access clearance.
Higher Stability and Reliability:
Hard-wiring reduces external connections, lowering risks of wire aging and short circuits, thereby improving display stability and reliability.
Reduced Maintenance Costs:
Internalized wiring minimizes the likelihood of wire damage, resulting in lower maintenance expenses and after-sales service rates.

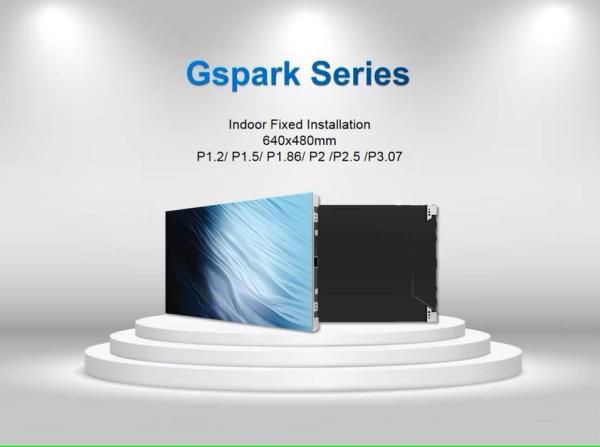

Parameters of Gspark Series

Product P1.2 P1.5 P1.8 P2
Pitch 1.25mm 1.538mm 1.86mm 2mm
Density(pixels/㎡) 640000 422500 288906 250000
LED Type SMD1010 SMD1212 SMD1515 SMD1515
Brightness 600nits 600nits 700nits 700nits
Panel Size 640x480mm
Module Size 320x160mm
Panel Material Die-casting Aluminum
Panel Weight 7kg
Maintenance Full Front Service
Max Power Consumption 450W/㎡
Average Power Consumption 150W/㎡
Refresh Rate 3840Hz
Grey Scale 13-16bit
Viewing Angle H160°,V160°
Voltage AC100~240V(50-60Hz)
Certifications EMC/CE/ROHS/CCC/FCC/ISO
