Network Control Large Outdoor LED Video Wall With P10 Rgb LED Module
Network Control Large Outdoor LED Video Wall With P10 Rgb LED Module
Network Control Large Outdoor LED Video Wall With P10 Rgb LED Module
Network Control Large Outdoor LED Video Wall With P10 Rgb LED Module
Network Control Large Outdoor LED Video Wall With P10 Rgb LED Module
Network Control Large Outdoor LED Video Wall With P10 Rgb LED Module
Network Control Large Outdoor LED Video Wall With P10 Rgb LED Module
Network Control Large Outdoor LED Video Wall With P10 Rgb LED Module
Network Control Large Outdoor LED Video Wall With P10 Rgb LED Module
Network Control Large Outdoor LED Video Wall With P10 Rgb LED Module
Network Control Large Outdoor LED Video Wall With P10 Rgb LED Module
Network Control Large Outdoor LED Video Wall With P10 Rgb LED Module
Specifications
Place of Origin :
Guangdong, China
Model Number :
GA
Brand Name :
GCL
Price :
Price to be discussed
MOQ :
Min. order: 20
Certification :
EMC/CE/ROHS/CCC/FCC/BIS
Application :
Outdoor
Type :
LED
Color :
Full Color
Panel Size :
960*960 mm
Supplier Type :
Original manufacturer
Media Available :
datasheet, Photo, EDA/CAD Models, Other
use :
advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment
Pixel Pitch :
6.67mm
Specification :
Digital Poster, Video Wall
Touch Screen Type :
Capacitive
Brightness :
6000-10000nits
pixel density :
22500 dots/㎡
Contrast Ratio :
9000:1
Color Depth :
256
Lifespan (hours) :
100,000
IP Rating :
IP65
HS Code :
8528591090
Resolution :
2k-4k
View Angle（H/V） :
H160°,V120°
Description
Product Description
Product P8 P10 P10D
Pitch 8mm 10mm 10mm
Density(pixels/m²) 15625 10000 10000
LED Type SMD2727 SMD2727 DIP346
Brightness 6500nits 6500nits 10000nits
Scan Method 1/4 1/2 1/4

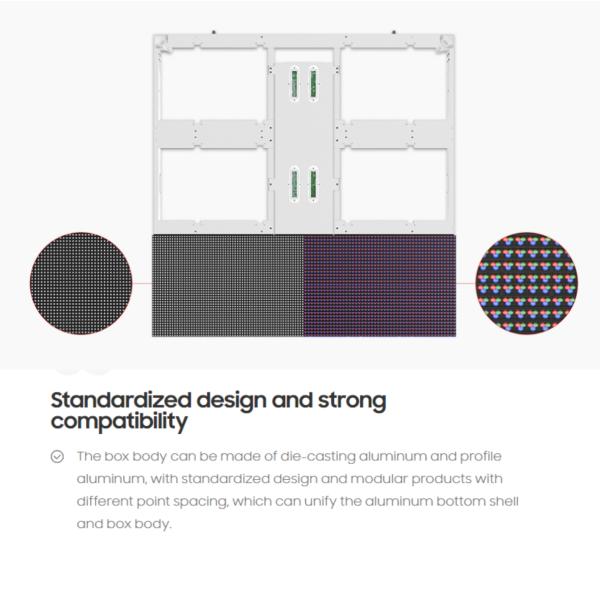

Panel Size 960×960mm
Module Size 480×320mm

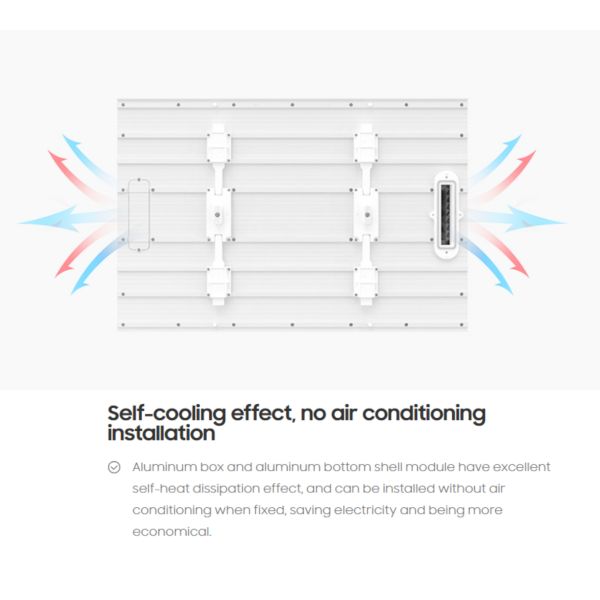

Panel Material Profile Aluminum
Panel Weight 29.5kg 29.5kg 38.8kg
Protection Level IP65
Maintenance Front&Rear Service
Max Power Consumption 650W/㎡ 650W/㎡ 350W/㎡
Average Power Consumption 210W/㎡ 210W/㎡ 110W/㎡
Refresh Rate 3840Hz
Grey Scale 13-16bit
Viewing Angle H140°,V120° H140°,V120° H100°,V50°
Voltage AC96~264V(50-60Hz)
Working Temperature -30℃ to 60℃
Working Humidity 10%-90%RH
Color Temperature 3000-9500K
Certifications CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO
