P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen
P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen
P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen
P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen
P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen
P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen
P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen
P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen
P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen
P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen
P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen
P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen
Specifications
Place of Origin :
Guangdong, China
Model Number :
Gsurface-III
Brand Name :
GCL
Packaging Details :
Packing with Flight case & Wooden box & Hard paper box
Supply Ability :
5000 Square Meter/Square Meters per Month
Price :
1 - 29 pieces $779， 30 - 59 pieces $769 ，>= 60 pieces $759
MOQ :
Min. order: 20
Certification :
EMC/CE/ROHS/CCC/FCC/BIS
Application :
Outdoor
Color :
FULL COLOR
Panel Size :
320*320mm
Supplier Type :
ODM, OEM
Media Available :
EDA/CAD Models
use :
advertising publish, display of dishes
Pixel Pitch :
8mm, P3.91 P4.81 P5.92 P8
Specification :
Digital Poster, Video Wall
Usage :
Outdoor Waterproof
Display Function :
Animation
Brightness :
6000nits
Protection level :
IP65
Viewing angle :
140/140 Degree
Refresh rate :
1920Hz-3840Hz
LED chip :
Nationstar
Cabinet material :
Iron
Control system :
Novastar
Warranty :
3 Years
Port :
Shenzhen
Description
Product Details

100% Front & Rear Maintenance

Flexible Location for Modules

The same module can be placed on either the right or left side.

Excellent Heat Dissipation

AC is not needed

Special heat dissipation module design+cabinet fan

Longer lifespan

Solid & Safe

Screws that fix the power box onto the cabinet don't fall off;

The wirerope makes sure the power box won't fall off.

Multiple Cabinet Colors

Standard cabinet color: white

Any other colors are doable

Cabinet Handles

Easy for moving the cabinets

Multiple Installation Ways

Straight wall mounted

Curve wall mounted

Pillar mounted

ighter&Thinner Cabinet = Lower Cost for Steel Structure

Parameters of Gsurface-II Series

Name P3.91 P4.81 P5.2
Module 　 　 　
LED Type SMD1921 SMD1921 SMD1921
Pixel Pitch(mm) 3.90625 4.8077 5.208
Module Resolution 64*64 52*52 48*48
Module Size(mm) 250*250 250*250 250*250
Scan Method 1/16s;1/8s 1/7s 1/8s
Cabinet 　 　 　
Module Quantity 4*4 4*4 4*4
Cabinet Resolution 256*256 208*208 192*192
Cabinet Size(mm) 1000*1000*100;Customizable
Cabinet Area(㎡) 1
Cabinet Material Profile Aluminum
Density(pixels/㎡) 65536 43264 36864
Protection Level IP65
Optics 　 　 　
Brightness(nits) 5500; 6500 5500 5500
Calibration Support Single-dot Calibration
Color Temperature 1700-9500K Adjustable
Viewing Angle H140°,V140°
Light Decay Rate <3%
Contrast Ratio 9000:01:00
Grey Scale 13-16bit
Electric 　 　 　
Max Power Consumption/㎡ 680W; 880W 640W 640W
Average Power Consumption/㎡ 230W; 290W 210W 210W
Cabinet Maintenance Front Service
Input Voltage AC100~240V(50-60Hz)

Why Choose Us?


Shenzhen GCL Electronics CO.,Ltd, founded in 1999 with the registered capital of 10 million dollars, has been a professional manufacturer of LED screen for more than 21 years. GCL is a high-tech enterprise which integrates researching, development,manufacturing, engineering, installation, sales and aftersales services. Headquartered in Shenzhen, China.GCL is staffed with over 300 employees and in our dust free workshop which covers more than 100,000 square feet, there are more than 30 high-speed production machines with high accuracy and more than 10 modern assembly lines. The annual capacity of GCL is over two hundred millions USD and it has been granted with more than ten LED application products-related patents and certifications in compliance with the ISO9001, ISO1400 and ISO18001 standards. Our products have also been certified with multiple standards, including EMC, CE, ROHS, CCC, FCC, ISO. GCL has finished more than 10,000 led screen and led lighting projects all over the world, including the international government projects in 2010 World Cup in South Africa, 2010 Shanghai Expo, 2014 China-Asian Expo, 2015 Milan Expo, etc.

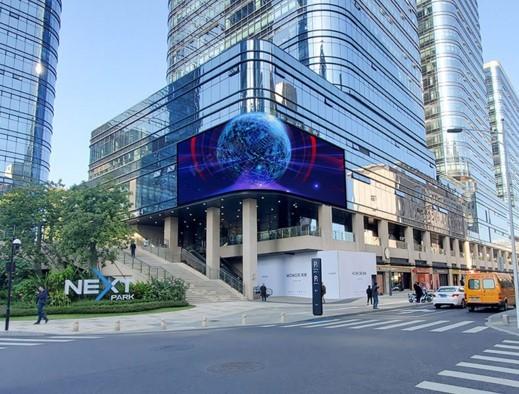

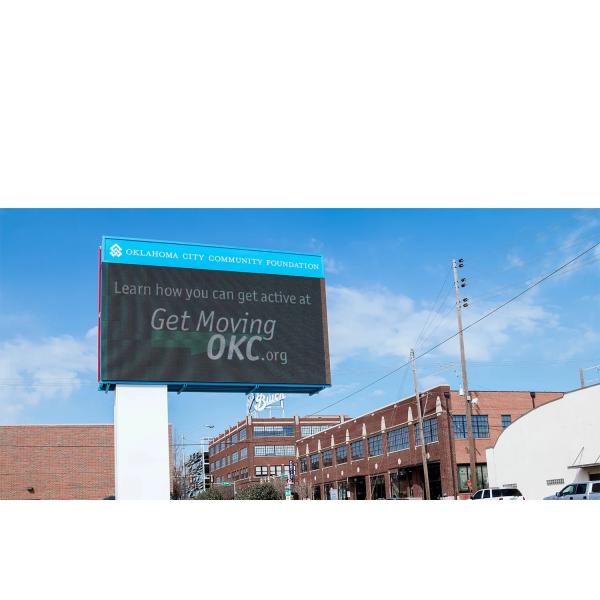

Customer case



P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen

Production Process
P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen

P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen

P3.91mm\P4.81mm\P5.2mm High Definition Outdoor Advertising Screen
