Specifications
Brand Name :
GCL
Model Number :
Gsurface-IV
Certification :
CE/RoHS/EMC/TUV/UL/CCC/FCC/ISO
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
2000 Square Meter/Square Meters per Month
Delivery Time :
20 days
Packaging Details :
Wooden case
Pitch :
P6.67
LED Type :
SMD2727
Brightness :
6500nits
Panel Weight :
25kg
Module Size :
480*320mm
Panel Size :
960*960mm
Maintenance :
Front & Rear service
Protection Level :
IP65
Refresh Rate :
3840Hz
Description
Media Facade LED Display Solution
The Gsurface IV Series is a high-performance outdoor LED display engineered for long-term, stable operation in demanding outdoor environments. Utilizing premium LED beads, it delivers exceptional brightness and crystal-clear visibility even under direct sunlight conditions.
This versatile series supports multiple pixel pitches including P4, P5.7, P6.67, P8, and P10, making it adaptable to various viewing distances and project specifications. The robust profile aluminum cabinet construction provides strength, lightweight handling, and superior resistance to outdoor elements.
With an IP65 protection rating, the display ensures reliable performance in rain, dust, and harsh weather conditions, maintaining optimal operation in temperatures ranging from -20°C to 60°C.
Key Features
  • Efficient self-cooling performance for extended lifespan
  • 3840Hz high refresh rate for optimal visual experience
  • Modular design for easy maintenance and serviceability
  • High brightness output of 5500-6500 nits
  • Weather-resistant IP65 protection
Technical Specifications
Pixel Pitch P4-P10
LED Type SMD1921-2727
Brightness 5500-6500 nits
Panel Material Profile Aluminum
Panel Size 960 * 960 mm
Panel Weight 25 kg
Protection Level IP65
Average Power Consumption 210 W/m²
Working Temperature -20°C to 60°C
Working Humidity 10% - 90% RH
Product Images

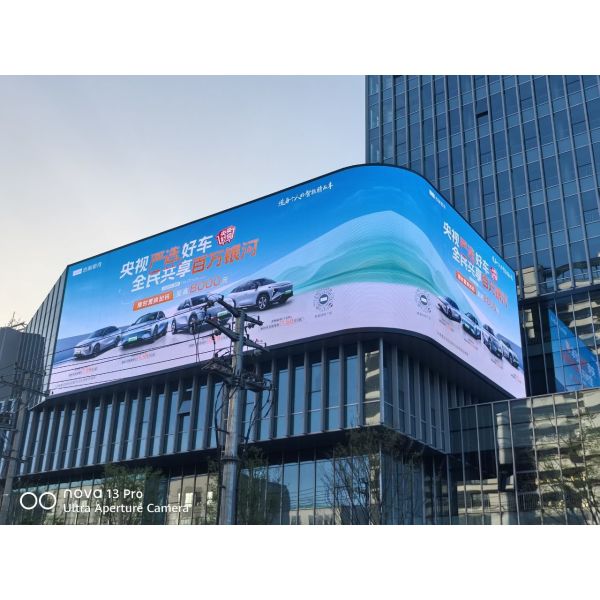

960*960mm Media Facade LED Display with 6500nits Brightness IP65 Protection and 3840Hz Refresh Rate for Outdoor Use

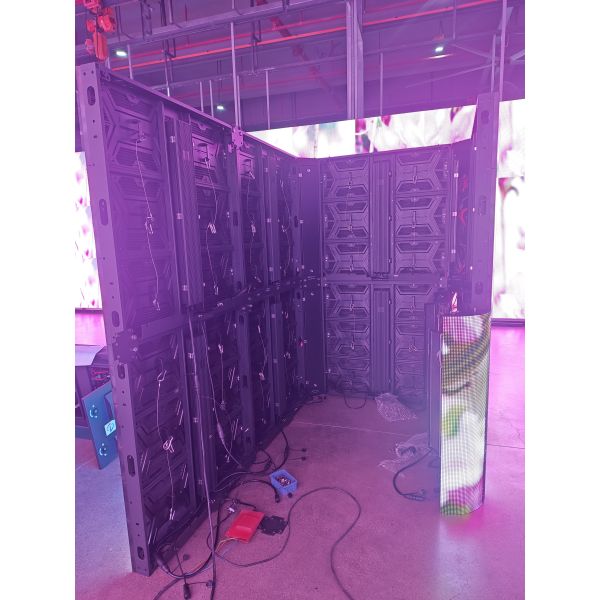

960*960mm Media Facade LED Display with 6500nits Brightness IP65 Protection and 3840Hz Refresh Rate for Outdoor Use

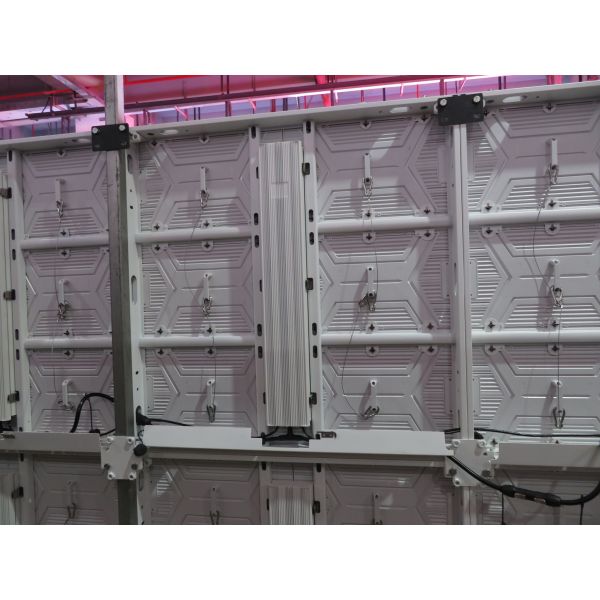

960*960mm Media Facade LED Display with 6500nits Brightness IP65 Protection and 3840Hz Refresh Rate for Outdoor Use
Send your message to this supplier
Send Now

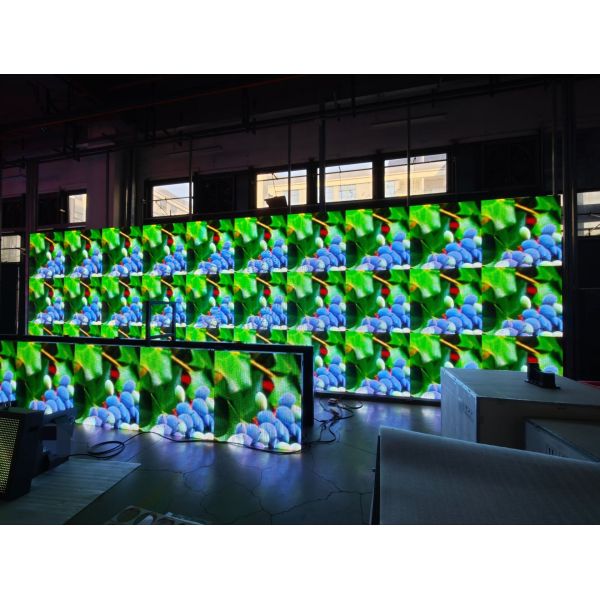

960*960mm Media Facade LED Display with 6500nits Brightness IP65 Protection and 3840Hz Refresh Rate for Outdoor Use
