Indoor LED Display Screen with 7680Hz High Refresh Rate Front Maintenance Design and Lightweight Construction for Quick Wall Installation
Indoor LED Display Screen with 7680Hz High Refresh Rate Front Maintenance Design and Lightweight Construction for Quick Wall Installation
Indoor LED Display Screen with 7680Hz High Refresh Rate Front Maintenance Design and Lightweight Construction for Quick Wall Installation
Indoor LED Display Screen with 7680Hz High Refresh Rate Front Maintenance Design and Lightweight Construction for Quick Wall Installation
Indoor LED Display Screen with 7680Hz High Refresh Rate Front Maintenance Design and Lightweight Construction for Quick Wall Installation
Indoor LED Display Screen with 7680Hz High Refresh Rate Front Maintenance Design and Lightweight Construction for Quick Wall Installation
Indoor LED Display Screen with 7680Hz High Refresh Rate Front Maintenance Design and Lightweight Construction for Quick Wall Installation
Indoor LED Display Screen with 7680Hz High Refresh Rate Front Maintenance Design and Lightweight Construction for Quick Wall Installation
Indoor LED Display Screen with 7680Hz High Refresh Rate Front Maintenance Design and Lightweight Construction for Quick Wall Installation
Indoor LED Display Screen with 7680Hz High Refresh Rate Front Maintenance Design and Lightweight Construction for Quick Wall Installation
Specifications
Brand Name :
GCL
Model Number :
Ghalo
Certification :
CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO
Place of Origin :
China
MOQ :
20
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
depend on quantity
Delivery Time :
7-21days
Packaging Details :
wooden case
Refresh Rate :
7680HZ
Protection Class :
Front IP68, Back IP65, B1 Fireproof
Material :
Aluminum Die-Casting
Pixelpitch :
Variable (e.g., 1.5\1.953mm)
Colors :
281trillion
Lifespan :
≥100,000 hours
Materials :
magnesium alloy
Maintenance Way :
Front/Rear
Working Humidity :
10%-90%RH
Scanning Mode :
1/2
Weight :
22kgs/square meter
Refresh Frequency :
3840-7680Hz
Led Type :
SMD1010 SMD1515
Working Voltage :
100V /240V
Cabinet Dimension :
1000X250mm 750*250mm LED cabinet
Description
Indoor High-definition LED Display Screen P1.953, P2.6mm
Professional indoor LED video wall display designed for quick wall installation with exceptional visual performance and maintenance efficiency.
Key Features
  • Ultra High Definition Display: 7680Hz high refresh rate technology reduces screen flicker and delivers smoother visuals with exceptional clarity and fine picture detail reproduction.
  • 100% Front Maintenance Design: All modules, power supplies, and accessories can be removed from the front. Magnetic suction module design enables quick and effortless servicing.
  • Flexible Splicing Options: Available in two box sizes (750*250mm and 1000*250mm) with 250*250mm modules for free combination and assembly to fit various installation requirements.
  • Hard Link Hidden Design: Top and bottom hard link signal source interfaces provide seamless connections, eliminating messy cables and ensuring clean, professional installations.
  • Lightweight Construction: Die-cast aluminum boxes weigh only 4.2-5.5kg with a slim 38mm profile. Enables wall mounting without structural support.
  • Wall Mount Installation: Steel-free frame structure with built-in connecting pieces and wall screws between boxes. Easy wall mounting without requiring additional steel framework.

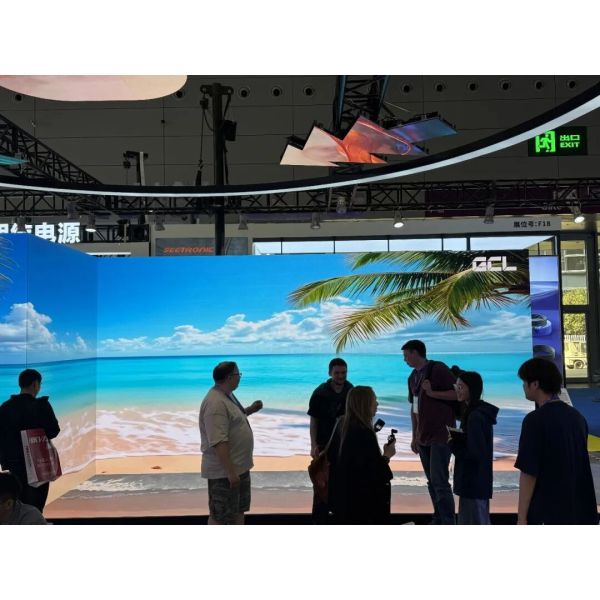

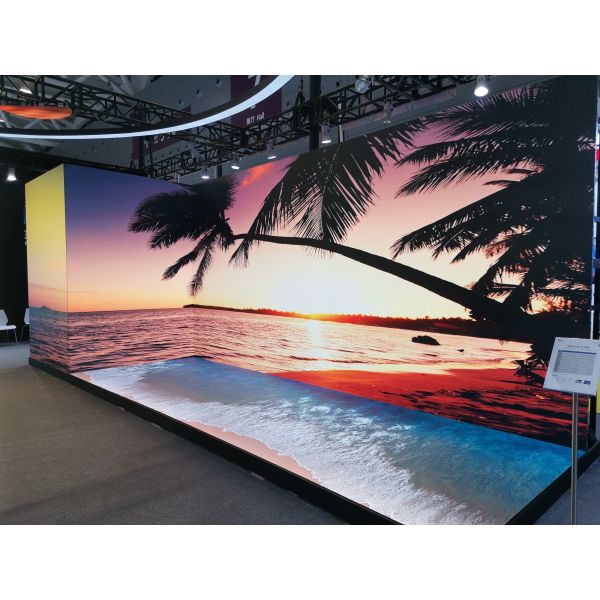

Main Usage Scenarios
  • Indoor video wall displays
  • Multifunctional conference room display screens
  • Monitoring center display screens
  • Indoor advertising screens
Indoor LED Display Screen with 7680Hz High Refresh Rate Front Maintenance Design and Lightweight Construction for Quick Wall Installation Indoor LED Display Screen with 7680Hz High Refresh Rate Front Maintenance Design and Lightweight Construction for Quick Wall Installation Indoor LED Display Screen with 7680Hz High Refresh Rate Front Maintenance Design and Lightweight Construction for Quick Wall Installation
Product Specifications
Parameter P1.5 P1.9 P2.6
Pixel Pitch (mm) 1.5625 1.953 2.604
Pixel Density (/m²) 409,600 262,144 147,456
LED Model SMD1010 SMD1515 SMD1515
White Balance Brightness (cd/m²) 1000 1000 1000
Scanning 1/40 1/32 1/24
Cabinet Size (mm) 1000*250*38 / 750*250*38
Module Size (mm) 250*250*3
Cabinet Material Die-cast Aluminum
Cabinet Weight 4.2kg / 5.5kg
Protection Level IP31
Maintenance Method Front Maintenance
Max Power Consumption (/m²) 600W
Avg. Power Consumption (/m²) 150W
Refresh Rate 3840-7680Hz
Grayscale Level 13-16bit
Viewing Angle H140°, V140°
Input Voltage AC100~240V (50-60Hz)
Operating Temperature -20℃~+60℃
