Specifications
Brand Name :
GCL
Model Number :
Gmesh
Certification :
EMC/CE/ROHS/CCC/FCC/BIS
Place of Origin :
China Guangdong
MOQ :
50
Price :
to be determined
Payment Terms :
T/T,D/P,D/A,L/C
Supply Ability :
depend on customer quantity
Delivery Time :
15-20
Packaging Details :
wooden case/flight case
Optimum Viewing Angle :
H:120°, V:120°
Processing :
16 bit
Waterproof :
≥IP65
Drive Mode :
1/8,Static
Pitch :
10.4-8.3mm，7.8-3.9mm,15.625mm,25mm,31.25mm
Power Requirements :
AC100~240V, 50~63Hz
Life Span :
100000hours
Refresh Frequency :
≥3840Hz
Power Input :
220V/110V
average power consumption :
120W/㎡
Frame Frequency :
60Hz
Cabinet Weight :
9Kg
Description

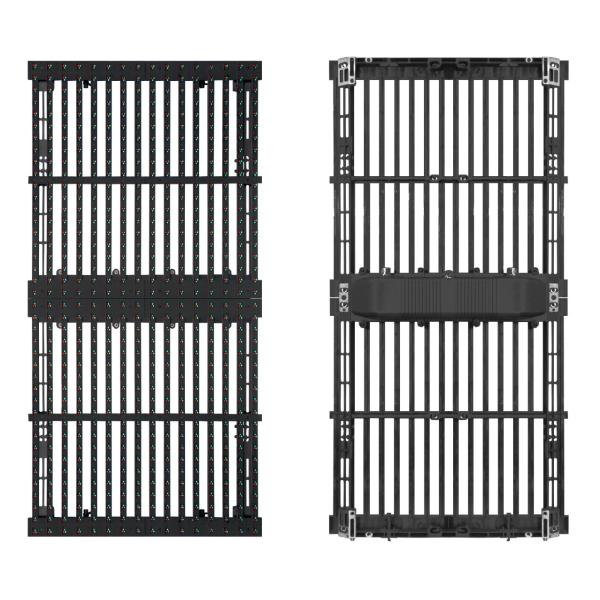

Suitable For Installing Lightweight Waterproof Grille Screens With A Light Transmittance Of 65% On Building Glass Exterior Walls P10.4-8.3 7.8-3.9mm

Exceptional Transparency | Creative Display


2-in-1 Grid LED for Fixed & Rental Applications


Product Type


Available in Pixel Pitches: P7.8-3.9 / P10.4-8.3 / P16 / P25 / P31.25mm

✨ 65% Ultra-High Transparency

Unobstructed natural light for outdoor installations, with industry-leading heat dissipation and ultra-low wind resistance.

Suitable For Installing Lightweight Waterproof Grille Screens With A Light Transmittance Of 65% On Building Glass Exterior Walls P10.4-8.3 mm P7.8-3.9mm

Suitable For Installing Lightweight Waterproof Grille Screens With A Light Transmittance Of 65% On Building Glass Exterior Walls P10.4-8.3 mm P7.8-3.9mm

Product P7.8-3.9 P10.4-8.3 P10 P16-A P16-B P16-C P25 P31.25
Pitch 7.8-3.9mm 10.4-8.3 10.4mm 15.625mm 15.625mm 15.625-31.25mm 25-31.25mm 31.25mm
Density(pixels/m²) 32768 11520 9216 4096 4096 2048 1280 1024
LED Type SMD1921 SMD2727 SMD2727 SMD3535 DIP346 DIP346 DIP346 DIP346
Brightness 5500nits 5500nits 5500nits 6000nits 10000nits 10000nits 10000nits 10000nits
Scan Method 1/8 1/4 1/3 Static Static Static Static Static
Panel Size 500×1000mm
Module Size 250×500mm
Panel Material Die-casting Aluminum
Panel Weight 9kg 9Kg 9kg 9kg 10.5kg 10.5kg 10.5kg 10.5kg
Protection Level IP65
Maintenance Front&Rear Service
Max Power Consumption 680W/㎡ 680W/㎡ 680W/㎡ 680W/㎡ 350W/㎡ 350W/㎡ 350W/㎡ 350W/㎡
Average Power Consumption 220W/㎡ 220W/㎡ 220W/㎡ 220W/㎡ 110W/㎡ 110W/㎡ 110W/㎡ 110W/㎡
Refresh Rate 3840Hz
Grey Scale 16bit
Viewing Angle H140°,V120° H140°,V120° H140°,V120° H140°,V120° H100°,V50° H100°,V50° H100°,V50° H100°,V50°
Voltage AC100~240V(50-60Hz)
Working Temperature ‘-30℃ to 60℃
Working Humidity 10%-90%RH
Color Temperature 3000-9500K
Certifications CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO
