Specifications
Brand Name :
GCL
Model Number :
GhaloP1.25 P1.56.P1.953
Certification :
EMC/CE/ROHS/CCC/FCC/BIS
Place of Origin :
China
MOQ :
Min. order: 20
Price :
Price to be discussed
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
15-20Days
Packaging Details :
Single package size:60X60X30 cm
Product name :
Ghalo Series
Usage :
Indoor Rental
Panel size :
1000×250×38 mm/ 750×250×38mm
Module size :
250*250mm*3mm
Viewing Angle :
H140°,V140°
Refresh :
7680Hz
Material :
Die-Cast Aluminum
Panel weight :
4Kg
Ip rating :
IP31
Description

Ghalo Series 1000*250mm 750*250mmIndoor Long Strip LED Display With Quick Wall-Mounted Installation (,P1.56, P1.953,P2.6mm)


Product Features

Ultra-thin and lightweight design, with a single cabinet weight of only 4kg.

No steel structure required, direct wall-mounted installation.

100% front maintenance design.

Two cabinet sizes (7250250mm and 1000250mm) support mixed assembly.

Case 1: Ghalo Series Display - Wall-Mounted Smart Conference Room

A German company's smart conference room features a square screen composed of Ghalo P2.6mm modules at the center of the rectangular conference table. Each side of the screen is made of 750250mm cabinets, with a display size of 12501500mm per side. The high-definition image quality allows participants around the table to view meeting materials head-on from any direction.The main screen in the conference room is a 1500*4000mm LED display of the same specification, installed on the wall to save space while being aesthetically pleasing and practical. Equipped with a dedicated video controller, it supports split-screen display of 2, 4 up to 16 windows, suitable for command centers and multi-site distributed meeting scenarios.

Ultra-thin Front Maintenance Ghalo Series LED Display with Mixed Assembly for Indoor UseUltra-thin Front Maintenance Ghalo Series LED Display with Mixed Assembly for Indoor Use

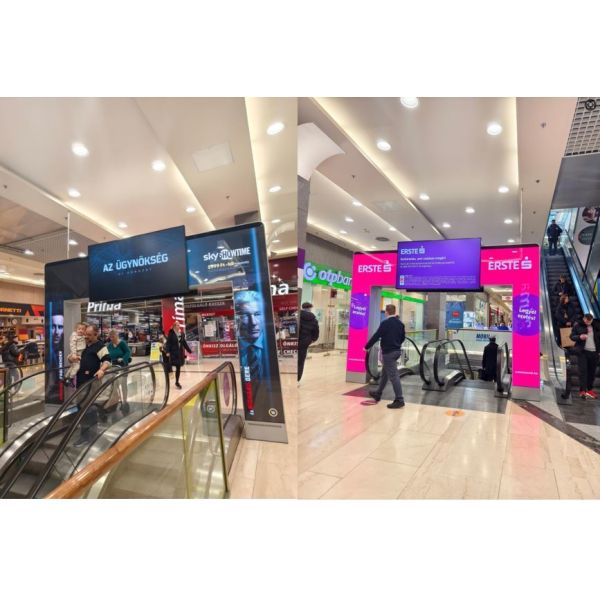

Case 2: Double-Sided LED Advertising Archway in Shopping Mall

Located in Budapest, Hungary, this project also adopts Ghalo P2.6mm modules with 750*250mm cabinets. A total of 11 double-sided archways (103㎡ in total) were installed using the wall-mounted method, creating LED archway displays suitable for close-range viewing and enhancing advertising reach.

Ultra-thin Front Maintenance Ghalo Series LED Display with Mixed Assembly for Indoor Use



Ghalo series Parameters:

Parameter P1.5 P1.9 P2.6
Pixel Pitch (mm) 1.5625 1.953 2.604
Pixel Density (/m²) 409,600 262,144 147,456
LED Model SMD1010 SMD1515 SMD1515
White Balance Brightness (cd/m²) 1000 1000 1000
Scanning 1/40 1/32 1/24
Cabinet Size (mm)
1000×250×38 / 750×250×38
Module Size (mm) 250×250×3
Cabinet Material Die-cast Aluminum
Cabinet Weight 8.5kg / 10.5kg
Protection Level IP31
Maintenance Method Front Maintenance
Max Power Consumption (/m²) 600W
Avg. Power Consumption (/m²) 150W
Refresh Rate 3840-7680Hz
Grayscale Level 13-16bit
Viewing Angle H140°, V140°
Input Voltage AC100~240V (50-60Hz)
Operating Temperature -20℃~+60℃



Ultra-thin Front Maintenance Ghalo Series LED Display with Mixed Assembly for Indoor Use
