Solar Power Scrolling Outdoor LED Display Screen With Remote Control and IP65 Protection Level
Solar Power Scrolling Outdoor LED Display Screen With Remote Control and IP65 Protection Level
Solar Power Scrolling Outdoor LED Display Screen With Remote Control and IP65 Protection Level
Solar Power Scrolling Outdoor LED Display Screen With Remote Control and IP65 Protection Level
Solar Power Scrolling Outdoor LED Display Screen With Remote Control and IP65 Protection Level
Solar Power Scrolling Outdoor LED Display Screen With Remote Control and IP65 Protection Level
Solar Power Scrolling Outdoor LED Display Screen With Remote Control and IP65 Protection Level
Solar Power Scrolling Outdoor LED Display Screen With Remote Control and IP65 Protection Level
Specifications
Brand Name :
GCL
Model Number :
Grock
Certification :
EMC/CE/ROHS/CCC/FCC/BIS
Place of Origin :
Guangdong, China
MOQ :
Min. order: 20
Price :
Price to be discussed
Supply Ability :
2000 Square Meter/Square Meters per Month
Packaging Details :
plywood,flight case,paper board
Application :
Outdoor
Color :
FULL COLOR
Panel Size :
1000*1000
Brightness :
5500-6000nits
Scan Method :
2S
Cabinet Size :
Customized
Module Size :
250*250mm
Cabinet Material :
Profile Aluminum
Protection Level :
IP65
Cabinet Maintenance :
Rear Service
Pixel Pitch :
P3.91\4.81mm
Port :
shenzhen
Description


Gurface-II Outdoor Large-Scale Sheet Metal Cabinet, a preferred solution for outdoor display projects, is tailor-made for complex outdoor environments with excellent performance and adaptability. Boasting 10,000nits high brightness, it ensures clear images even under direct sunlight, while the 3,840Hz high refresh rate eliminates shaking, ghosting and water ripples for flawless display.

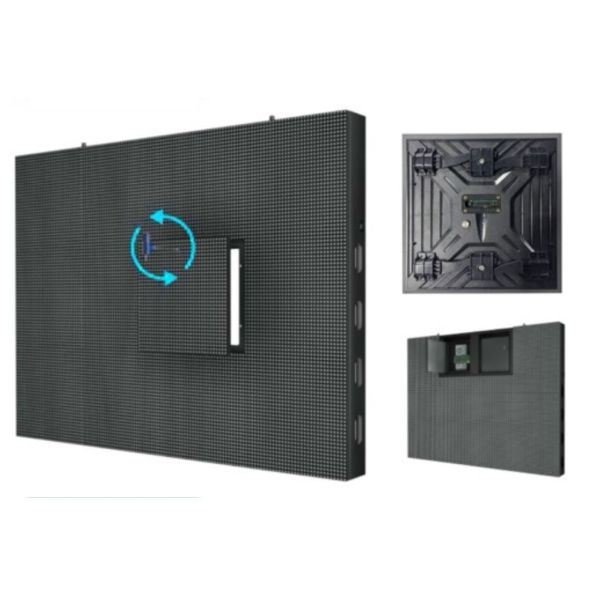

The cabinet adopts high-quality steel/aluminum structure with exquisite craftsmanship for stable outdoor fixed installation. Equipped with professional waterproof box and module, it achieves IP65 protection level, supported by 3-layer conformal coating that safeguards ICs and electronic components from dust and humidity. The innovative double-layer door and neat, robust signal cables enhance protection and facilitate front/back maintenance without complex disassembly.
With 13-24bit high grayscale and high contrast, the product delivers vivid, sharp images. Its high-quality unit boards feature seamless splicing (seam <0.1mm), good flatness and uniform color distribution; 45° modules are available for right-angle assembly, and customization of any size or special shapes (cubes, cylinders, curved surfaces) is supported. It covers mainstream small-pitch layouts like P2.5, P3, P3.8 to meet diverse clarity needs.
As a mature, reliable product widely sold to America, Europe, Middle East, Africa, etc., it has been proven to operate stably for over 5 years in practical cases. With low power consumption, it supports 24/7 stable operation, and the module lifespan reaches 100,000 hours. Ideal for outdoor advertising and DOOH, it adapts to various harsh weather conditions like wind, sand, rain and snow.

Solar Power Scrolling Outdoor LED Display Screen With Remote Control and IP65 Protection Level

Solar Power Scrolling Outdoor LED Display Screen With Remote Control and IP65 Protection Level


Name P3.91 P4.81
Module

LED Type SMD1921 SMD1921
Pixel Pitch(mm) 3.90625 4.8077
Module Resolution 64*64 52*52
Module Size(mm) 250*250 250*250
Scan Method 1/16s;1/8s 1/7s
Cabinet

Module Quantity 4*4 4*4
Cabinet Resolution 256*256 208*208
Cabinet Size(mm) 1000*1000*100;Customizable
Cabinet Area(㎡) 1
Cabinet Material Profile Aluminum
Density(pixels/㎡) 65536 43264
Protection Level IP65
Optics

Brightness(nits) 5500; 6500 5500
Calibration Support Single-dot Calibration
Color Temperature 1700-9500K Adjustable
Viewing Angle H140°,V140°
Light Decay Rate <3%
Contrast Ratio 9000:01:00
Grey Scale 13-16bit
Electric

Max Power Consumption/㎡ 680W; 880W 640W
Average Power Consumption/㎡ 230W; 290W 210W
Cabinet Maintenance Front Service
Input Voltage AC100~240V(50-60Hz)
Performance

Drive Mode Constant Current Drive
Refresh Rate ≥3840Hz
Frame Rate 60Hz
