COB P1.25、P1.5mm High-density And High Refresh Rate Indoor Installation LED Video Wall
COB P1.25、P1.5mm High-density And High Refresh Rate Indoor Installation LED Video Wall
COB P1.25、P1.5mm High-density And High Refresh Rate Indoor Installation LED Video Wall
COB P1.25、P1.5mm High-density And High Refresh Rate Indoor Installation LED Video Wall
COB P1.25、P1.5mm High-density And High Refresh Rate Indoor Installation LED Video Wall
COB P1.25、P1.5mm High-density And High Refresh Rate Indoor Installation LED Video Wall
COB P1.25、P1.5mm High-density And High Refresh Rate Indoor Installation LED Video Wall
COB P1.25、P1.5mm High-density And High Refresh Rate Indoor Installation LED Video Wall
Specifications
Brand Name :
GCL
Model Number :
GTV
Certification :
EMC/CE/ROHS/CCC/FCC/BIS
Place of Origin :
Guangdong, China
MOQ :
Min. order: 20
Price :
Negotiable
Supply Ability :
2000 Square Meter/Square Meters per Month
Delivery Time :
15-22Days
Packaging Details :
plywood,flight case,paper board
Application :
Indoor
Type :
LED
Color :
Full Color
Panel Size :
600*337.5mm, 600*337.5mm
Supplier Type :
Original manufacturer, ODM, OEM
use :
education, broading studio, monitoring center, meeting room, school classroom
Pixel Pitch :
1.25MM, 1.5MM
Specification :
Digital Poster, Video Wall
Brightness :
≥600nits,
Module Size :
300*168.5mm
Weight :
7.5kg
Material :
Die-Casting Aluminum
Protection Level :
IP31
Cabinet Maintenance :
Full Front Service
Refresh Rate :
3840Hz
Description

Wall Installation HD Indoor P0.9 P1.25 High Brightness LED Screen Display


Ultra HD 2K/4K

27-inch screen, easily achieving a 16:9 golden ratio display, with ultra clear 2K/4K image stitching
Features a wide viewing angle, allowing viewers to enjoy clear and lifelike images from different perspectives. Whether watching up close or from a distance, users can experience an exceptional visual experience.

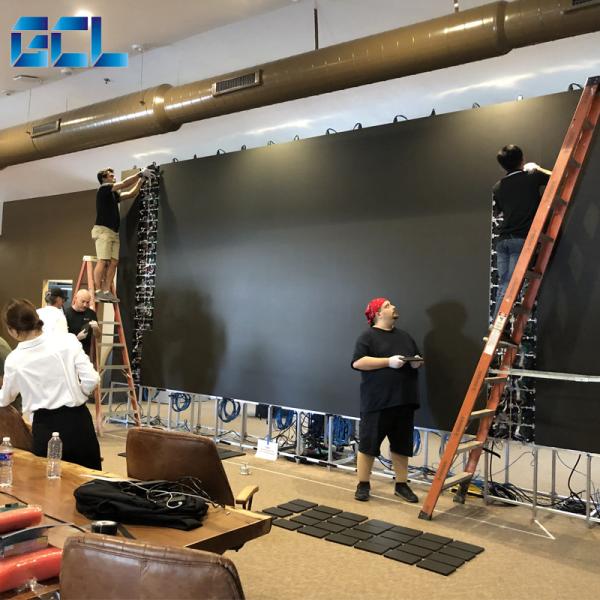

All-front maintenance design

Modules, power supplies, and all other accessories can be removed from the front, making front maintenance and installation more convenient.
The modular magnetic design allows for quick and easy maintenance.


Ultra-thin Design:
The casing features a die-cast aluminum design, making it very lightweight and as thin as 32mm. There’s no need for a steel structure, allowing for easy wall-

mounted installation in a variety of settings.


Wireless Connection:
The module and casing use wireless interconnection, making installation more convenient and saving on wiring and labor costs.
Dual backups for power and signal provide double protection, effectively preventing system malfunctions during power outages.

Wide color gamut, richer color gradients:

By adopting wide color gamut technology, the color gradients become richer and more authentic, enhancing the visual impact of the image.


Flexible Installations
No need for steel structure wall installation,


Application Scenarios:
Business Display
Conference Display
Professional display


Parameters of Gtv Series:

Product P0.9 P1.2 P1.5
Pitch 0.9375mm 1.25mm 1.5625mm
Density(pixels/m²) 1137777 640000 409600
LED Type Flip Chip COB
Brightness 600nits
Scan Method 1/40 1/40 1/48
Panel Size 600×337.5×29.2mm
Module Size 150×168.5mm
Panel Material Die-casting Aluminum
Panel Weight 4.2kg
Protection Level IP34
Maintenance Full Front Service
Max Power Consumption 275W/㎡ 245W/㎡ 205W/㎡
Average PowerConsumption 90W/㎡ 80W/㎡ 70W/㎡
Refresh Rate ≥3840Hz
Grey Scale 13-16bit
Viewing Angle H170°,V170°
Voltage AC100~240V(50-60Hz)
Working Temperature -20℃to 60℃
Working Humidity 10%-90%RH
Color Temperature 3000-9500K
Certifications CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO
