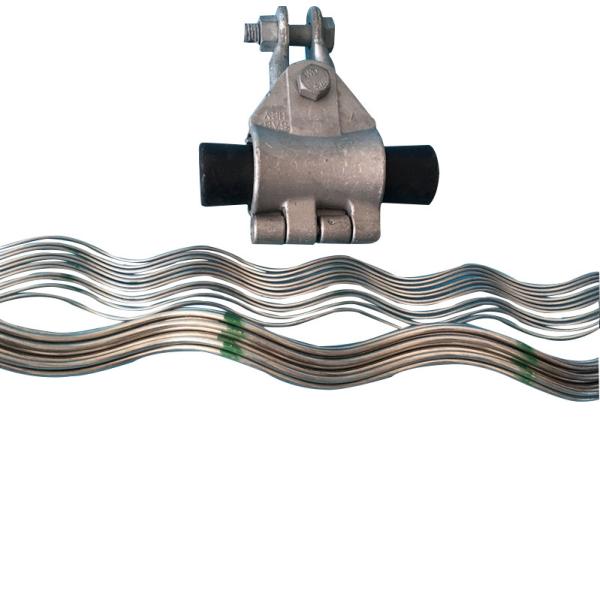

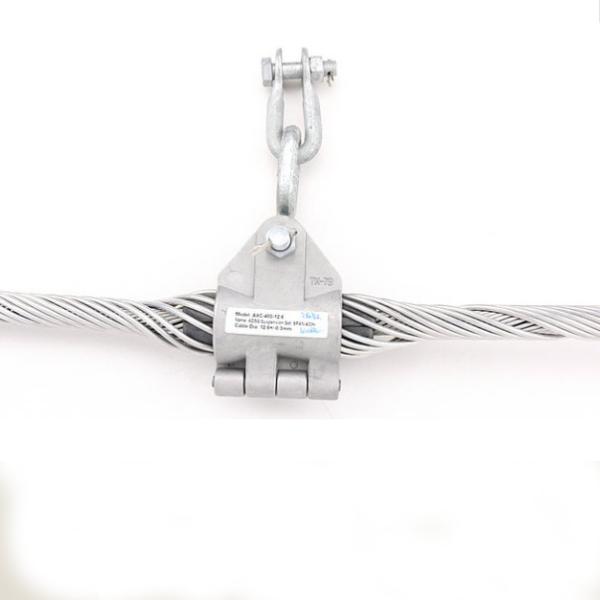

15 Root Alloy Aerial Line ADSS Suspension Clamp
15 Root Alloy Aerial Line ADSS Suspension Clamp
15 Root Alloy Aerial Line ADSS Suspension Clamp
15 Root Alloy Aerial Line ADSS Suspension Clamp
15 Root Alloy Aerial Line ADSS Suspension Clamp
15 Root Alloy Aerial Line ADSS Suspension Clamp
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-LAXJ-100
Certification :
ISO9001
Place of Origin :
ShenZhen,China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500000 pcs per month
Delivery Time :
5-10 working days
Packaging Details :
Standard packing for export
Usage: :
ADSS Cable OPGW Cable
Items name: :
Suspension Clamp
Material: :
alloy
Delivery: :
5-10 working days
Color :
Silver
Range :
10.0~16.0
Description

Power Accessories Aerial Line ADSS Suspension Clamp

Description

helical suspension clamp for ADSS Cable

ADSS preformed suspension clamp is mainly used to support the suspend ADSS cable. It is suitable for the ADSS cable, conductor and grounding

wire on transmission line. It is recommended used on the line with turning angle less than 30 degree.

This helical suspension clamp is the connecting fitting that hangs ADSS cable onto the poles/tower in

the transfer line, the clamp can decrease the static stress of cable at hanging point, improve anti vibration capacity and restrain dynamical stress

caused from wind vibration. It also can ensure that the cable bend doesn't exceed allowable value and cable doesn't generate bend stress. By

installing this clamp, the various harmful stress concentrations can be avoided, so the additional damage wastage shall not occur in the optical

fiber within the cable.

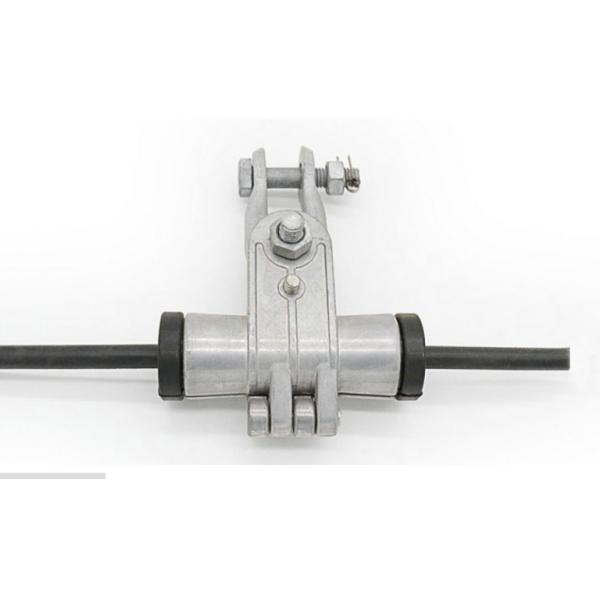

15 Root Alloy Aerial Line ADSS Suspension Clamp

For example

It is specifically designed for ADSS cable with span not more than100-150m and mid support of angle less than 25°.Each support is matched with one set
The broken strngth >15KN,The vertical holding strength >1.5KN
An extra U-4 shackle will be extra offered if you purchase a full set
Type
cable size
single rods
code
root
Wire diamet
er(mm)
Length of finished
product(mm)
LAXJ 1100 150
10.1
11
14
2.3
800
green
LAXJ 1200 150
11.1
12
15
2.3
800
yellow
LAXJ 1300 150
12.1
13
15
2.3
1000
black
LAXJ 1400 150
13.1
14
16
2.3
1000
purple
LAXJ 1500 150
14.1
15
16
2.9
1000
red
