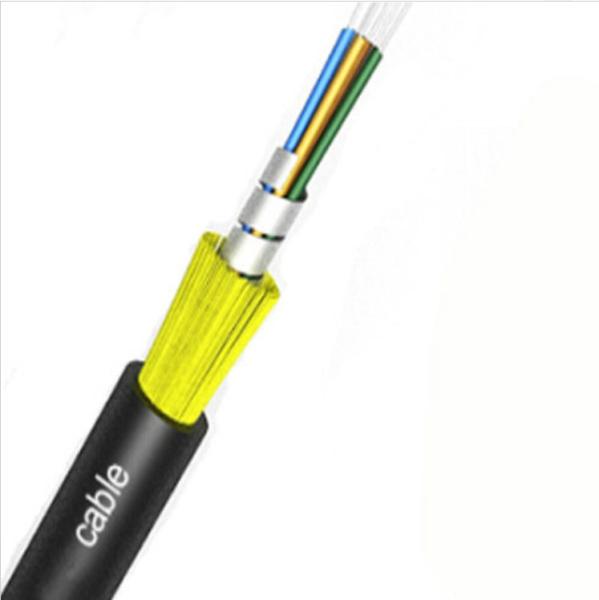

GJFJV Single Spiral Armored Optical Cable For FTTH FTTx
GJFJV Single Spiral Armored Optical Cable For FTTH FTTx
GJFJV Single Spiral Armored Optical Cable For FTTH FTTx
GJFJV Single Spiral Armored Optical Cable For FTTH FTTx
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GJFJV
Certification :
ISO9001
Place of Origin :
ShenZhen，China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 KM per month
Delivery Time :
5-10 working days
Packaging Details :
wooden drum with pallet
odel Number: :
Gjfjv, Gjfjv
Fiber Type: :
single mode/multimode
Fiber count: :
2-48 Cores
Application: :
Telecommunication,Aerial,Duct
Sheath: :
PVC, LSZH, TPU
MOQ: :
2000Meter/Meters
Description

Single Spiral Armored Fiber optical Cable for Indoor FTTH&FTTx Application GJFJV

Description

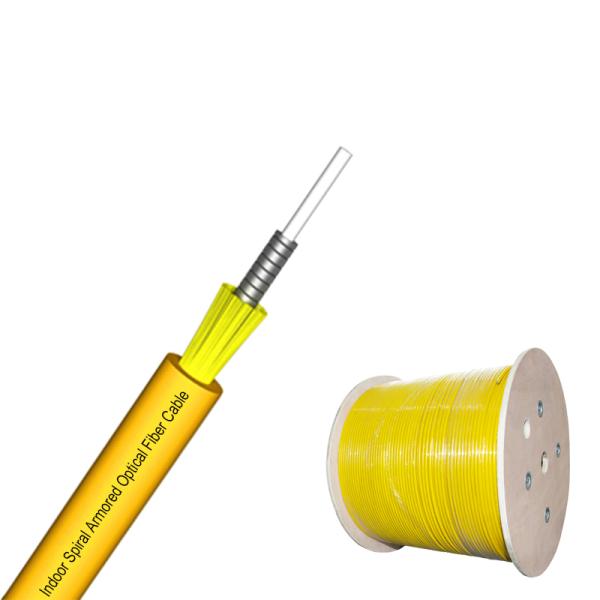

The structure of the cable is put ф900μm or ф600μm tight buffer fibers with aramid yarn,then covered with a layer of PVC or

LSZH inner sheath, then wrapped a layer of flat stainless steel wires and add a layer of woven stainless steel wire, finally into

fiber optic cable with PVC or LSZH sheath.

Feature

1.Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent

2.High strength aramid yarn,high performance outer sheath

3.Small radius, light weight,flexibility,and friendly installation.

4.Good mechanical and environmental performance.

5.Flame retardant outer sheath provide good safety.

Optical Cable Characteristics:

Technical Parameters:
Out Diameter(MM) 2 Weight(KG) 15
2.8 18
3 18
Storage temperature(℃) 40
Min Bending Radius(mm) Long term 10D
Min Bending Short term 20D
Radius(mm)
Min allowable Long term 300
Tensile Strength(N)
Min allowable Short term 1000
Tensile Strength(N)
Crush Load (N/100mm) Long term 500
Crush Load (N/100mm) short term 1000

Fiber characteristic

Fiber style Unit SM SM MM MM MM
G652 G652D 50/125 62.5/125 OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ----
Bandwith 850nm MHZ.KM ---- ---- ≥400 ≥160 Bandwith
1300nm MHZ.KM ---- ---- ≥800 ≥500
Zero dispersion wavelength nm 1300-1324 ≥1302, ---- ---- ≥ 1295,
≤1322 ≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k ≤0.12 ≤0.08 ---- ---- ----
m)
Fibre cutoff wavelength λc nm ≥ 1180, ≥1180, ---- ---- ----
≤1330 ≤1330
Cable sutoff nm ≤1260 ≤1260 ---- ---- ----
wavelength λcc
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical ---- ---- 0.200+/ 0.275+/-0. 0.200+/-0
Aperture(NA) -0.015 15 0.015
Step(mean of bidirectional dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
measurement)
Irregularities over fiber dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
length and point
Dicontinuity
Difference backscatter dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
coefficient
Attenuation uniformity dB/km ≤0.01 ≤0.01
Core dimater um 50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
Coating/chaffinch um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
concentrically error
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ----

GJFJV Single Spiral Armored Optical Cable For FTTH FTTx

Packing & Shipping

1. Standard Packaging

Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.

2. Sheath mark

The following printing(white hot foil indentatioin)is applied at 1-meter intervals.

a. Supplier: zxofc or as cuctomer required

b. Standard Code(Product Type, Fiber Type, Fiber Count)

c. Year of manufacture: xxx

d. Length marking in meters

FAQ

1. Shipping: Generallyby sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc

2. Payment: We accept T/T, L/C and Western Union, just choose what you like

3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.

4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely
