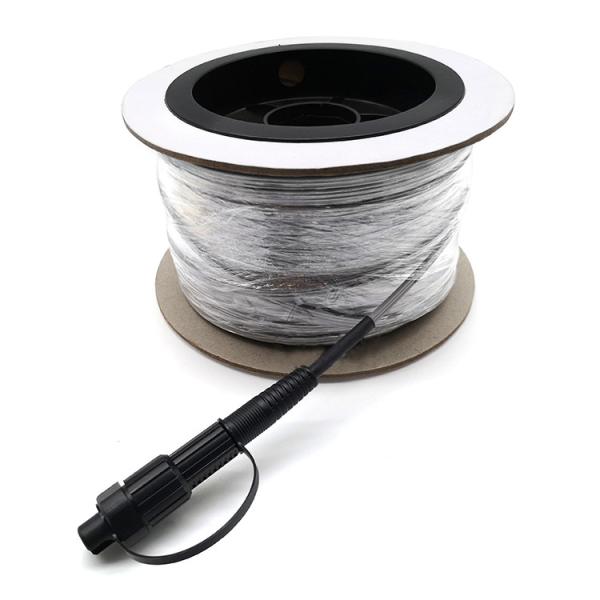

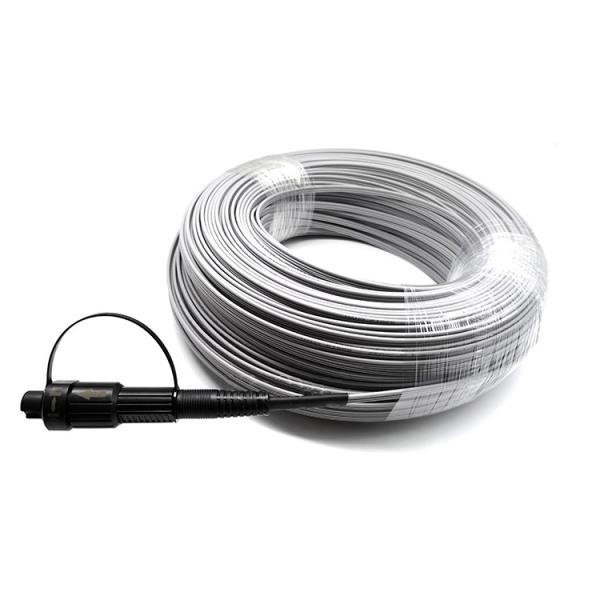

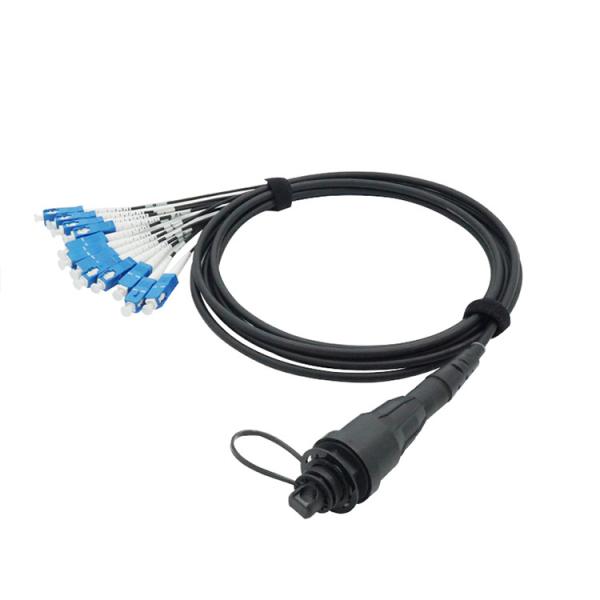

IP68 Waterproof RRH CPRI SC/APC OptiTap Cable Pigtail
IP68 Waterproof RRH CPRI SC/APC OptiTap Cable Pigtail
IP68 Waterproof RRH CPRI SC/APC OptiTap Cable Pigtail
IP68 Waterproof RRH CPRI SC/APC OptiTap Cable Pigtail
IP68 Waterproof RRH CPRI SC/APC OptiTap Cable Pigtail
IP68 Waterproof RRH CPRI SC/APC OptiTap Cable Pigtail
Specifications
Brand Name :
ZXOFC
Model Number :
Waterproof patch cord
Certification :
CE ISO9001
Place of Origin :
ShenZhen,China
MOQ :
5 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 KM per month
Delivery Time :
5-10 working days
Packaging Details :
Paper box with Tray
Inserion Loss: :
<0.2dB
Jacket color: :
Black or Grey
IP Protection Class: :
IP68
Fiber Type: :
G652D/G657A
Cable Structure: :
Outdoor FTTH Drop Cable/Round Cable/Flat Drop Cable
Use: :
FTTA
Return Loss: :
>55dB
Jacket Material: :
HDPE or LSZH
Description

IP67 Waterproof RRU/RRH CPRI Mini SC/APC OptiTap Filed Cable Connector Patch Cord Pigtail

Description

Compatible with CPRI ODVA Fullaxs PDLC NSN cable waterproof IP67 Connector Outdoor FTTA patch cord pigtail provide easy FTTx (Fiber-To-

The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible

with existing wedge (P) clamps.The Ruggedized Connector, is compatible with industry standard OSP terminals.

Features:

1. Provides superior weather resistance for FTTA and other outdoor applications
2. Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
3. Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
4. Can be installs without special tooling
5. Threaded style coupling
6. Provides bend protection for installation and long term use
7. Faster network roll out and customer installations
8. 100% tested assemblies built in a controlled environment
9. Lower cost deployment by utilizing plug and play solutions
10.Custom built solutions with quick turnaround times
Application

1. Fiber optic communications in harsh outdoor environments.

2. Outdoor communication equipment connection.

3. Waterproof Fiber Equipment.

4. Remote wireless Base Station.

5. FTTx ISP Project.

Technique Parameter
Items
SM-UPC
SM-APC
MM-UPC
Typical
MAX
Typical
MAX
Typical
MAX
Insertion loss
≤0.1
≤0.3dB
≤0.15
≤0.3dB
≤0.05
≤0.3dB
Return loss
≥50dB
≥60dB
≥30dB
Durability
1000 mating cycles
Working temperature
-40 to + 85℃
