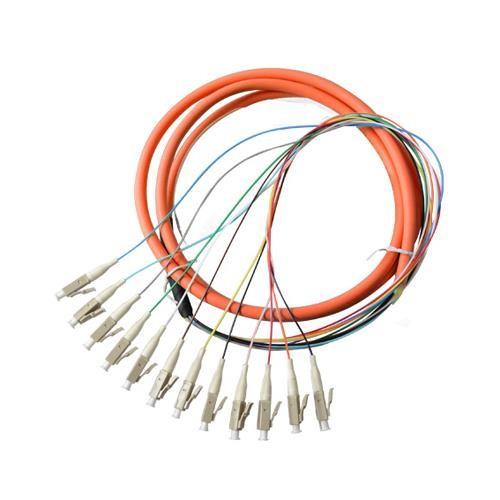

G657A UPC 12core Fiber Optic Breakout Pigtail MPO Connector
G657A UPC 12core Fiber Optic Breakout Pigtail MPO Connector
G657A UPC 12core Fiber Optic Breakout Pigtail MPO Connector
G657A UPC 12core Fiber Optic Breakout Pigtail MPO Connector
Specifications
Brand Name :
ZXOFC
Model Number :
GJFJV
Certification :
CE ROSH ISO9001
Place of Origin :
ShenZhen,China
MOQ :
10 pcs Length customized
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 KM per month
Delivery Time :
5-10 working days
Packaging Details :
Paper box with Tray
Connector type: :
FC SC LC ST MU MTRJ MPO
Color: :
Yellow
Shield: :
Polyester Tape
End-face: :
PC APC UPC
Jacket: :
LSZH
Fiber type :
G652D,G657A,OM1,OM2,OM3,OM4,OM5
Description

Multi-Core Patch Cord 12Core Pigtail Break-Out Pigtail Fan-Out Patch Cord

Description

- Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
- Ferrule End-face: PC, UPC, APC
- Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
- Cable Quantity: Simplex, duplex or customized
- Cable Diameter: 3.0mm, 2.0mm, 0.9mm
- Cable Length: 1, 2, 3 meter or customized
- Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

Feature
-Ceramic Ferrule;
- High return loss;
- Low insertion loss;
-Good repeat-ability and and ex-changeability;
- Excellent Polished and 100% tested;
-Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.

Application
-Local Area Network (LAN)
-Data communication network
-Telecommunication optical transmission network
-Optical access network(OAN)
-Active device termination
-Fiber optics data transmission(FODT)
-Test Equipment
-CATV

Technique Parameter

ter Unit FC, SC, LC ST, MU MT-RJ, MPO
SM MM SM MM SM
PC UPC APC PC PC UPC PC PC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.3 ≤0.2 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2
Operating temperature ℃ -40~75 -40~75 -40~75
Storage temperature ℃ -45~85 -45~85 -45~85
Cable diameter mm φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9

G657A UPC 12core Fiber Optic Breakout Pigtail MPO Connector

G657A UPC 12core Fiber Optic Breakout Pigtail MPO ConnectorG657A UPC 12core Fiber Optic Breakout Pigtail MPO ConnectorG657A UPC 12core Fiber Optic Breakout Pigtail MPO ConnectorG657A UPC 12core Fiber Optic Breakout Pigtail MPO ConnectorG657A UPC 12core Fiber Optic Breakout Pigtail MPO Connector
