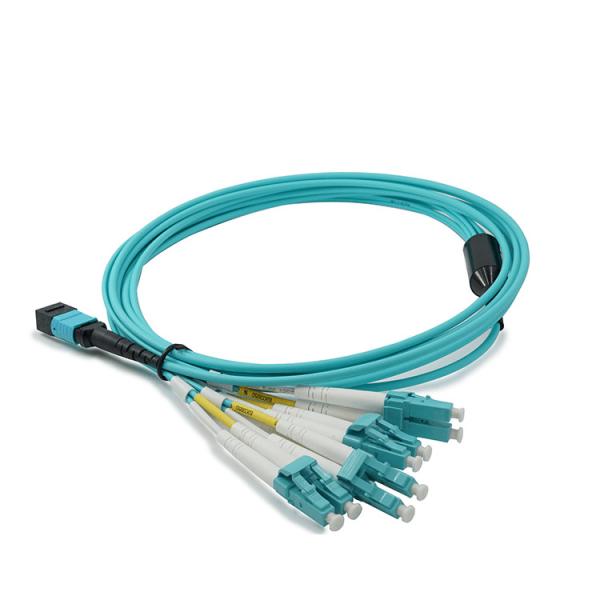

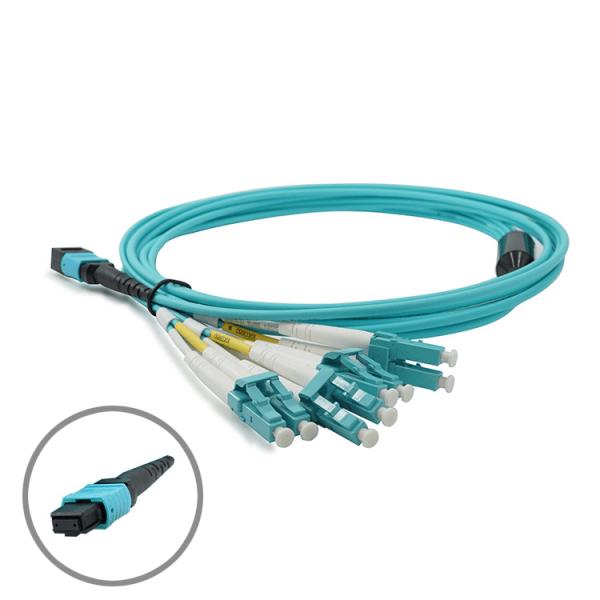

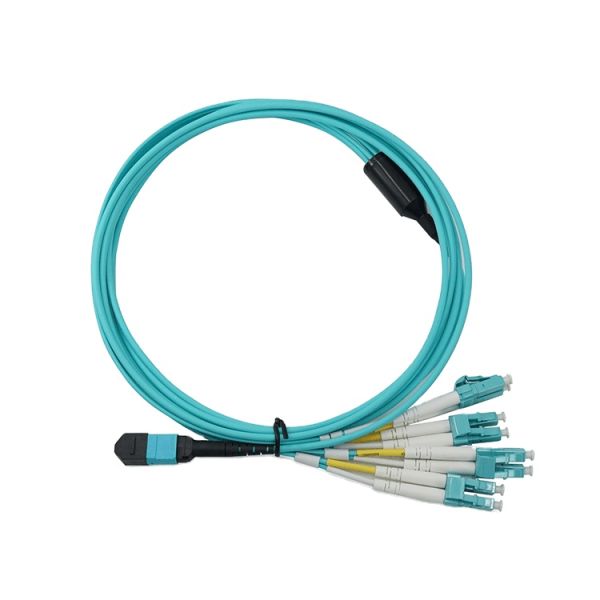

Duplex LC Connector FTTX 5m MPO Breakout Patch Cord LSZH
Duplex LC Connector FTTX 5m MPO Breakout Patch Cord LSZH
Duplex LC Connector FTTX 5m MPO Breakout Patch Cord LSZH
Duplex LC Connector FTTX 5m MPO Breakout Patch Cord LSZH
Duplex LC Connector FTTX 5m MPO Breakout Patch Cord LSZH
Duplex LC Connector FTTX 5m MPO Breakout Patch Cord LSZH
Duplex LC Connector FTTX 5m MPO Breakout Patch Cord LSZH
Duplex LC Connector FTTX 5m MPO Breakout Patch Cord LSZH
Duplex LC Connector FTTX 5m MPO Breakout Patch Cord LSZH
Duplex LC Connector FTTX 5m MPO Breakout Patch Cord LSZH
Specifications
Brand Name :
ZXOFC
Model Number :
MPO Patch Cord
Certification :
CE ROSH ISO9001
Place of Origin :
ShenZhen,China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000 KM per month
Delivery Time :
5-10 working days
Packaging Details :
Paper box with Tray
Polish: :
PC/APC
Fiber Type: :
OM3 multimode
Color: :
Aqua
Application: :
FTTX
Connector: :
MPO-LC
Fiber core: :
8
Cable diameter: :
2.0 mm
Outer material: :
LSZH
Description

MPO Break-Out Fiber Patch Cord Duplex LC Connector Fiber Break Out Cable 5m Length Customized

Description

The MPO / MTP patch cords are MULTI -fiber patch cords using the MPO / MTP connector in fiber counts of 8, 12 or 24. They are available in different cable structures and customized lengths tailored to your exact needs.

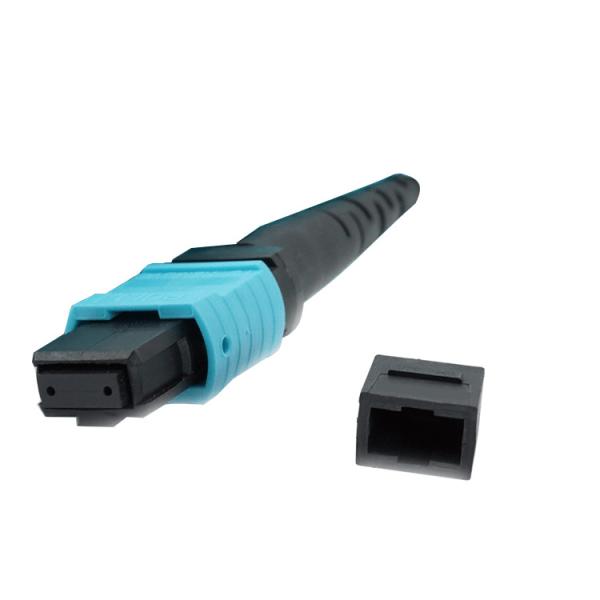

MPO / MTP connector interface patch cord

Features

Choices of different cable structure to cater for different installation needs
Available in SM (9/125), MM (50 or 62.5/125), 10Gig fiber types
Available in 8/12/24 -fiber
Corning fiber is available for selection

High precision guide pins for exact alignment.

Technique Parameter

Type
Single Mode
Single Mode
Multi Mode
(APC Polish)
(UPC Polish)
(PC Polish)
Fiber Count
8,12,24 etc.
8,12,24 etc.
8,12,24 etc.
Fiber Type
G652D,G657A1 etc.
G652D,G657A1 etc.
OM1,OM2,OM3 etc.


Maximum Insertion Loss
Elite


Standard
Elite


Standard
Elite


Standard
Low Loss
Low Loss
Low Loss
≤0.35 dB
≤0.75dB
≤0.35 dB
≤0.75dB
≤0.35 dB
≤0.60dB
Return Loss
≥60 dB
≥60 dB
NA
Durability
≥500 times
≥500 times
≥500 times
Operating Temperature


-40℃ ~ +80℃


-40℃ ~ +80℃


-40℃ ~ +80℃
Test Wavelength
1310nm
1310nm
1310nm

Feature
Application
1.Push-pull latching
1.For installation in closet area or horizontal patch extension from consolidation point to the workstation outlets

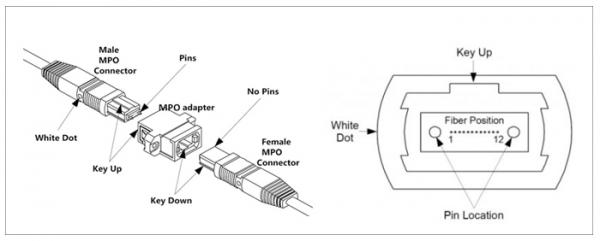

2.Alignment achieved with high precision guide pins
2.MPO/MTP assembled with Round mini cable or
jacketed ribbon cable,transition through a round fan outkit with 2.0mm DX legs
3.MTP connector compatible
3.Fiber counts available in 24-fibers
4.Ruggedized round cable, oval cable and bare ribbon options available

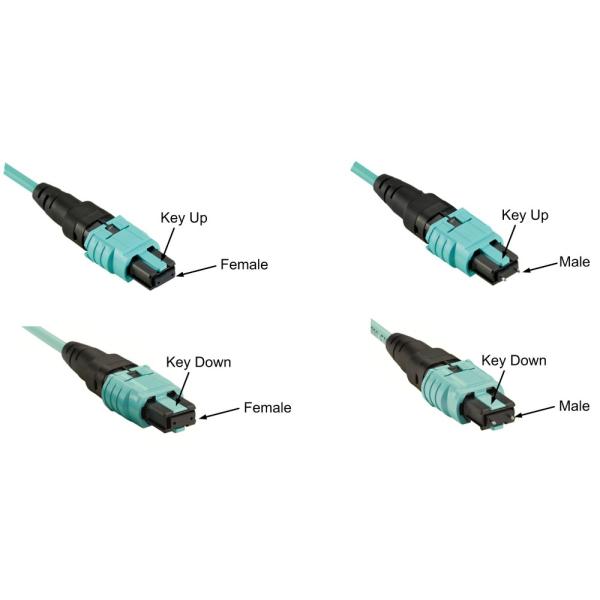

4.MPO/MTP in 24-fiber interface in Male or Female
5.Color coded housings available to differentiate fiber type, polish type and/or
connector grade
5.Customized furcation length to cater for different installation needs
6. meet the ROHS requirements
