Outdoor GYFXTY 12core G652D Non Metallic Optic Cable
Outdoor GYFXTY 12core G652D Non Metallic Optic Cable
Outdoor GYFXTY 12core G652D Non Metallic Optic Cable
Outdoor GYFXTY 12core G652D Non Metallic Optic Cable
Outdoor GYFXTY 12core G652D Non Metallic Optic Cable
Outdoor GYFXTY 12core G652D Non Metallic Optic Cable
Outdoor GYFXTY 12core G652D Non Metallic Optic Cable
Outdoor GYFXTY 12core G652D Non Metallic Optic Cable
Outdoor GYFXTY 12core G652D Non Metallic Optic Cable
Outdoor GYFXTY 12core G652D Non Metallic Optic Cable
Outdoor GYFXTY 12core G652D Non Metallic Optic Cable
Outdoor GYFXTY 12core G652D Non Metallic Optic Cable
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYFXTY
Certification :
CE ISO9001
Place of Origin :
ShenZhen,China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 KM per month
Delivery Time :
5-10 working days
Packaging Details :
wooden drum
Model number :
GYFXTY
Fiber count :
2-24 core
Jacket material :
TPU
Fiber type :
G652D or G657A1
Strength member :
Aramid yarn
Package :
Standard Wooden drum
Description

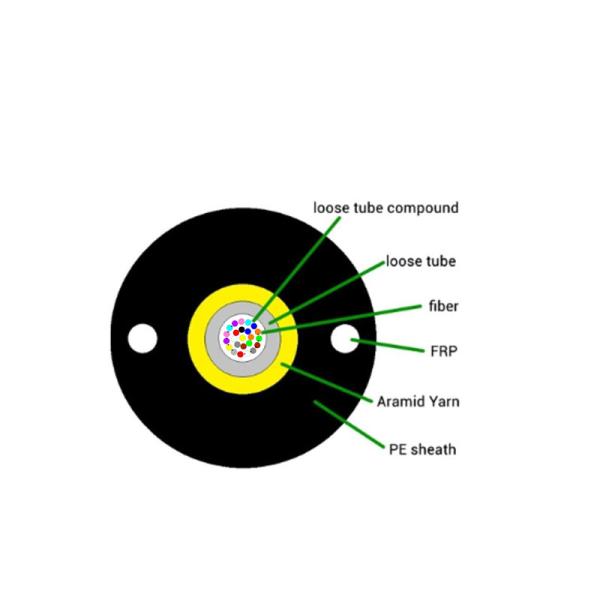

Outdoor GYFXTY 12 Core Single Mode G652D Fiber Optic Cable

Description

Outdoor drop cable having FRP rods as strength members and containing 4/6/12/24 fiber in full compliance with ITU-T G.652D or

G.657A1. The offered cables are fully compliant to the relevant IEC specifications.

Feature

* 4/6/8/12/24 enhanced low water peak single mode fibers in full compliance with ITU-T-G.652D/G.657A1
* two all dielectric strength members (FRP)
* loose buffer tube fully filled and centrally placed in the cable
* UV stablized HDPE outer sheath, black

Technique parameter

1 Fiber Type
Single mode fiber
9/125 (G.652D or G.657A1)
Fibre used in the cable manufacturing fully comply to ITU-T-Rec G.652D or G.657A1
Attenuation
at 1310 nm
≤0,38 dB/km
at 1550 nm
≤0,25 dB/km
2 Fibre Colour Coding
Color of fibers in a tube
blue, orange, green, brown, slate, white, red, black, yellow, violet, rose & aqua
Colour of loose tube
natural
Other fiber color sequences available on request.
3 Water blocking Yarn
Type
SZS-15.0 ×4 Root
Color
White
4 Sub Unit - Loose Tube
Materials
PBT - polybutylene terephthalate
Color
White
Diameter
2.1±0.05mm
Number
1 Root
5 Strength Member
Materials
FRP - Glass fiber reinforced plastic rods
Color
White
Diameter
1.0±0.05mm
Number
2 Root
6 Outer Sheath
Materials
PE - Polyethylene
Color
Black
Diameter
6.5 ±0.2 mm
Thickness
0.9±0.1 mm

Packing

Outdoor GYFXTY 12core G652D Non Metallic Optic Cable
