Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable
Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable
Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable
Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable
Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable
Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable
Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable
Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable
Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable
Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GJYXFCH
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
5KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Application :
FTTH,outdoor,indoor,pigtail, jumper
Fiber type :
G652D,G657A1,G657A2,OM1,OM2,OM3,OM4
Model number :
GJYXFCH,GJXH
Strength member: :
FRP or Steel wire
Color: :
Black or White
Operating temperature: :
-40~+70
Fiber count: :
2 Core, 1 Core, 4 Core
Jacket Material: :
LSZH
Description

Fiber Drop Cable Outdoor 1 2 4 Core G652 G657A1 G657A2 Ftth Single Mode Fibra Optica Wire Sc G657 Lszh Drop Cable

Description

The type of fiber optic cable puts optical fiber in the central with two parallel strength member at the two sides. The cable is completed with a black color LSZH or PVC sheath. Its pecial groove design makes it is easily to strip and splice, simplified installation and maintenance.

The indoor fiber construction comprises of 1,2,4 cores optical fibers, 2 parallel FRP (Fiber Reinforced Plastic) strength member and LSZH Jacket. Outdoor FTTH cable construction is similar to the indoor cable, except the cable has a supporting wire for aerial installation.

FTTH Drop Cable is used in high speed and broadband telecommunication applications. It is suitable for both indoor and outdoor applications.

Features

* Used as access building cable.

* Jacket: LSZH or PVC

* Steel wire used for self-supporting

* FTTH cable, 1, 2, 4 cores
* Soft and flexible, good bending performance
* Excellent tensile and crush performance
* Optical fiber cores are positioned in the center, two strength member are placed at the two sides.
* Strength member: steel wire, FRP or KFRP
* Used in indoor cabling, and end users directly cabling;

(Item)
(Parameters)
Fiber
Color
All colors display
Number of cores
4
Strength member
Material
FRP
Messenger wire
Material
Phosphating steel wire
Outer jacket
Material
LSZH(Oxygen index≥26%)
Color
Black
Cable diameter (Rip off the messenger wire) (mm)
2.0±0.2*4.0±0.2
Static
15mm
Min. bending radius(Rip off the messenger wire)
Dynamic
30mm
Tensile performance
Short term
600N
Crush
Short term
2200N/100mm

Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop CableSingle Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable

Package Information

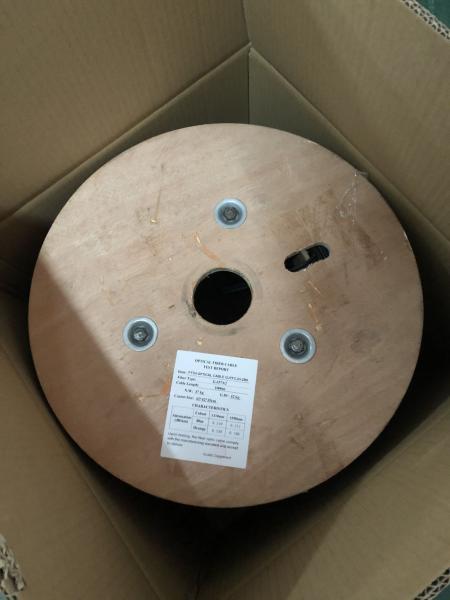

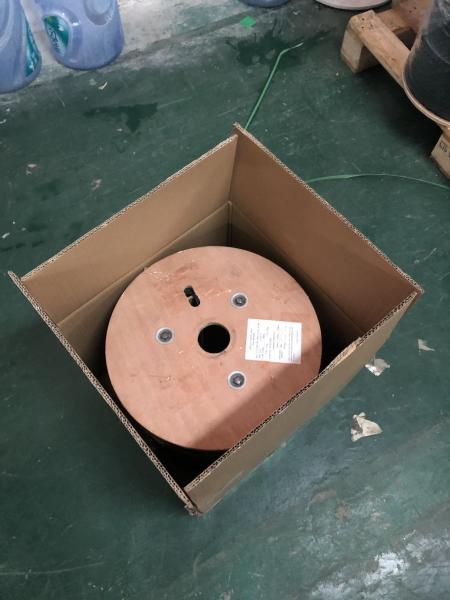

1, The exterior self supporting drop fiber optic cable is packed 2KM/Wooden drum, each drum packed in a standard paper carton size at 41*41*36cm. each carton gross weight is 30~40kgs.

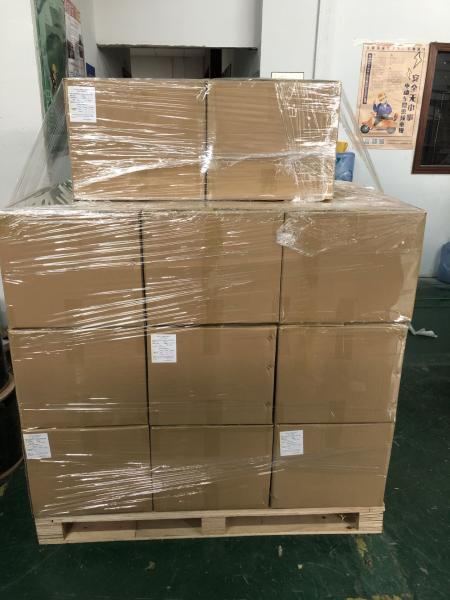

2, or, the The exterior self supporting drop fiber optic cable is packed in wooden drum and pack directly in the pallet.

Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable

Certificate

Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable

Our services
Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable
Our Certificate
Package and delivery
Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable
Single Mode G652 G657A1 G657A2 Sc LSZH FTTH Drop Cable
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)
