GYTS Steel Tape Armored Fiber Optic Cable 4 Core 3000m
GYTS Steel Tape Armored Fiber Optic Cable 4 Core 3000m
GYTS Steel Tape Armored Fiber Optic Cable 4 Core 3000m
GYTS Steel Tape Armored Fiber Optic Cable 4 Core 3000m
GYTS Steel Tape Armored Fiber Optic Cable 4 Core 3000m
GYTS Steel Tape Armored Fiber Optic Cable 4 Core 3000m
GYTS Steel Tape Armored Fiber Optic Cable 4 Core 3000m
GYTS Steel Tape Armored Fiber Optic Cable 4 Core 3000m
Specifications
Brand Name :
YUANTONG
Model Number :
GYTS
Certification :
ISO
Place of Origin :
China
MOQ :
20km
Supply Ability :
1000km
Packaging Details :
Drum
Color :
Black
Jacket Color :
white ,black or customization
Bending Radius :
Static: 20D, Dynamic: 10D
Model :
GYTA
Optical Cable Length :
3000m/drum
Number Of Conductors :
4
Operating Temperature :
-20°C To +60°C
Water Blocking System :
Filling Compound
Flame Retardant :
IEC 60332-3-24
Transport Package :
Wood Drum
Application :
Long Distance Communication and LAN
Allowed Tensile Strength :
>10000N
Type :
Fiber Optic Cable
Uv Resistance :
Yes
Installation Temperature :
-10°C to +50°C
Description
Product Description

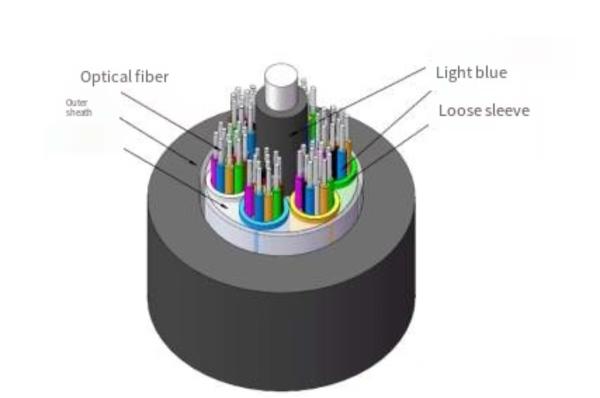

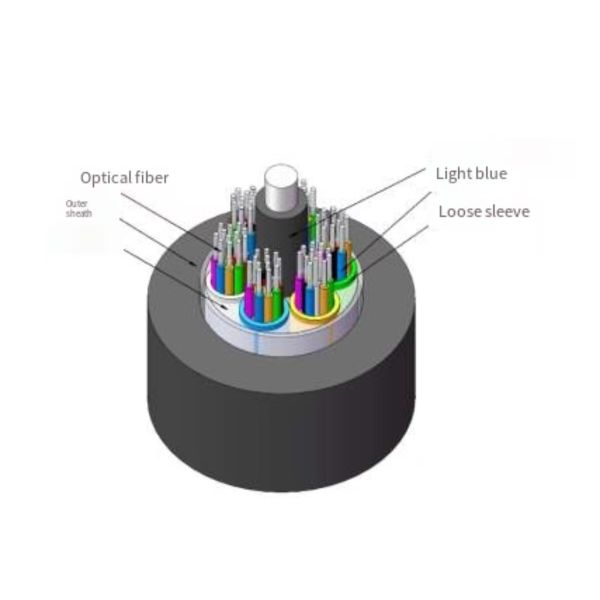

The structure of the optical cable is to insert single-mode or multi-mode optical fibers into a loose tube made of high modulus plastic filled with waterproof compound. The center of the cable core is a metal reinforcing component. For some optical cables with certain core numbers, a polyethylene pad layer is extruded outside the metal central reinforcing component. Loose tubes (and filling ropes) are twisted around the central reinforcing member to form a compact and round cable core. The gaps inside the cable core are filled with water-blocking compound, and a steel-polyethylene bonded sheath is extruded outside to form the cable.

GYTS Steel Tape Armored Fiber Optic Cable 4 Core 3000m
Laying methods

Pipeline, non-self-supporting overhead, etc.

GYTS Steel Tape Armored Fiber Optic Cable 4 Core 3000m
Application scope

Suitable for long-distance communication and inter-office communication, etc.

Execution standard

YD/T 901-2018 Outdoor optical cable for stranded communication.

Product features
  1. The reasonable design and precise control of the excess length of the optical fiber in the loose tube and the cabling method endow the optical cable with excellent mechanical and environmental performance;
  2. The outside of the reinforcing parts and the inside of the cable core are filled with water-blocking cable paste, ensuring the moisture-proof and water-blocking effects of the optical cable.
  3. The optical cable has excellent flexibility and resistance to bending.
  4. The steel tape longitudinally wrapped around the cable core makes the optical cable have a better moisture-proof effect, and at the same time, it has certain compressive resistance and the ability to prevent damage from rodents.
Technical parameters (typical values)
Model Cors Outer diameter /mm Stretching /N Flatten N/100mm Minimum bending radius /mm Optical fiber attenuation dB/KM Applicable temperature /℃ Weight kg/KM
Long-term Short-term Long-term Short-term "Dynamic" Static 1310nm 1550nm
GYTS 2-30 8.4 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40～+60 75
GYTS 32-36 8.7 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40～+60 88
GYTS 38-60 9.2 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40～+60 91
GYTS 62-72 9.8 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40～+60 113
GYTS 74-96 11.3 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40～+60 138
GYTS 98-120 12.6 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40～+60 165
GYTS 122-144 13.8 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40～+60 193
