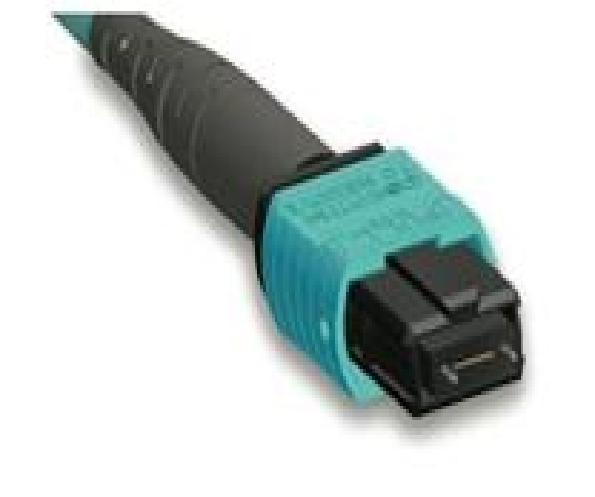

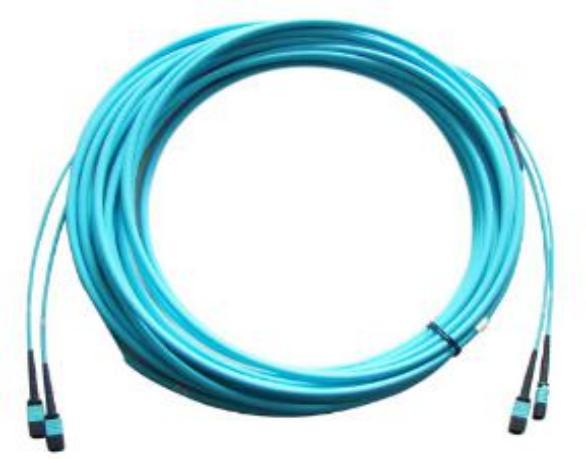

MPO/MTP Backbone Optical Cable for Data Centers
MPO/MTP Backbone Optical Cable for Data Centers
MPO/MTP Backbone Optical Cable for Data Centers
MPO/MTP Backbone Optical Cable for Data Centers
Specifications
Brand Name :
YUANTONG
Model Number :
MPO/MTP
MOQ :
100article
Payment Terms :
T/T,L/C
Packaging Details :
box
Description

MPO/MTP connectors feature multi-core and multi-channel characteristics and are typically used for high-speed transmission. MPO/MTP backbone optical cables are mainly used in data centers for the connection between module boxes and cable frames. It is also frequently used to connect active devices and to connect QSFP, SFP and other optical transceiver modules in the backbone network cabling of data centers.

Product features
  • high density
  • low loss
  • MPO/MTP connector
MPO/MTP Backbone Optical Cable for Data Centers
Application
  • Data center infrastructure
  • Connect high-density module boxes or optical modules
  • large core count high-density card connection
  • The end face connection of convertible optical transmission
MPO/MTP Backbone Optical Cable for Data Centers
Technical parameters
Type of optical fiber OS2/G657A/OM3/OM4
Connector type Model Wavelength End face Standard type Low-loss type
MPO/MTP Multimode @850/1300 12F/PC ≦0.50dB NA ≦0.35dB NA
24F/PC ≦0.50dB NA ≦0.35dB NA
Single mode @1310/1550 12F/PC ≦0.50dB >60dB ≦0.35dB >60dB
24F/PC ≦0.70dB >60dB ≦0.50dB >60dB
Optical cable type Fiber, flat cable or round cable
Attenuation @850nm≦3.5dB,@1300nm≦1.5dB
@1310nm≦0.4dB,@1550nm≦0.3dB
Temperature Operating temperature-20℃~70℃
Storage temperature-40℃~85℃
Meet the standards GR-1435-CORE,IEC-61754-7,TIA-604-5(FOCIS5),ROHS
Ordering Guide
Connection head A A Attribute Connection head B B Attribute Type of optical fiber core Polarity Outer skin color Outer skin type Length
MPO/MTP Female head/Male head MPO/MTP Female head/ Male head OS2/G657 A/OM3/OM 4 8/12 /24/ 48 A/B/ C Single mode: yellow /OM3:green blue /OM4:Light blue LSZH/OFN R/OFNP Customer Customized
MPO/MTP Low loss MPO/MTP Low loss
Note: Among the above multiple product information options, only one can be selected for information confirmation.
