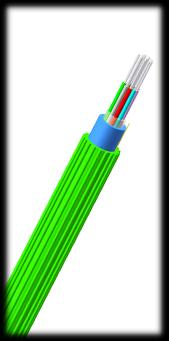

HDPE Sheath Air Blown Micro Cable 2000m Blowing Distance
HDPE Sheath Air Blown Micro Cable 2000m Blowing Distance
HDPE Sheath Air Blown Micro Cable 2000m Blowing Distance
HDPE Sheath Air Blown Micro Cable 2000m Blowing Distance
HDPE Sheath Air Blown Micro Cable 2000m Blowing Distance
HDPE Sheath Air Blown Micro Cable 2000m Blowing Distance
Specifications
Brand Name :
YTTX
Model Number :
GYCNXY mini
Certification :
ISO9001 14001 45001
Place of Origin :
China
MOQ :
20KM
Payment Terms :
T/T
Packaging Details :
Wooden plate
Transport Package :
Wooden Drum
Strength Member :
Aramid yarn
Fiber Type :
Single-mode or Multimode
Cable Type :
Micro Cable
Cable Sheath :
HDPE
Sheath Color :
Orange
Jacket :
PA
Outer Sheath :
PA12
Application :
Indoor and Outdoor
Armored Type :
NONE
Bending Radius :
10-20 times of cable diameter
Loose Tube :
PBT
Fiber :
200um G657A1
Microduct :
HDPE 14/12mm
Blowing Distance :
2000 meter
Description
Product Description

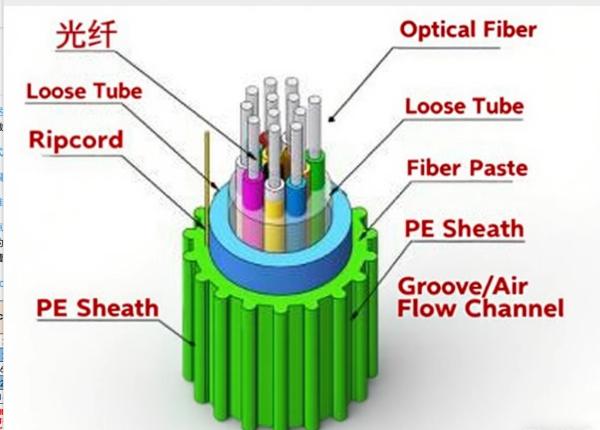

Outdoor air blown optical cable for communication without reinforced components, central bundle tube type, high-density polyethylene sheath. The structure of the optical cable is to embed single-mode or multi-mode optical fibers into a high modulus plastic filled waterproof compound loose tube, place the loose tube in the center position, embed a tear rope, and extrude the high-density polyethylene sheath to form the cable.

Laying Method

Pipeline air blowing laying, etc.

Scope of Application

Suitable for long-distance communication and inter office communication, etc.

Implementation Standard

YD/T 1460.4-2019 Air blown miniature optical cables and fiber units for communication: miniature optical cables.

Product Features
  1. Reasonable design and precise control of the excess length of optical fibers in the loose tube, making the optical cable have excellent mechanical and environmental performance
  2. Structural optimization design with optimal fiber capacity
  3. Unique process control to prevent wrinkling and peeling of the protective sheath during air blowing
  4. High density polyethylene outer sheath to increase air blowing distance
  5. The unique groove design on the surface of the sheath can serve as an airflow channel to enhance the blowing performance
  6. Lightweight, small outer diameter, excellent bending performance, and a designed lifespan of over 25 years for optical cables
