GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable
GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable
GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable
GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable
GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable
GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable
GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable
GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable
Specifications
Brand Name :
YUANTONG
Model Number :
GJXH-2B6A2
Certification :
ISO
Place of Origin :
China
Supply Ability :
500KM/day
Delivery Time :
3-4 work days
Packaging Details :
Packed in cartons and pallets
Installation Method :
Indoor
Reinforcing parts :
Phosphated steel wire 0.42
Minimum bending radius :
Dynamic 30mm Static 15mm
Optical cable size :
2.0mm*3.0mm
Optical cable length :
1000m
Optical cable color :
Black
Fiber Color :
blue orange
Shape :
Bow Shape
Packing :
drum with carton
Crush Resistance :
500N/100mm
Optical cable sheath :
LSZH/pvc
Description

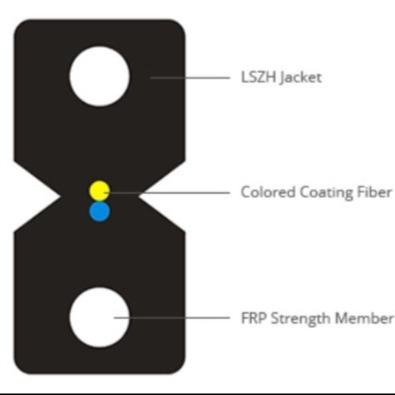

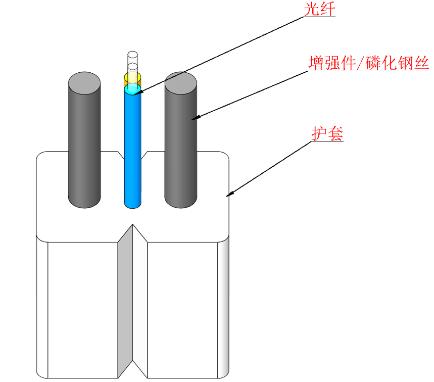

Product Description:GJXH-2B6a2 Metal reinforcing components, LSZH outer sheath, butterfly-shaped introduction optical cable.

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable

Laying method:Indoor wiring, etc.

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable

Application scope: Suitable for FTTX system wiring, as well as prefabricated pigtails, etc.

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop CableGJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable

Execution standard: YD/T 1997-2022 Butterfly-shaped introduction Optical cable for Access networks.

Product features:

① Special flexible optical fibers provide large bandwidth and excellent communication transmission characteristics;

② Two parallel FRP or steel wires have excellent compressive resistance, protecting the optical fiber.

③ The unique groove design makes it easy to separate, convenient to join, and simplifies installation and maintenance.

④ Small outer diameter, light weight, simple structure, strong practicality and affordable price;

⑤ Most sheath materials adopt low smoke zero halogen (LSZH) flame-retardant outer sheaths, with smooth outer skins that are environmentally friendly and odorless.

⑥ Butterfly-shaped introduction optical cables are the best choice for the wiring optical cables of FTTX fiber-to-the-home systems.

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable

Technical parameters:

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable
