GYTA04 Outdoor Fiber Optic Cable with Aluminium PE Sheath and Anti-Termite Anti-Rodent
GYTA04 Outdoor Fiber Optic Cable with Aluminium PE Sheath and Anti-Termite Anti-Rodent
GYTA04 Outdoor Fiber Optic Cable with Aluminium PE Sheath and Anti-Termite Anti-Rodent
GYTA04 Outdoor Fiber Optic Cable with Aluminium PE Sheath and Anti-Termite Anti-Rodent
Specifications
Brand Name :
YUANTONG
Model Number :
GYTA04
Certification :
ISO,ANATEL,ROSH,TLC,CCC
Place of Origin :
China
MOQ :
1km
Price :
negotiated
Payment Terms :
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability :
1000km per week
Delivery Time :
within 7 working days
Packaging Details :
wooden drum plus carton box
Product Name :
Anti-Termite and Anti-Rodent fiber optic cable
Fiber Options :
G652D
Fiber Count :
2-144 fiber
Cable Structure :
PBT Loose Tube
Strength Member :
Steel wire
Out Sheath :
Aluminium PE Sheath
Cable Color :
Black or customized
Application :
Overhead Communication
Description

2-144 Core GYTA04 Anti-termite and Anti-Rodent Outdoor Fiber Optic Cable Steel Wire Strength Member Aluminium PE Sheath

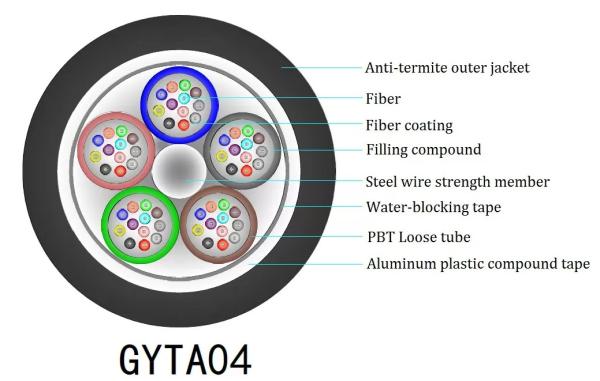

GYTA04 single-armored cables feature stranded loose tube filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.

Application

The Anti-Rodent Cable is suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.

Technical Parameter

Fiber Count Outer Dia.(mm) Tensile Resistance
(N)		 Crush Resistance(N/100m) Mini Bending
Radius(mm)		 Attenuation
(db/KM)		 Operation
Temperature(℃)		 N.W(kg/km)
Long Term Short Term Long Term Short Term Dynamic Static 1310nm 1550nm
2-30 9.3 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40~+65 75
32-36 9.6 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40~+65 85
38-60 9.9 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40~+65 90
62-72 10.7 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40~+65 110
74-84 11.6 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40~+65 125
86-96 12.1 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40~+65 140
98-108 12.9 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40~+65 150
110-120 13.5 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40~+65 165
122-132 13.9 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40~+65 185
134-144 14.7 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40~+65 195


Company Profile
GYTA04 Outdoor Fiber Optic Cable with Aluminium PE Sheath and Anti-Termite Anti-Rodent
GYTA04 Outdoor Fiber Optic Cable with Aluminium PE Sheath and Anti-Termite Anti-Rodent
Company Qualification
GYTA04 Outdoor Fiber Optic Cable with Aluminium PE Sheath and Anti-Termite Anti-Rodent
Exhibition Photos
GYTA04 Outdoor Fiber Optic Cable with Aluminium PE Sheath and Anti-Termite Anti-Rodent
Packaging & Shipping

GYTA04 Outdoor Fiber Optic Cable with Aluminium PE Sheath and Anti-Termite Anti-Rodent

GYTA04 Outdoor Fiber Optic Cable with Aluminium PE Sheath and Anti-Termite Anti-Rodent
FAQ

1. Are you manufacturer or trading company?

We are factory in Chengdu.

2.What is your minimum quantity?

1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?

Yes, we provide sample service.

4.What about Payment?

T/T,L/C,Western Union and PayPal.

5.What's delivery time?

Mass production time needs 1-2 weeks.

6.Can you supply customized productsand logo?

Yes, we supply OEM&ODM service.
Anticipate this as a great start for our collaboration!
