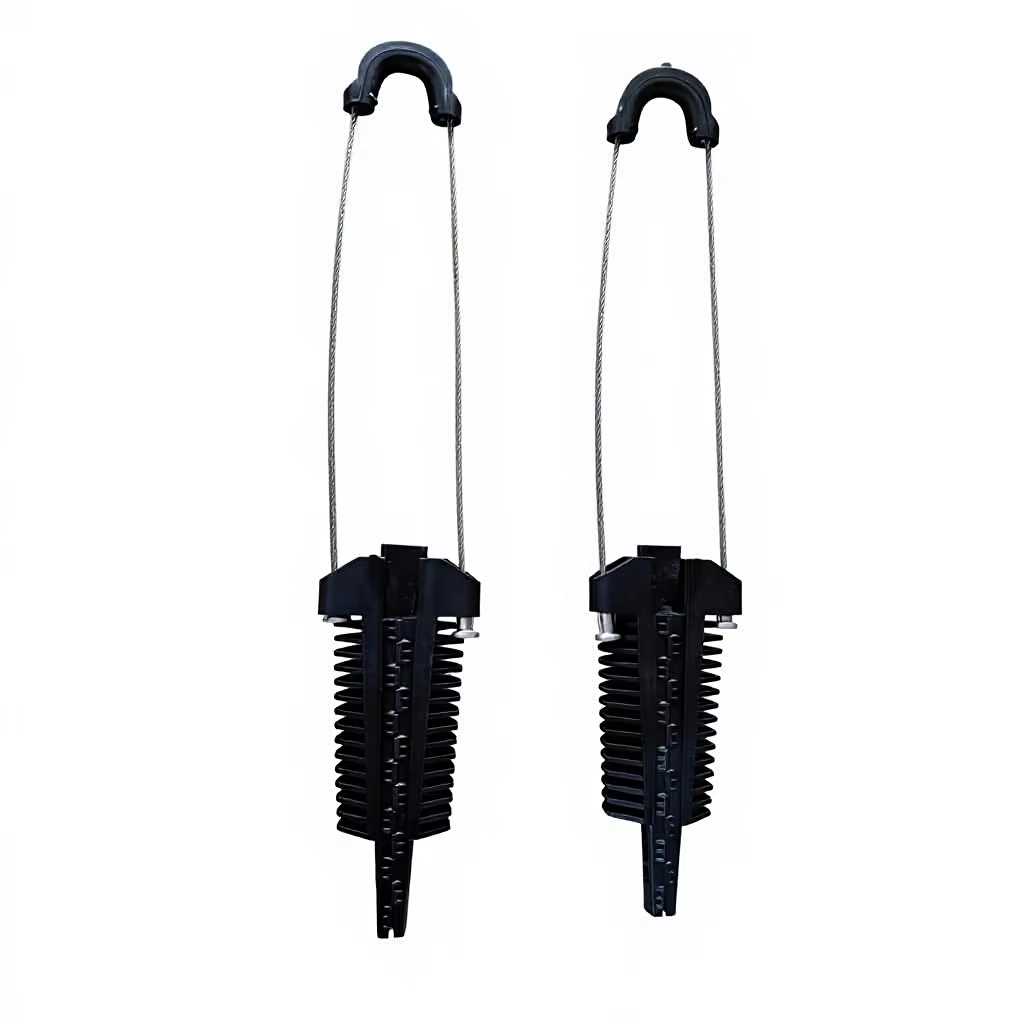

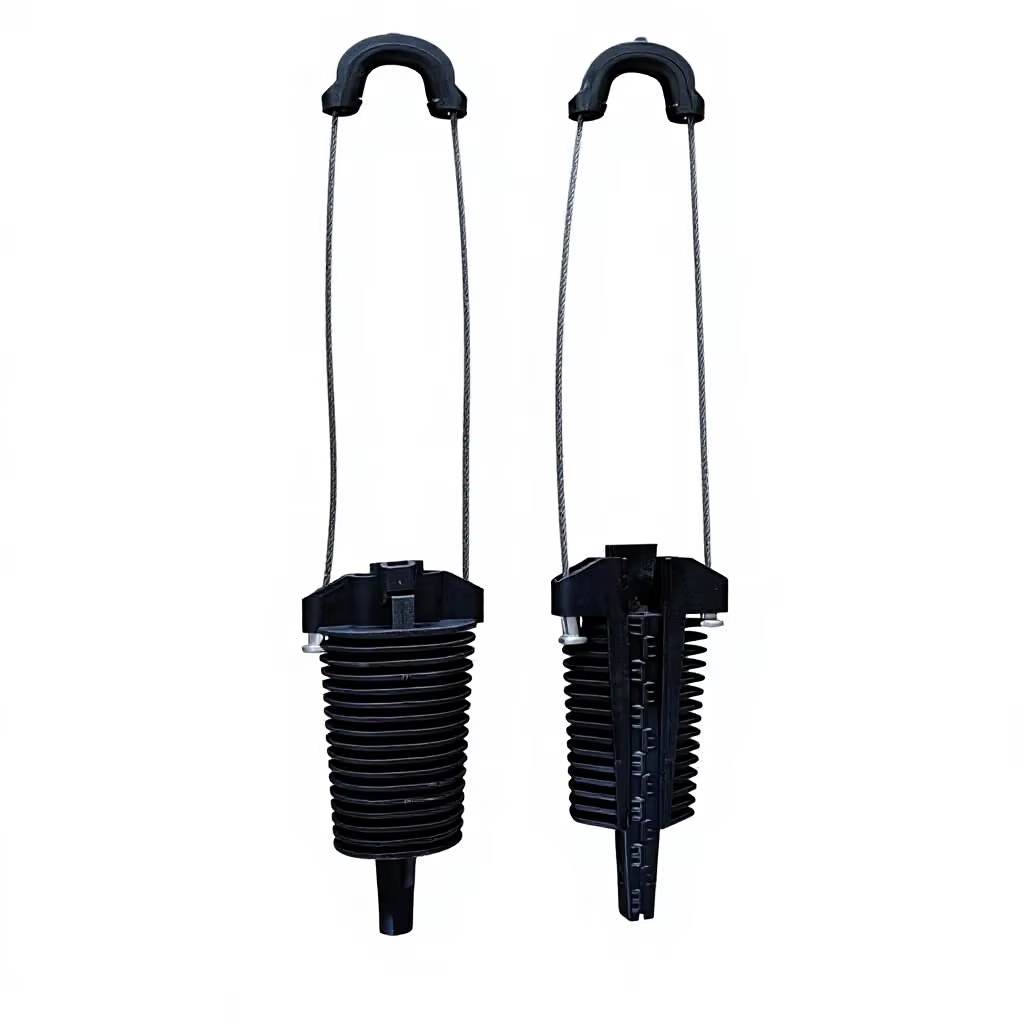

Wedge Type PA66 Nylon Anchor Clamps, Self-locking Cable Anchor Clamp for ABC Cable
Wedge Type PA66 Nylon Anchor Clamps, Self-locking Cable Anchor Clamp for ABC Cable
Wedge Type PA66 Nylon Anchor Clamps, Self-locking Cable Anchor Clamp for ABC Cable
Wedge Type PA66 Nylon Anchor Clamps, Self-locking Cable Anchor Clamp for ABC Cable
Wedge Type PA66 Nylon Anchor Clamps, Self-locking Cable Anchor Clamp for ABC Cable
Wedge Type PA66 Nylon Anchor Clamps, Self-locking Cable Anchor Clamp for ABC Cable
Wedge Type PA66 Nylon Anchor Clamps, Self-locking Cable Anchor Clamp for ABC Cable
Wedge Type PA66 Nylon Anchor Clamps, Self-locking Cable Anchor Clamp for ABC Cable
Specifications
Supply Ability :
5000PCS/Days
Cable Size :
5-9mm
Standard or Nonstandard :
Standard
Sample :
Free sample available
Model Number :
PA450
Status :
New
MOQ :
100PCS
Packaging Details :
carton+woven bag+ Pallet
Customade :
Available
Payment Terms :
L/C, T/T, Western Union
Name :
FTTH Anchoring Clamp
Certification :
ISO 9001:2015
Place of Origin :
China
Delivery Time :
15 days
Breaking Force :
3KN
Brand Name :
Geto Telecom
Span Lenght :
less than 100M
Material :
Nylon+Steel
Description

Introduction

Anchoring, wedge-shaped tension clamp is suitable for round cables with diameter from 5-9 mm of the following types:

for self-supporting aerial cable;
for ADSS cables;
for fiber optic cable;
for ethernet cable;
for network cables;
for round aerial cable;
for electrical cable;
for telecom cables;
for FTTH cables.

We provide the best quality anchoring and wedge-shaped clamps for optical fiber cable suspension in the construction of aerial fiber infrastructure.

Wedge Type PA66 Nylon Anchor Clamps, Self-locking Cable Anchor Clamp for ABC Cable

Wedge Type PA66 Nylon Anchor Clamps, Self-locking Cable Anchor Clamp for ABC Cable

ADSS Cable Clamp Customer benefits:
Simple and fast installation requiring no tools
Efficient cable grip on 230mm length due to its conical wedges design
Suits to all field configurations
Clamp receives cable with zero bend radius constraint
Possible to mount on pole line hardware with open or closed eye and min. Ø 15mm

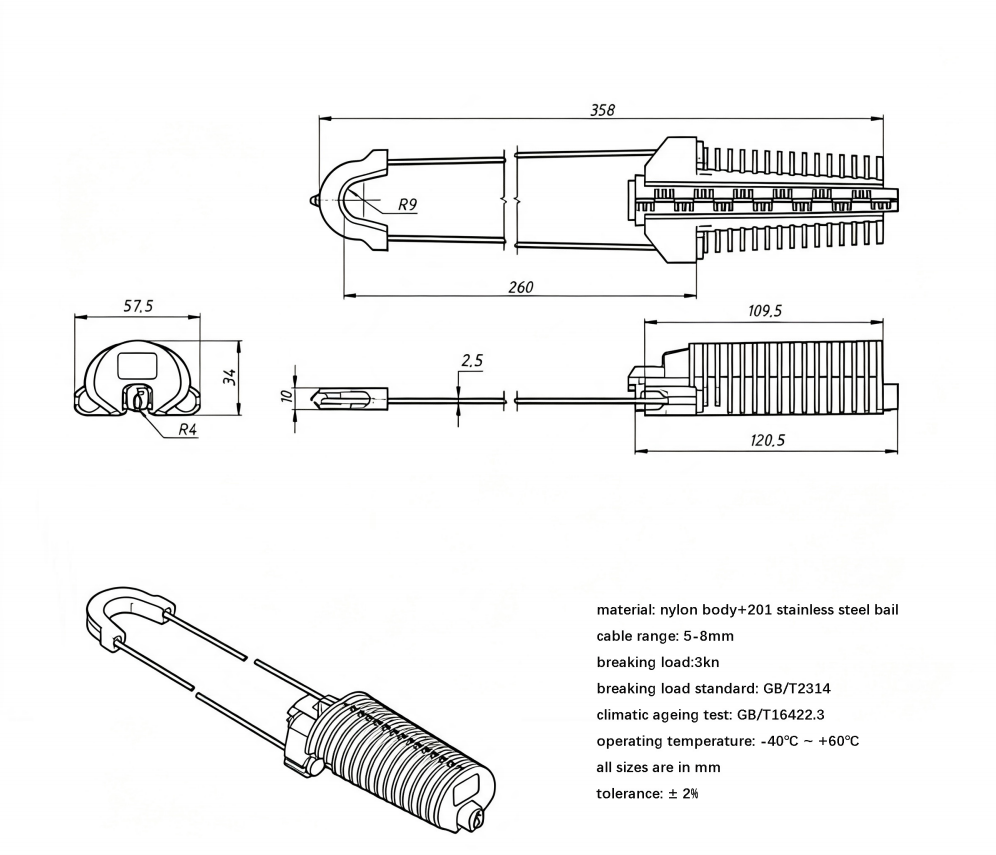

Specification

Wedge Type PA66 Nylon Anchor Clamps, Self-locking Cable Anchor Clamp for ABC Cable

Model Material Available Cable (mm) Breaking Force (kn)
PA450 nylon body+steel bail 5-9 3
PA1500 9-12 10
PA2000 12-16 12

Application

anchor clamp/anchoring clamp can be used in anchoring end pole, jointing pole, intermediate angle pole.

Wedge Type PA66 Nylon Anchor Clamps, Self-locking Cable Anchor Clamp for ABC Cable
