0.438'' Pole Line Hardwares
0.438'' Pole Line Hardwares
Specifications
Brand Name :
Geto Telecom
Model Number :
S1520AGP/S1530AGP
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
100 Sets
Price :
7
Payment Terms :
L/C, T/T
Supply Ability :
100 PCS/Day
Delivery Time :
15 days
Packaging Details :
Carton + Woven Bag + Pallet
Name :
OVERHEAD PRIMARY TAPS
Material :
H.D.G Steel
Application :
A
Weight :
0.245KGS/ 0.33KGS
Standard or Nonstandard :
Standard
Customade :
Available
Status :
New
Range :
Main: 0.414 - 0.128 inch Tap: 0.438 - 0.128
Description

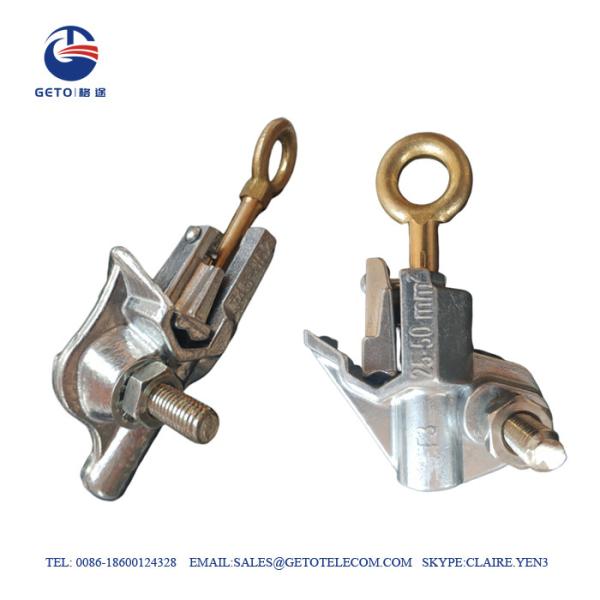

Aluminum Overhead Primary Taps Hot Line Tap Clamps


Overview

ALUMINUM OVERHEAD PRIMARY TAPS are cast with high conductivity aluminum alloy compatible with any aluminum of aluminum covered conductor. An endorsed compression spring on the eye srew thread in clamp run provided vibration resistant connection



Feature

1- Brass and aluminum alloy castings offer high strength, corrosion-resistance and conductor compatibility
2-Extended jaw width means excellent conductor contact, reduced joint temperature, minimal conductor cold flow and reduced twisting of the conductor during installation
3-Spring loaded feature compensates for cold flow and offsets tightening torque vibrations
4-Forged eyebolts provide corrosion free strength and uniformed expansion under loading
5-The side positioned tap connection prevents possible corrosion of conductor or clamp on bimetal connections
0.438'' Pole Line Hardwares

ArticleTap of ConnectorMain Line RangeTap Line RangeRecommended Torque
NoMainTapDiameter InchDiameter InchEyescrewTerminal
S1520APGAlAl0.414-0.1280.438-0.128180 in-lb.180 in.-lb.
S1530APG

Al

AL

0.745-0.1620.547-0.162200 in.-lb.250 in.-lb.

Part NameQtyMaterial
Body1Al-alloy
Keeper1Al-alloy
Tap Eye Bolt1Brass tin plate
Eye Screw1Brass
Spring Washer1Stainless




0.438'' Pole Line Hardwares



Application


0.438'' Pole Line Hardwares





Our service

1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service


Contact us

Email: sales@getotelecom.com
Whatsapp/Tel: 86-18600124328
Web: www.getotelecom.com
